Operation CHARM: Car repair manuals for everyone.
Home >> Jeep Truck >> 2003 >> Wrangler L4-2.4L VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Any PCI BUS Indicator Inoperative

Any PCI BUS Indicator Inoperative

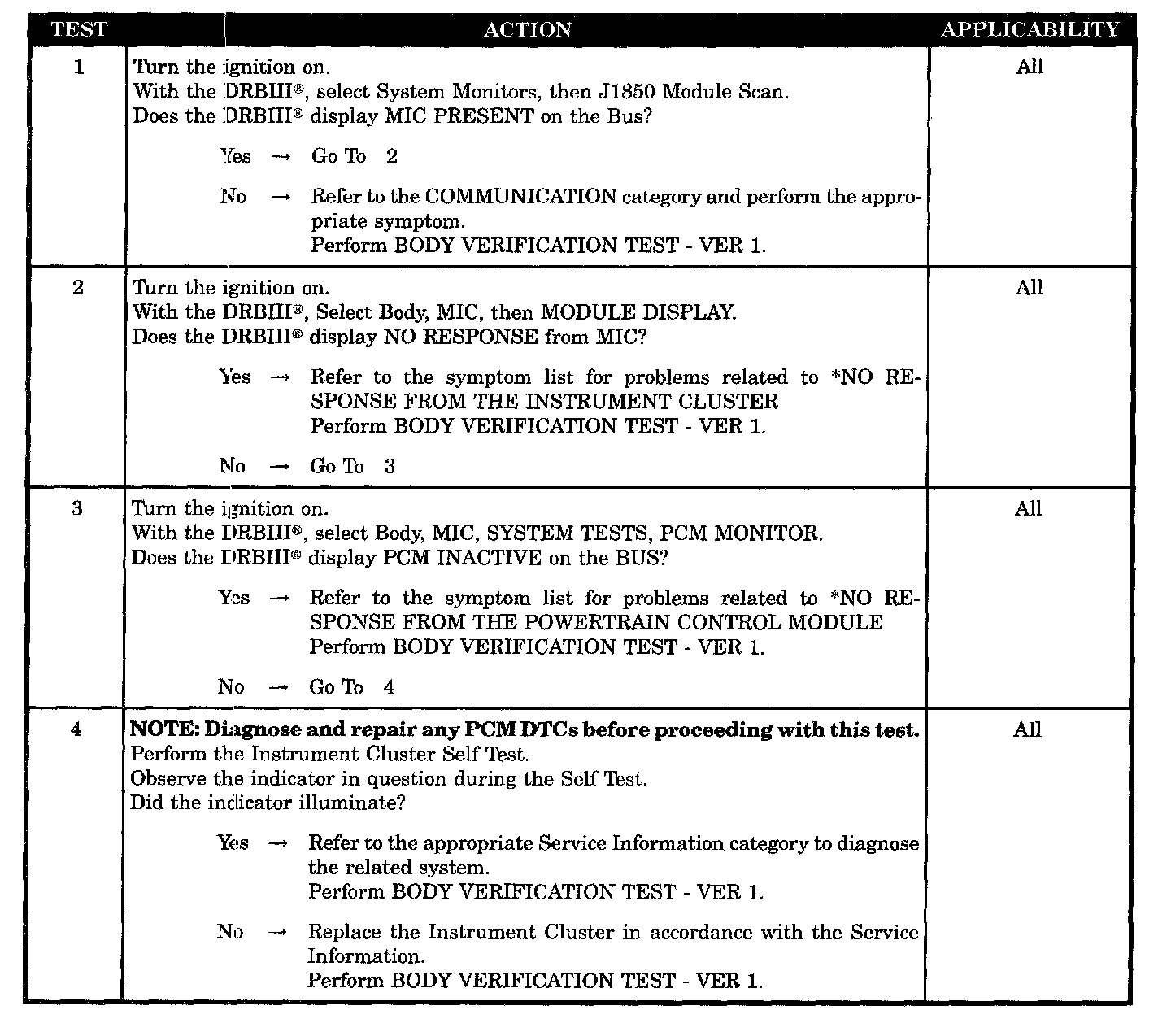

Test 1 - 4:






SYMPTOM
ANY PCI BUS INDICATOR INOPERATIVE

POSSIBLE CAUSES
- No response - PCI bus
- No response - instrument cluster
- No response - Powertrain Control Module
- Inoperative indicator
- Instrument cluster
