Brake Warning Indicator Always On
Brake Warning Indicator Always On

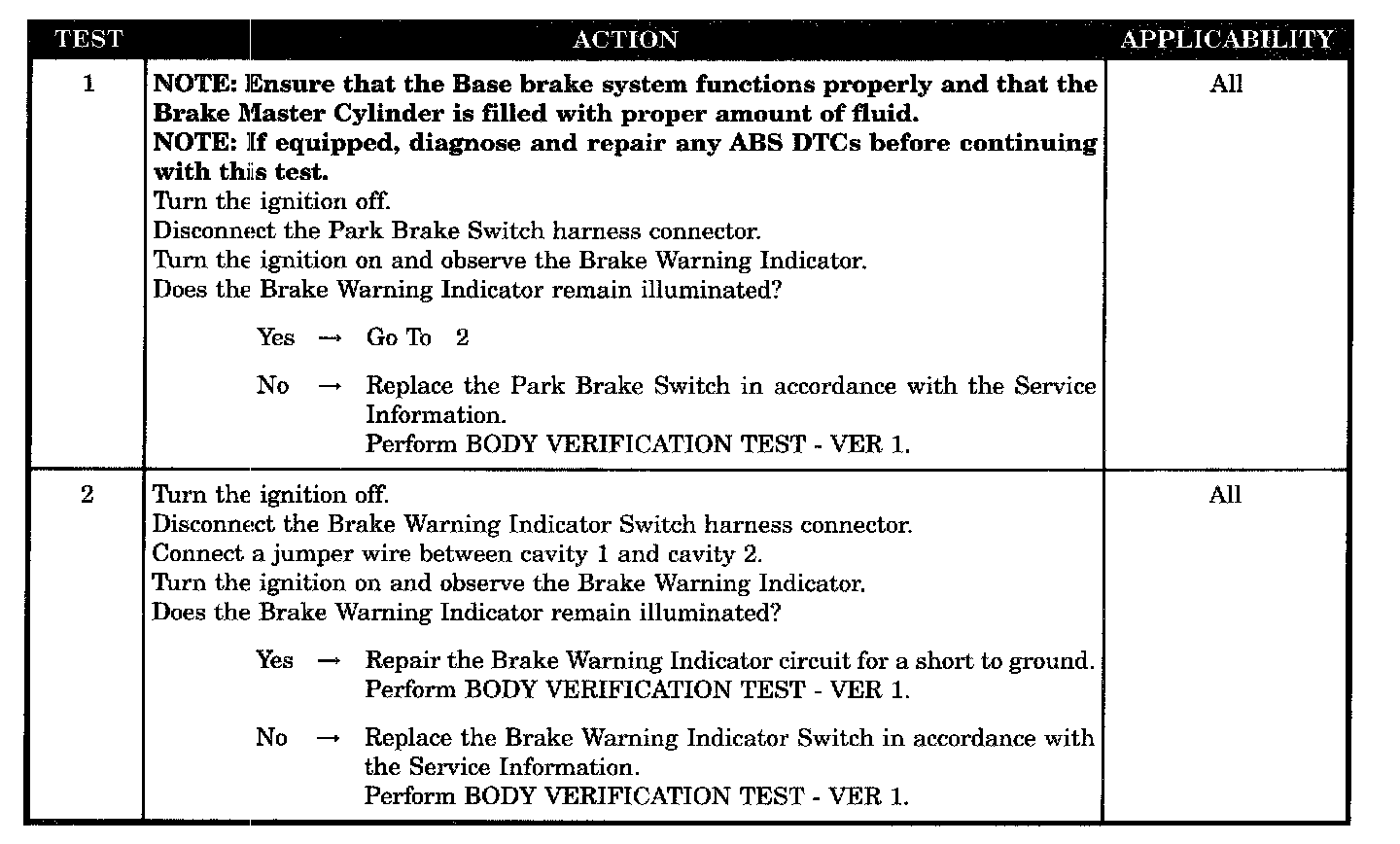

Test 1 - 2:
SYMPTOM
BRAKE WARNING INDICATOR ALWAYS ON
POSSIBLE CAUSES
-
Brake warning indicator circuit short to ground
-
Brake warning indicator switch
-
Park brake switch
