Panel Dimming Inoperative

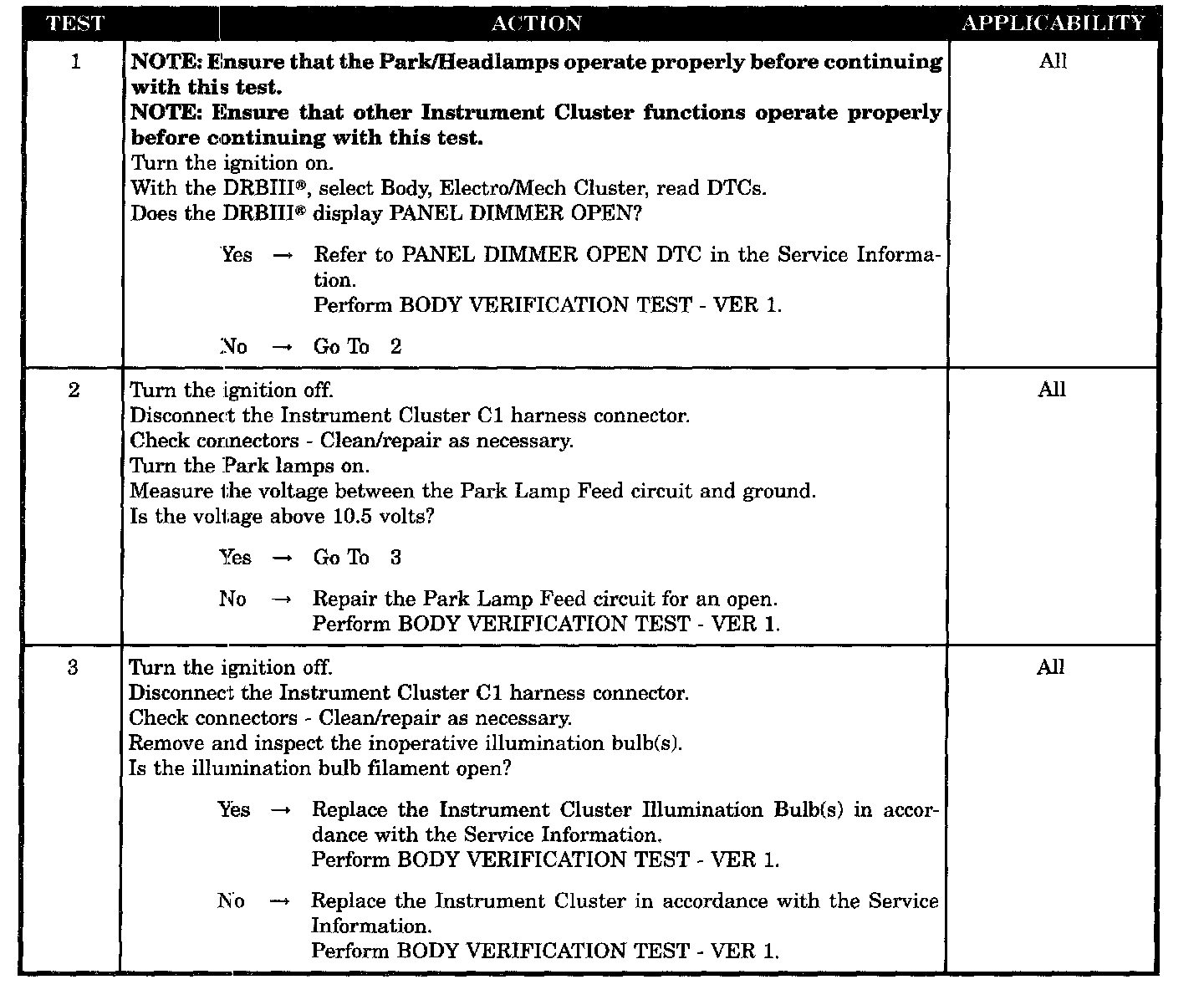

Test 1 - 3:






SYMPTOM
PANEL DIMMING INOPERATIVE

POSSIBLE CAUSES
- Instrument cluster panel dimming DTC
- Park lamp feed circuit open
- Illumination bulb
- Instrument cluster
