Seat Belt Indicator Not Operating Properly

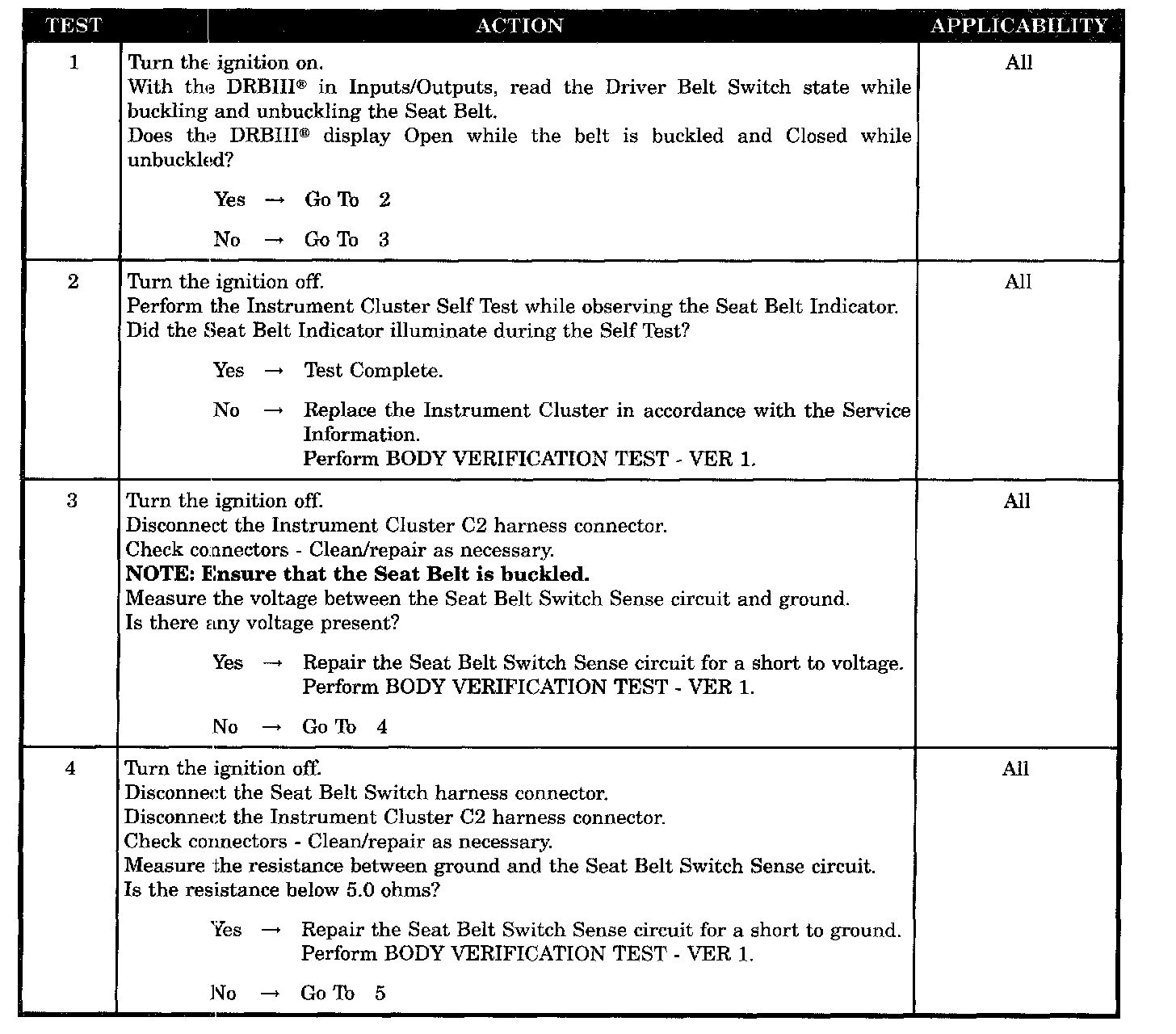

Test 1 - 4:

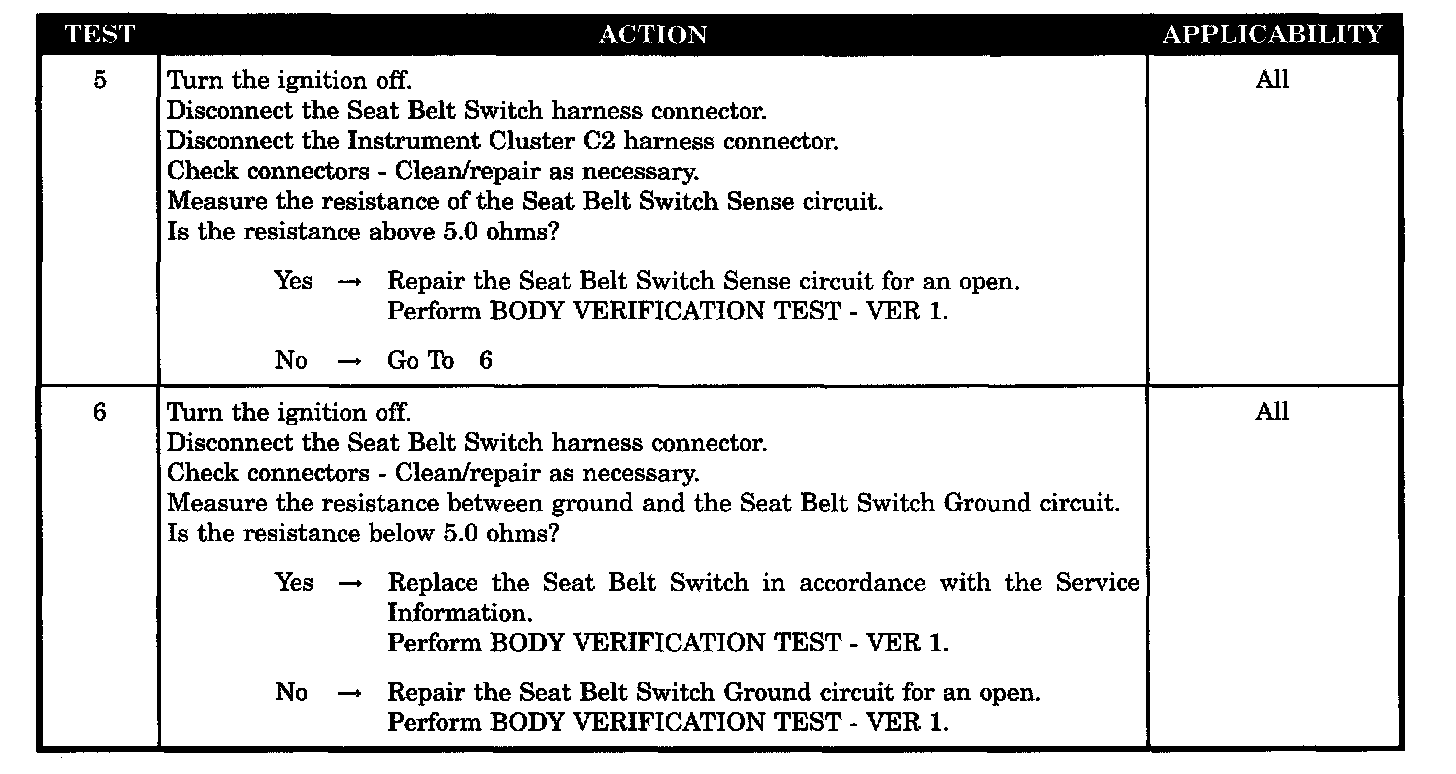

Test 5 - 6:

SYMPTOM
SEAT BELT INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Seat belt switch sense circuit short to ground
- Seat belt switch sense circuit open
- Seat belt switch ground circuit open
- Seat belt switch
- Seat belt switch sense circuit short to voltage
- Instrument cluster
