Engine Mechanical

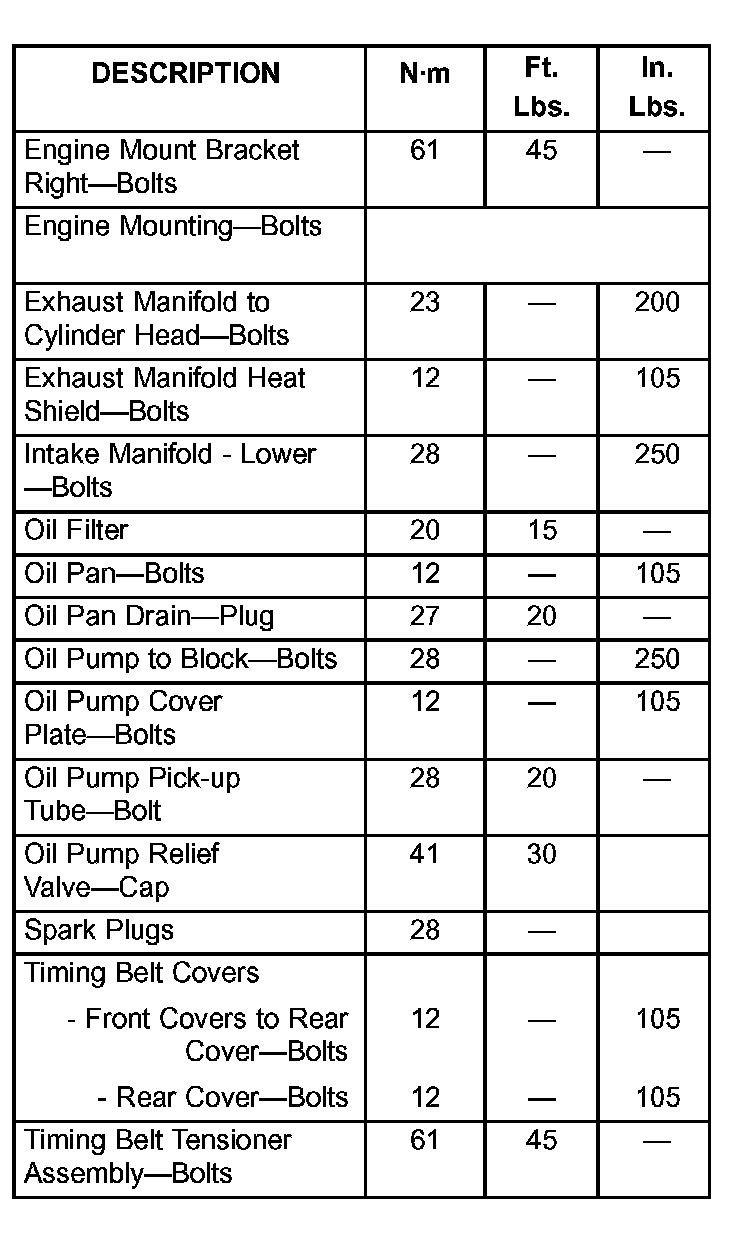

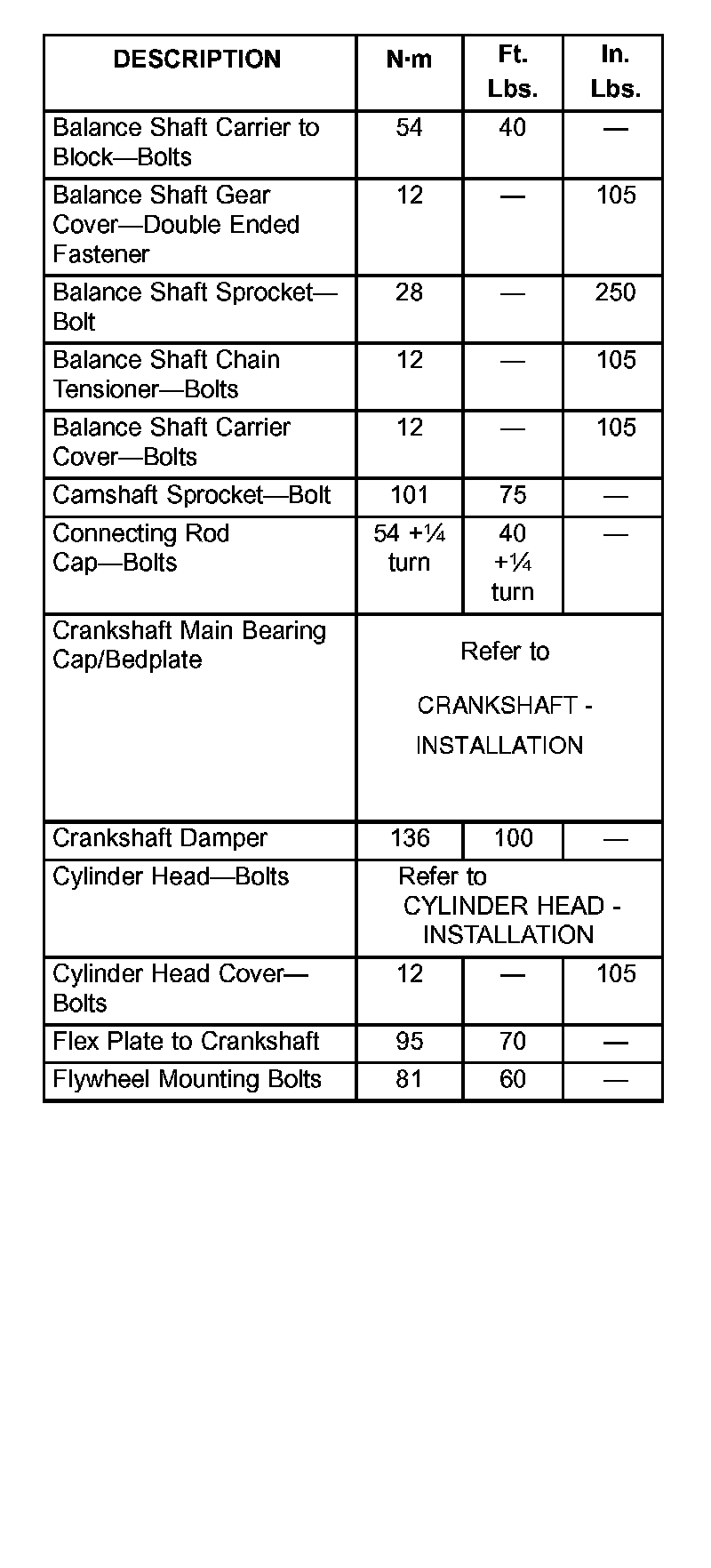

SPECIFICATIONS - TORQUE

Part 1 Of 2:

Part 2 Of 2:

Water Pump - Bolts 12 Nm (105 inch lbs.)
For specifications regarding Camshaft Bearing Cap bolts, refer to service procedure. Procedures
