All Doors Except Driver Fail to Lock

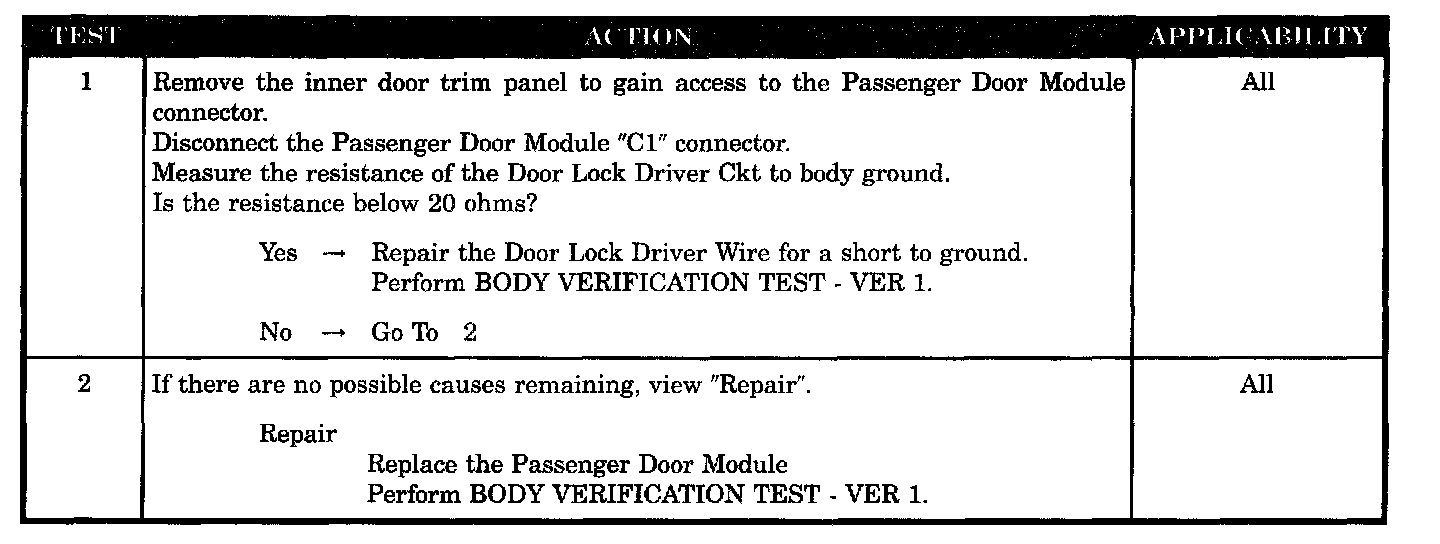

Test 1 - 2:






SYMPTOM
ALL DOORS (EXCEPT DRIVER) FAIL TO LOCK

POSSIBLE CAUSES
- Door lock driver wire short to ground
- Passenger door module - passenger doors fail to lock
