Jeep Truck
>>
2004
>>
Wrangler L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>
Connector Locations
Connector Locations

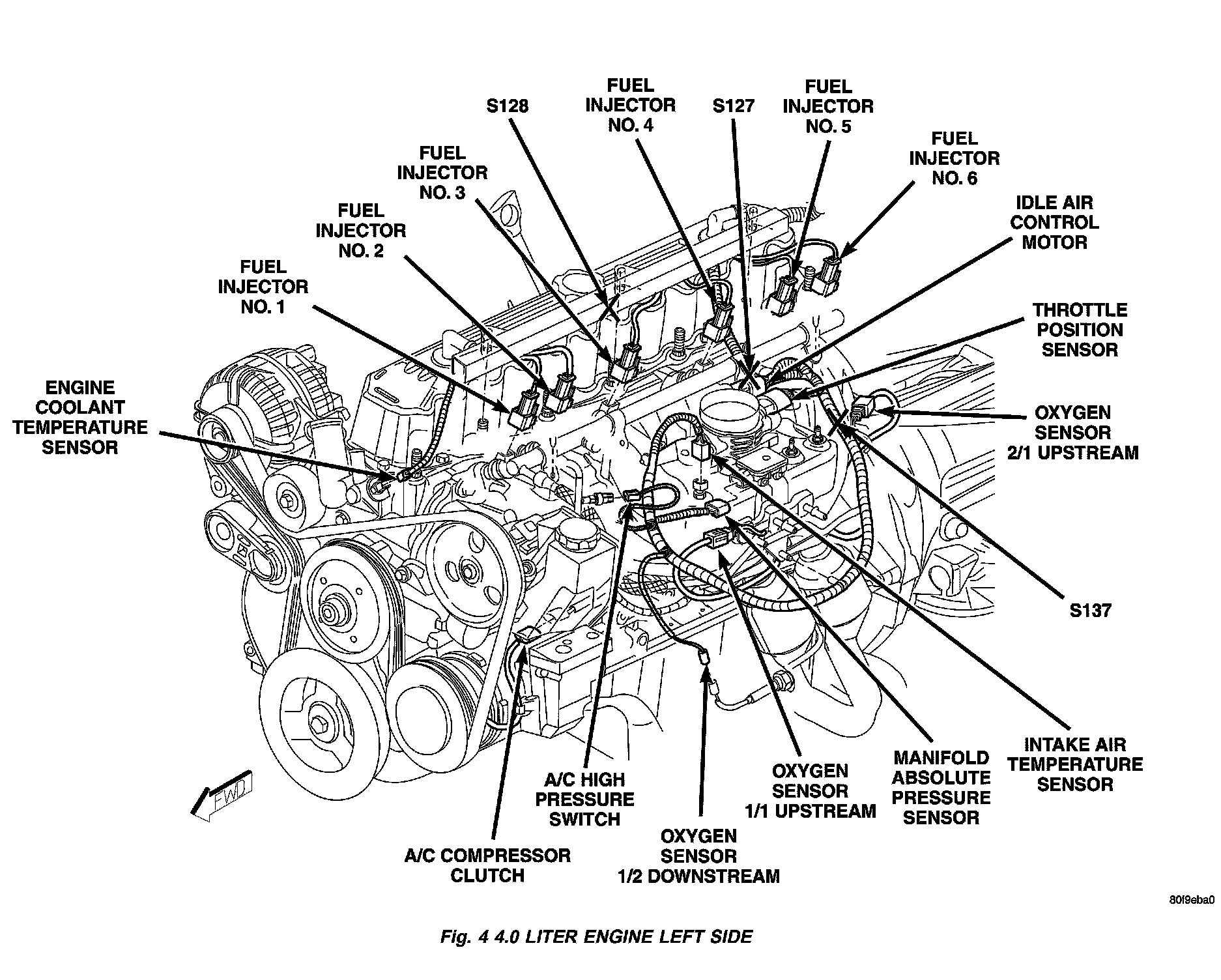

Fig.4 4.0L Engine Left Side:

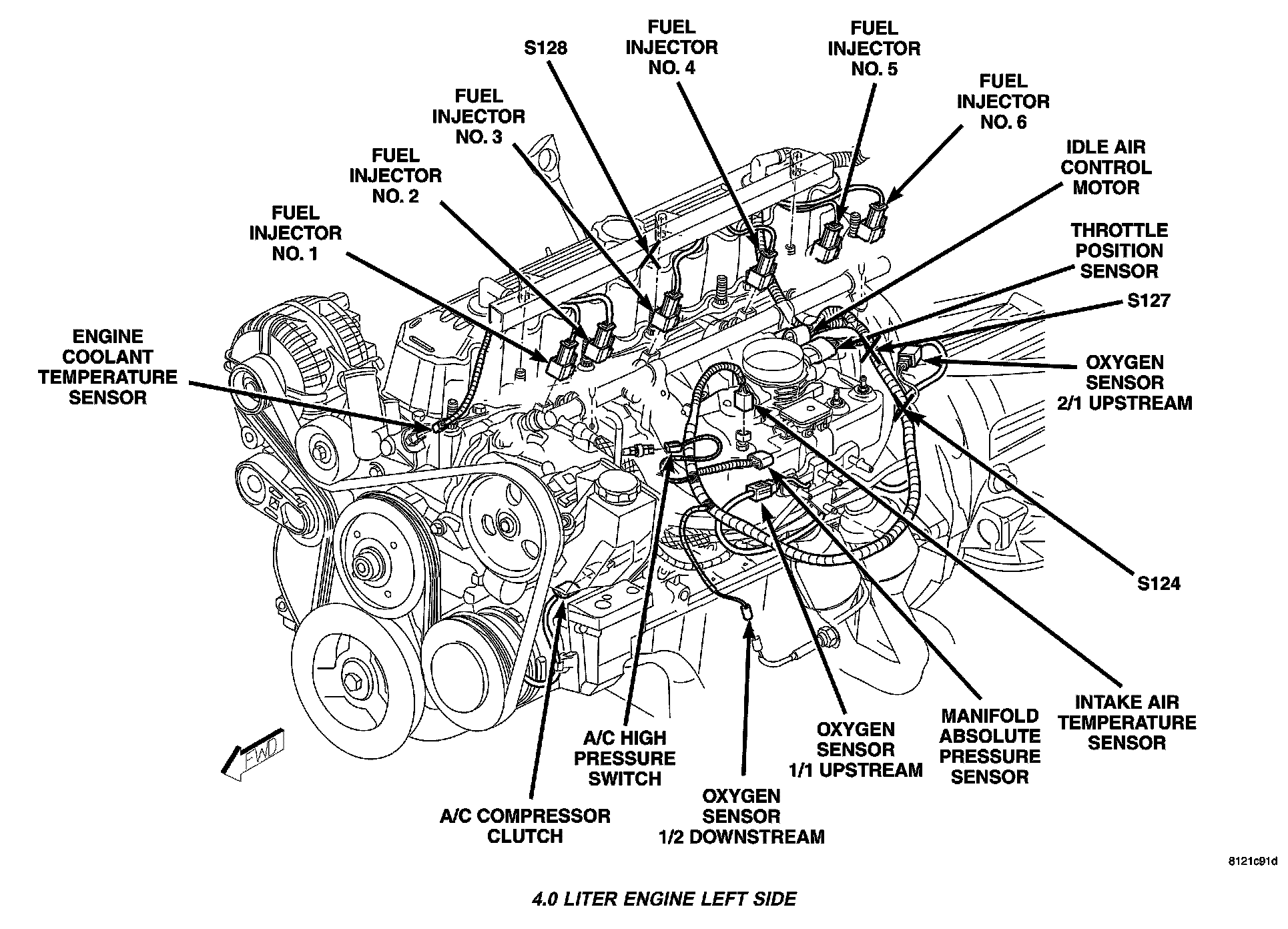

4.0 Liter Engine Left Side:
