Engine Control Module
Engine Control Module

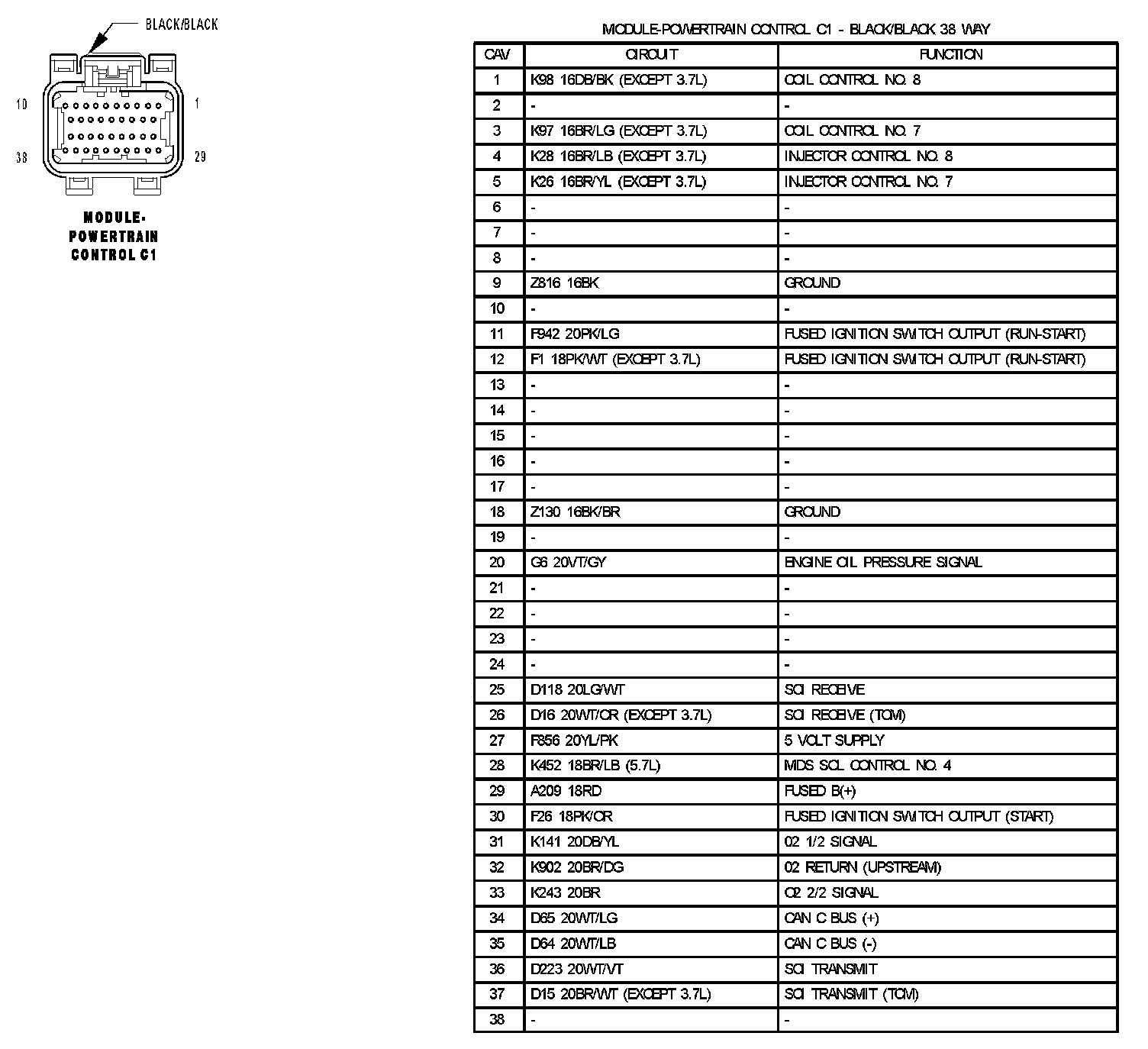

Module Powertrain Control C1:
Module Powertrain Control C2 (5.7L):

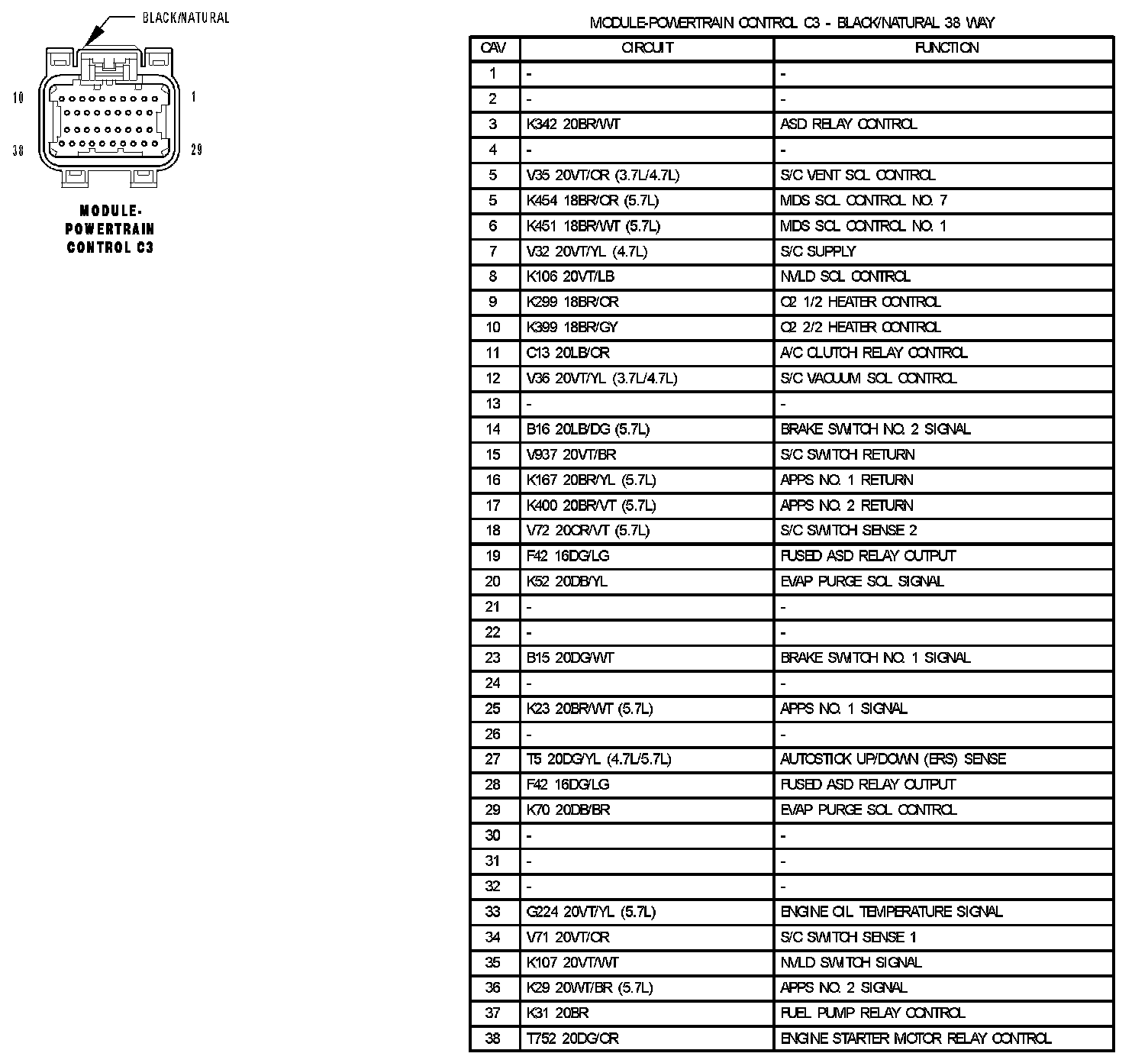

Module Powertrain Control C3:

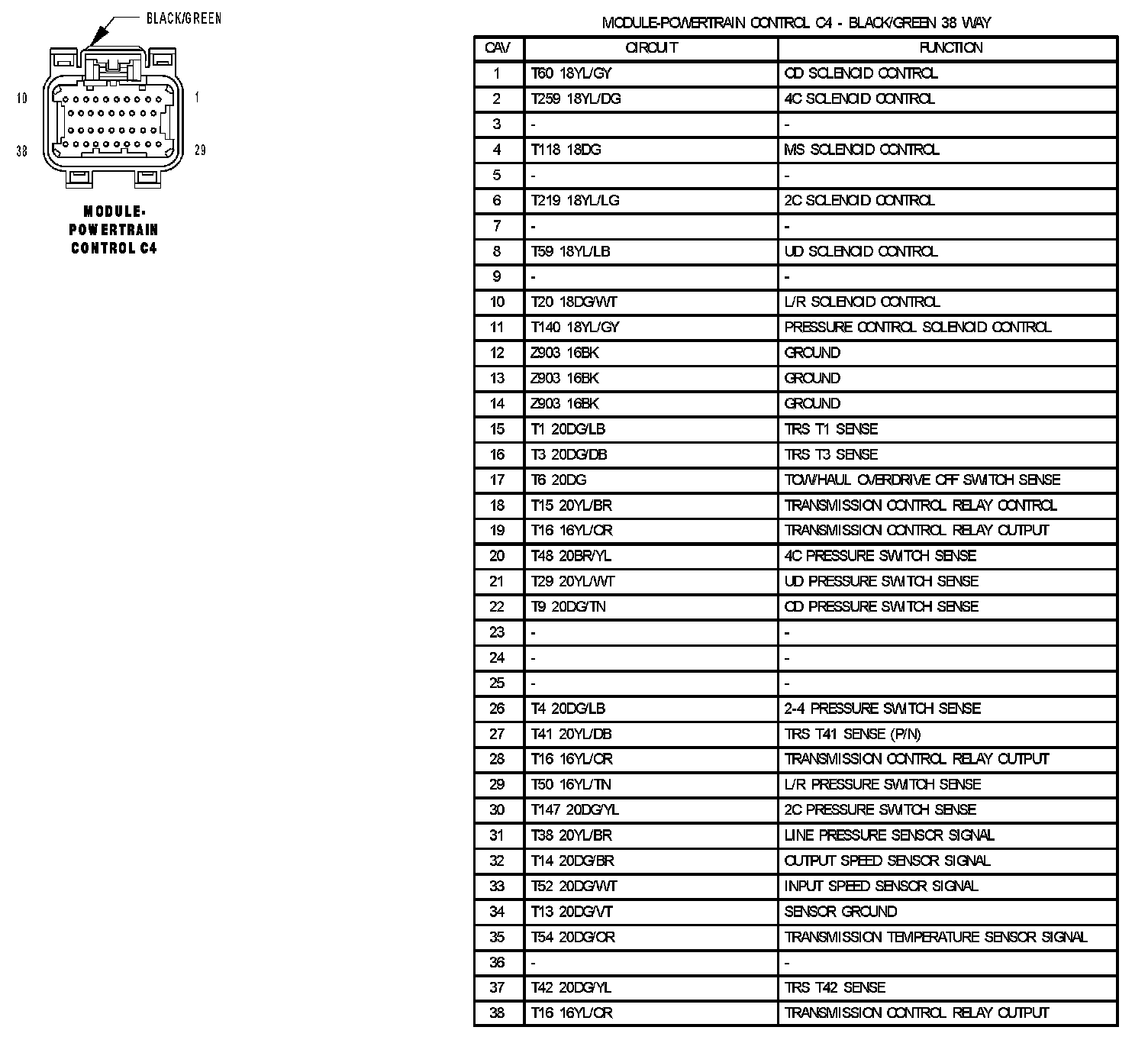

Module Powertrain Control C4:
