Home >> Jeep Truck >> 2005 >> Grand Cherokee 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Diagrams

Oxygen Sensor: Diagrams

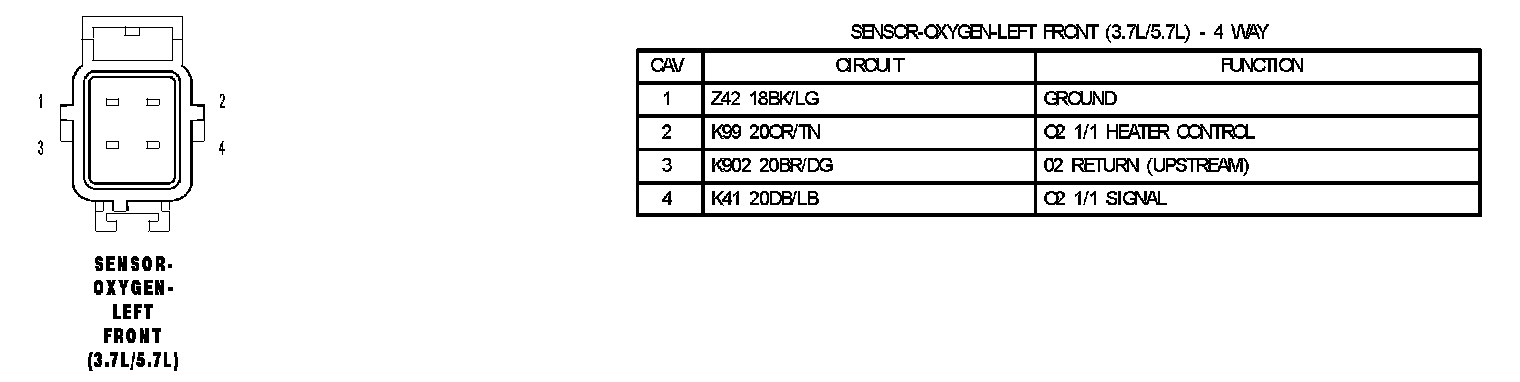

Sensor Oxyen Left Front (3.7L/5.7L):

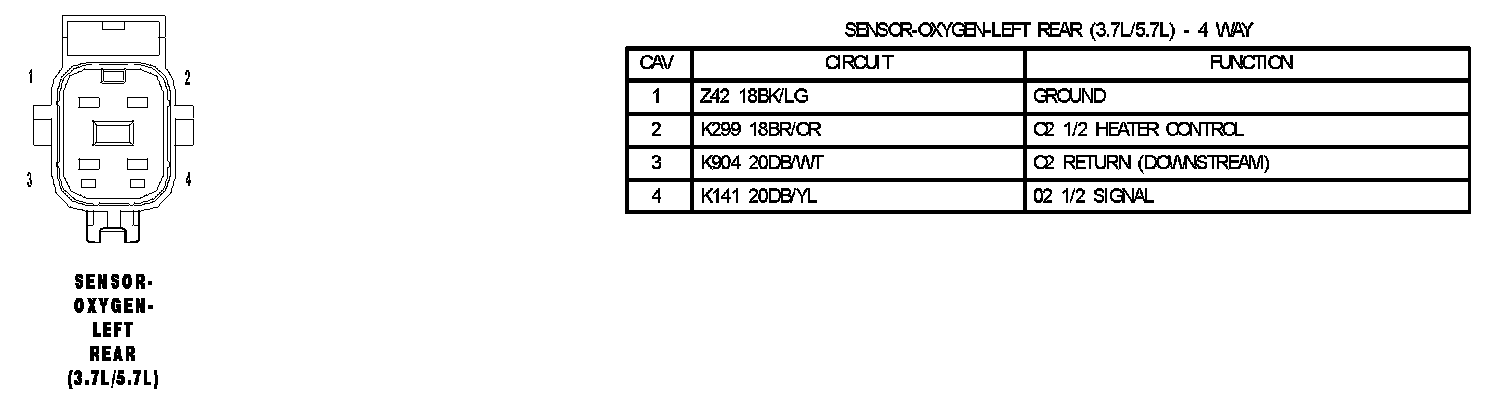

Sensor Oxyen Left Rear (3.7L/5.7L):



Sensor Oxyen Right Front (3.7L/5.7L):

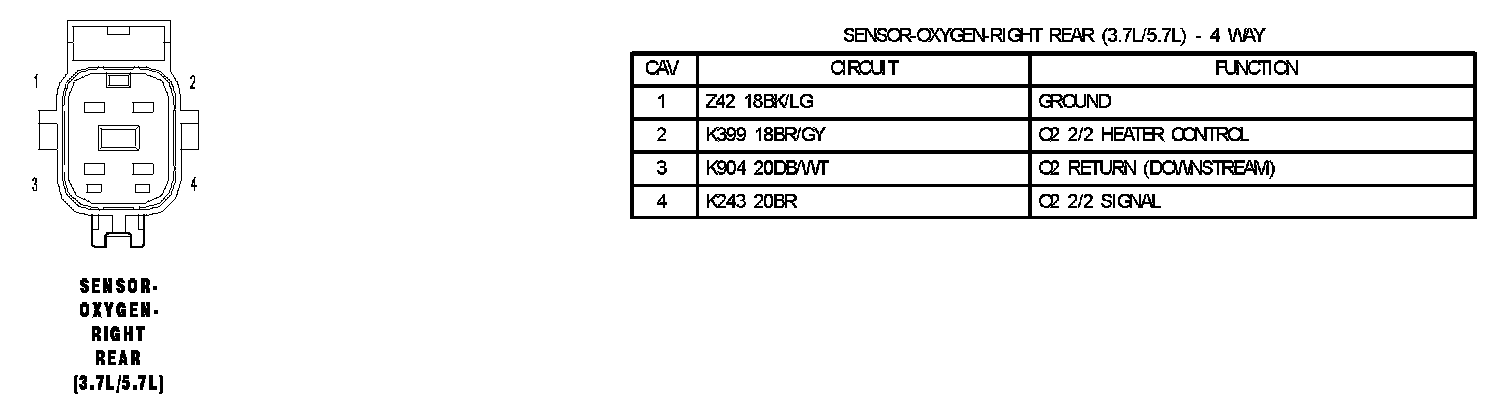

Sensor Oxyen Right Rear (3.7L/5.7L):
