Service Specifications

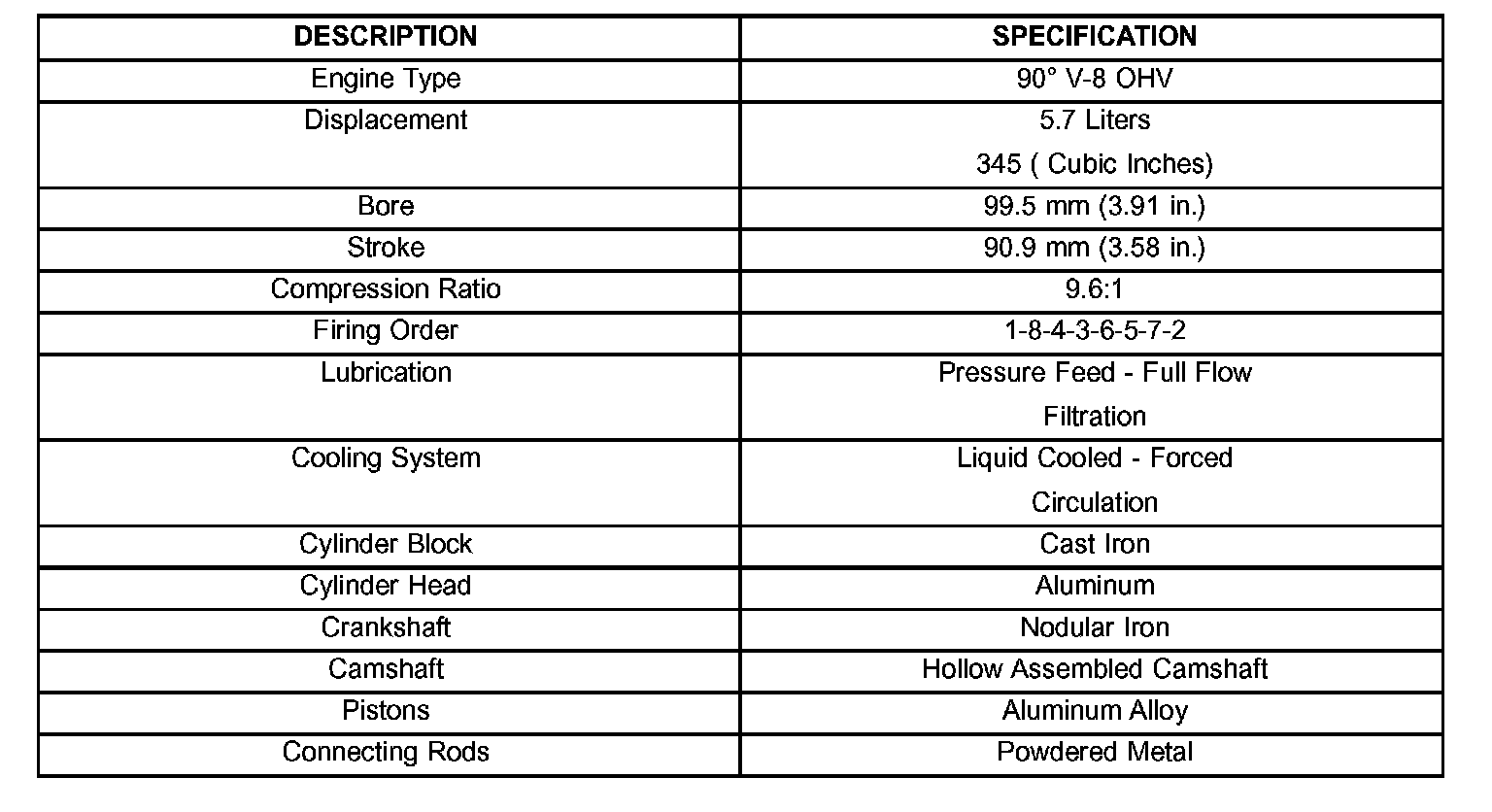

GENERAL SPECIFICATIONS

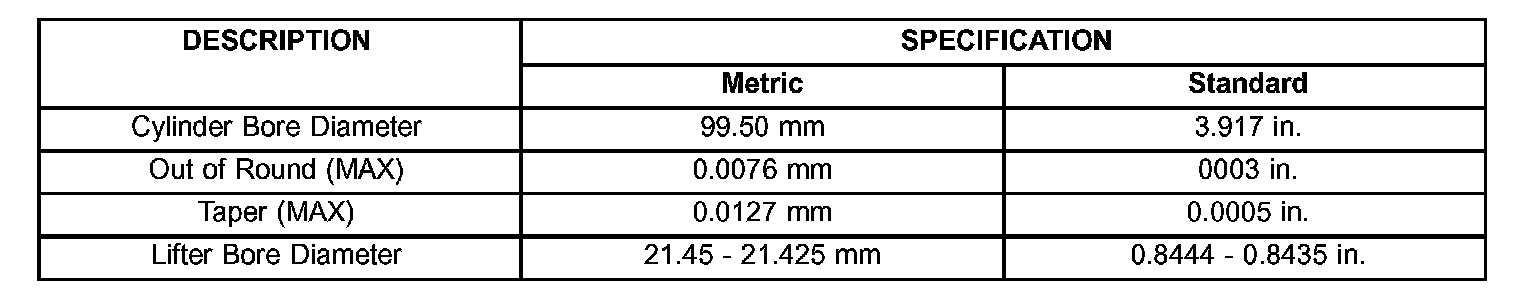

CYLINDER BLOCK

PISTONS

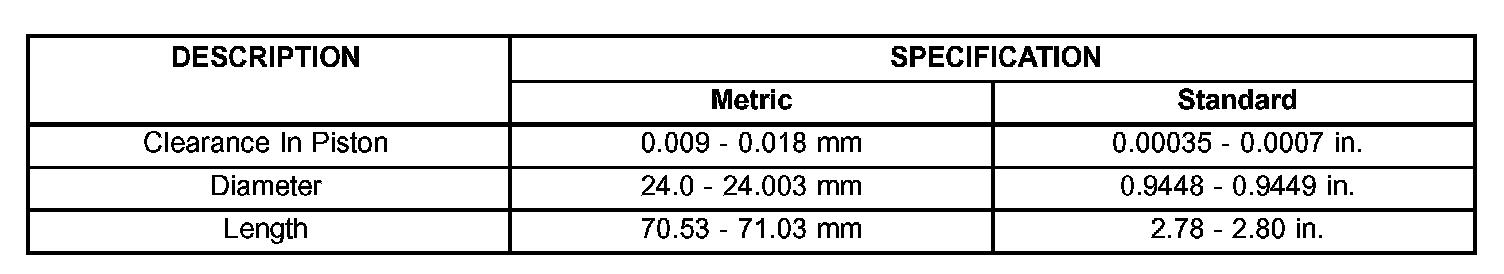

PISTON PINS

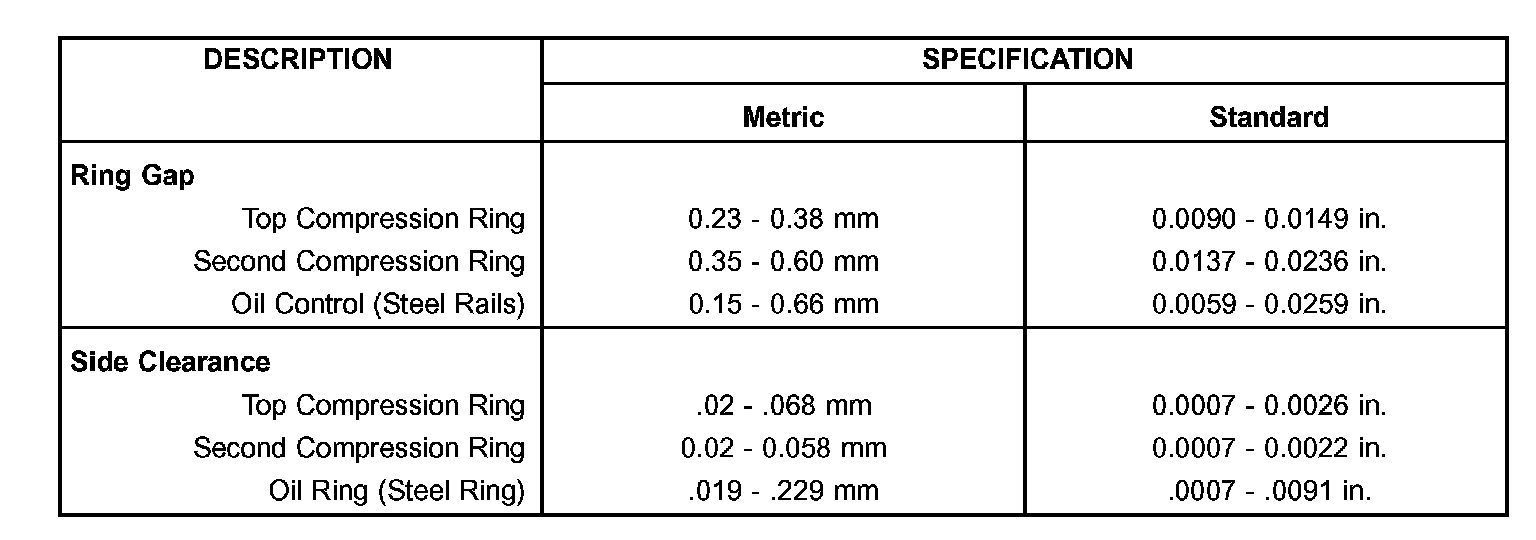

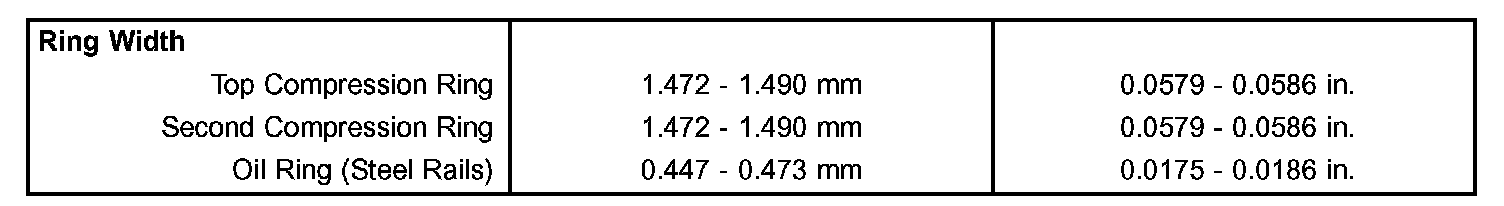

PISTON RINGS

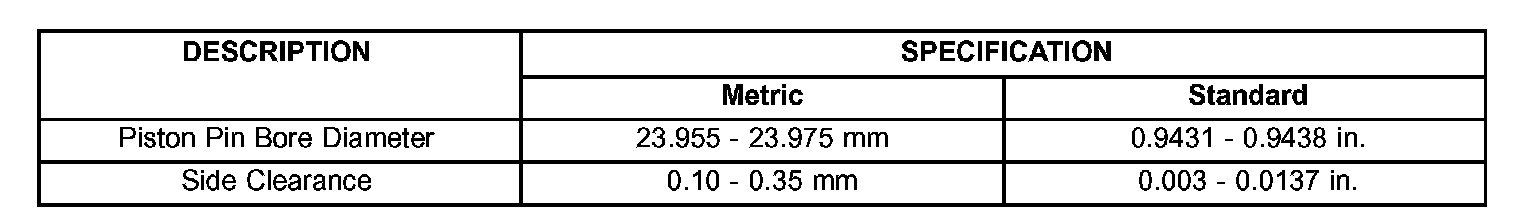

CONNECTING RODS

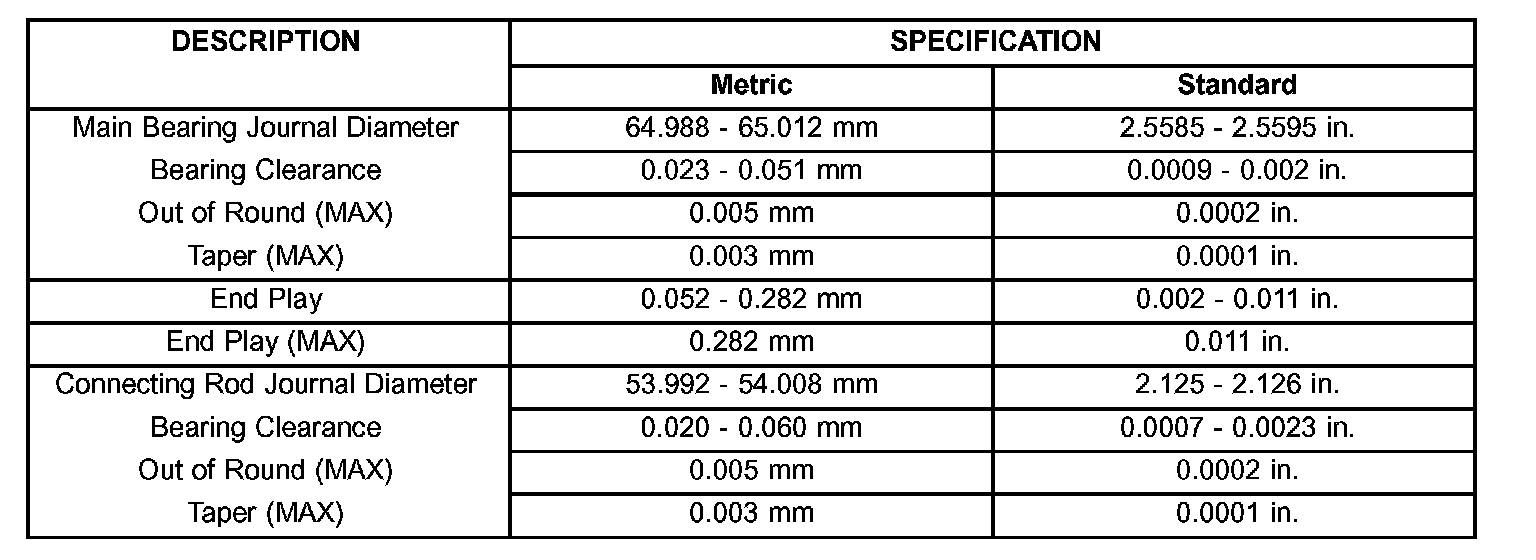

CRANKSHAFT

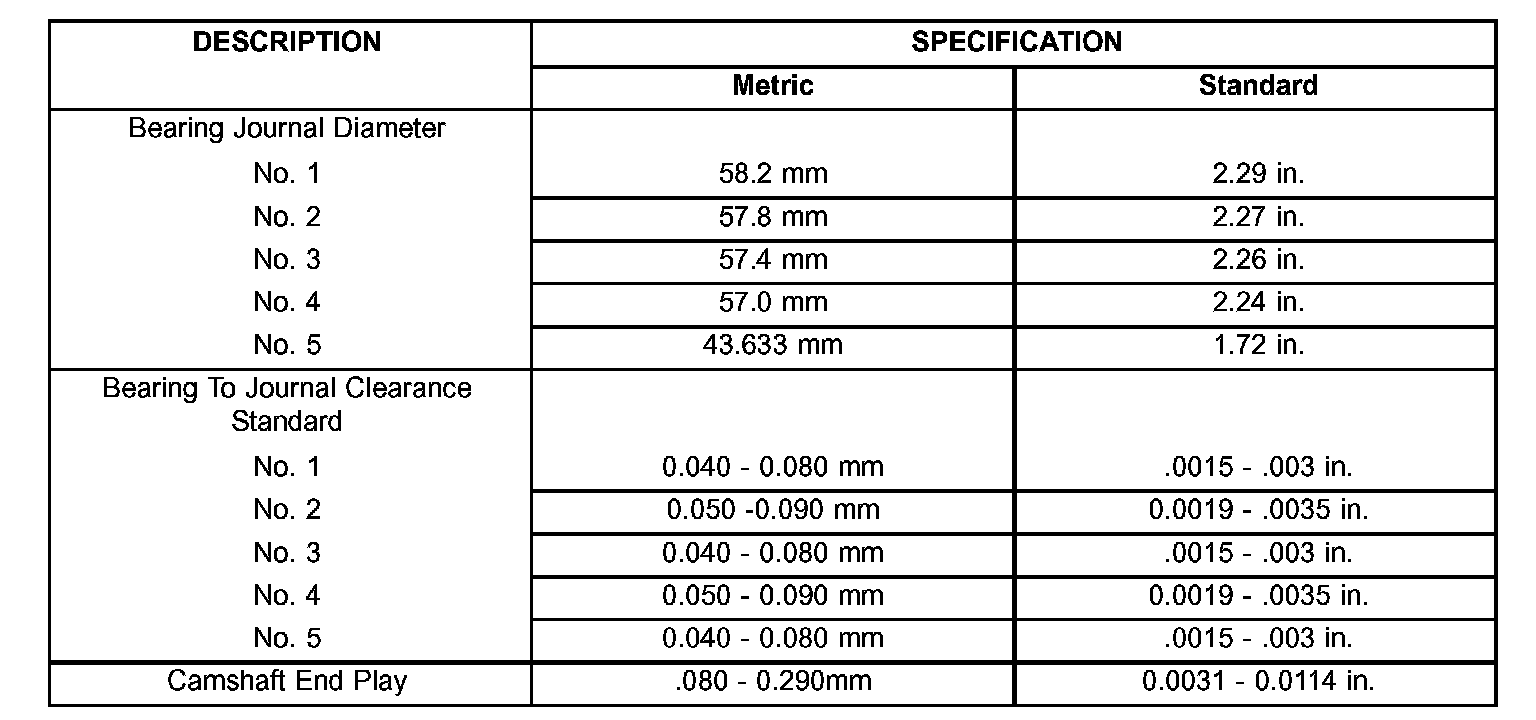

CAMSHAFT

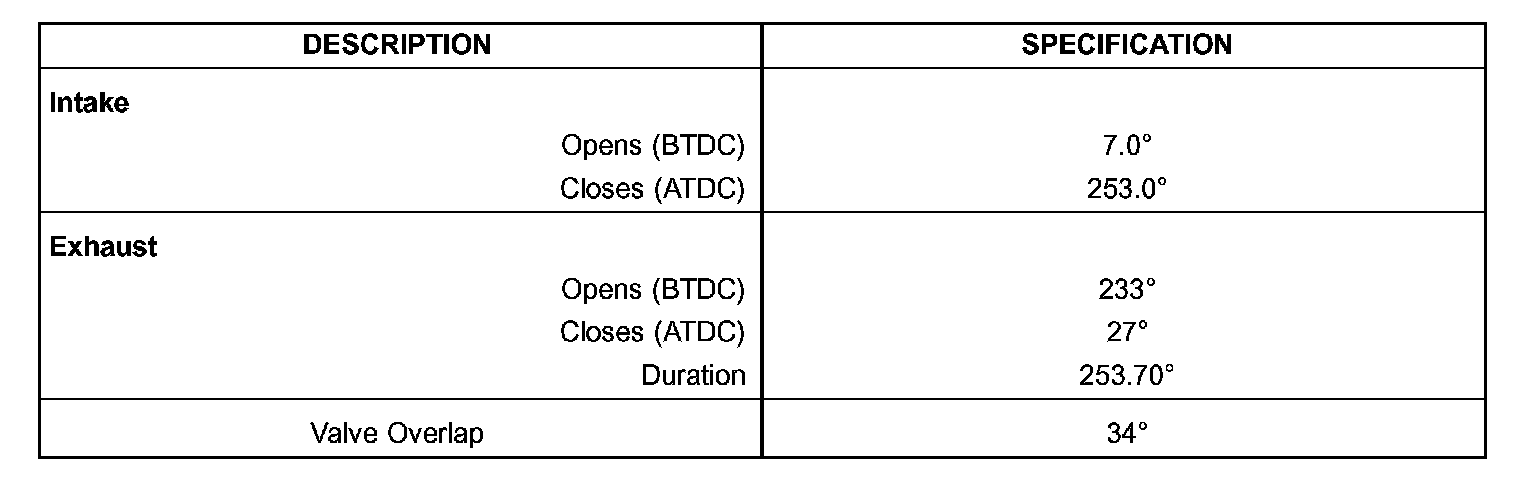

VALVE TIMING

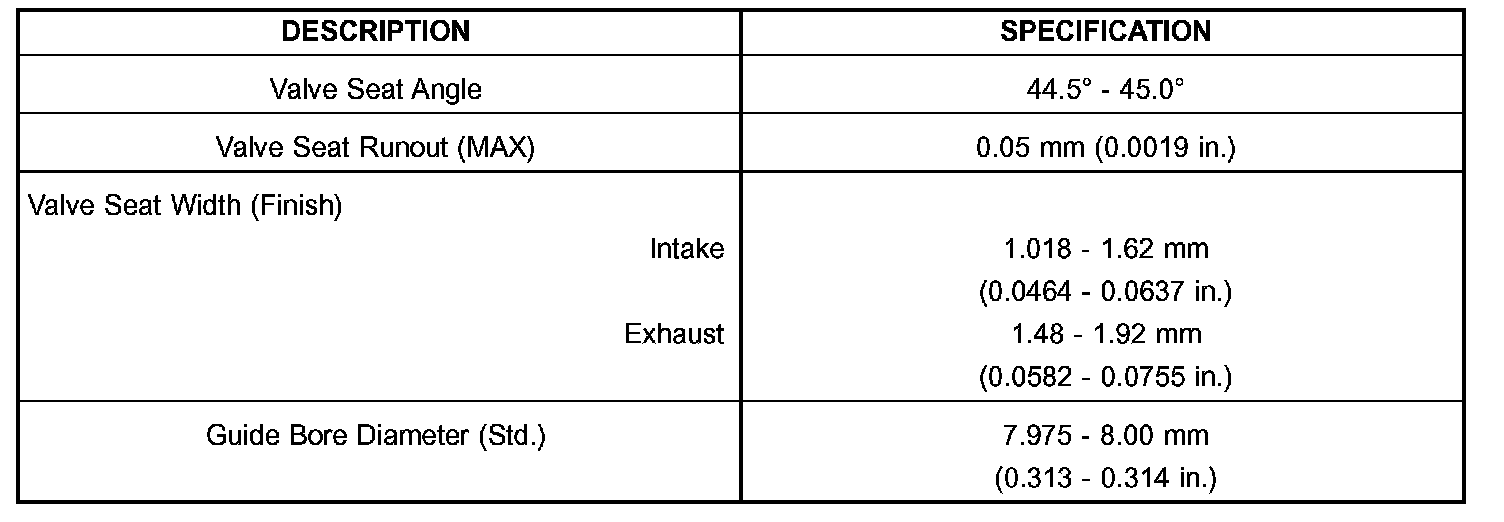

CYLINDER HEAD

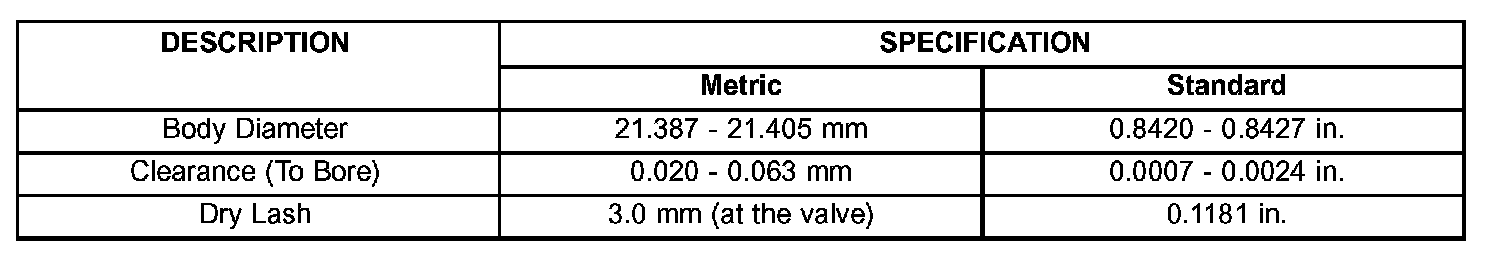

HYDRAULIC TAPPETS

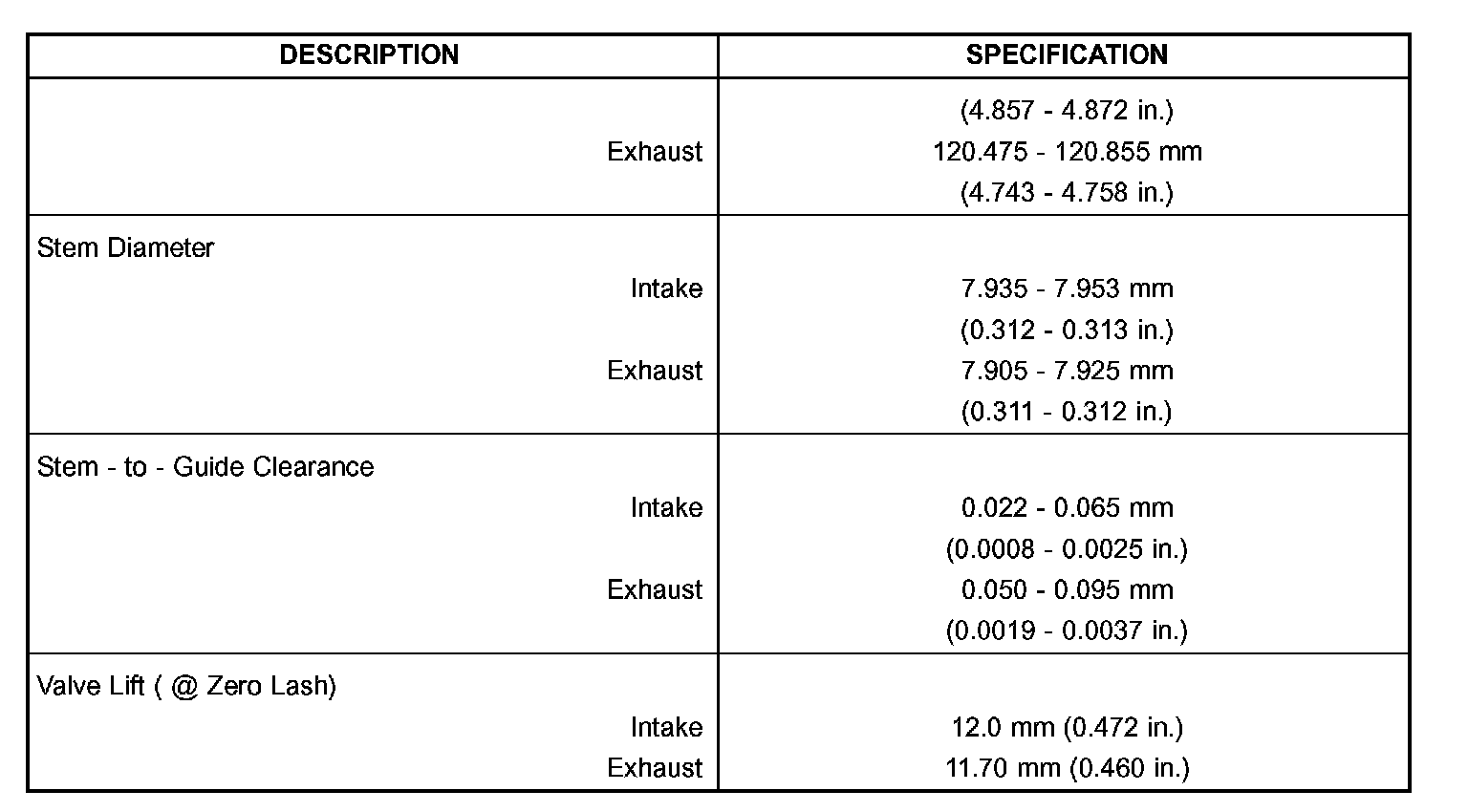

VALVES

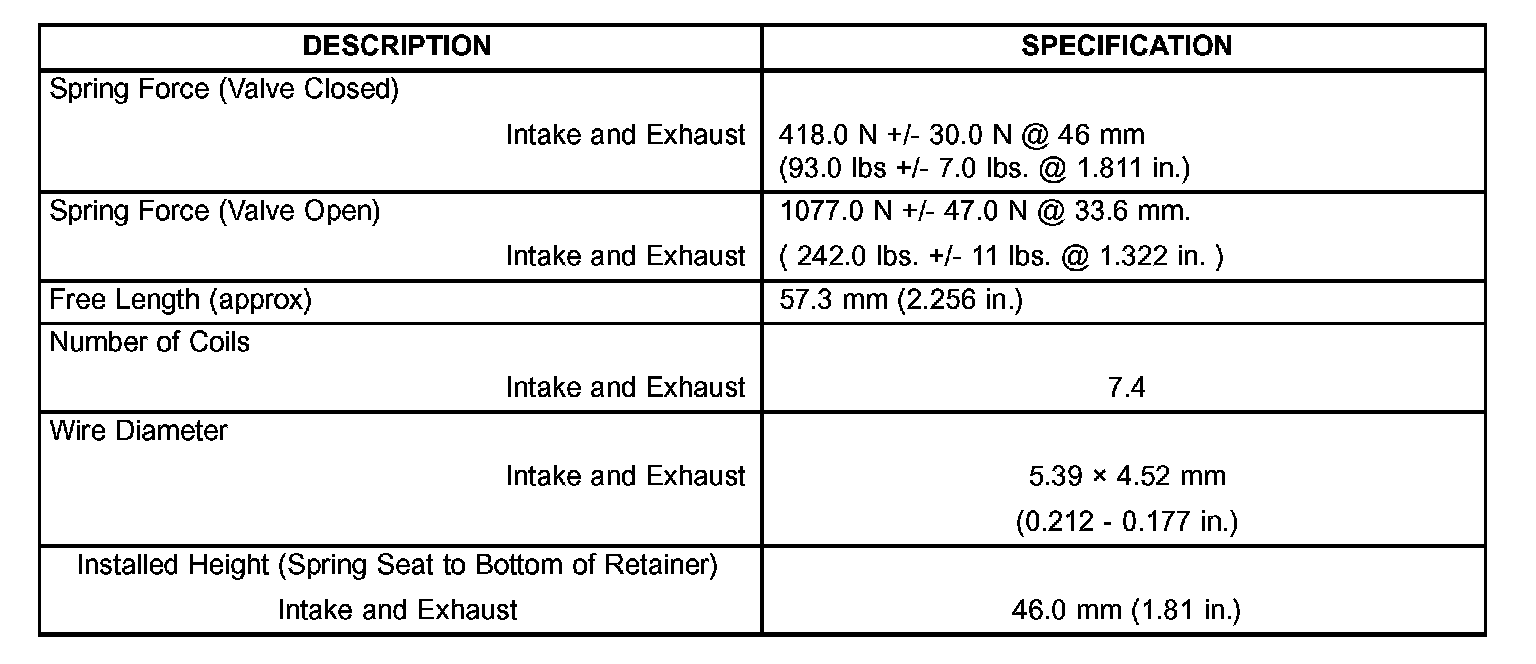

VALVE SPRING

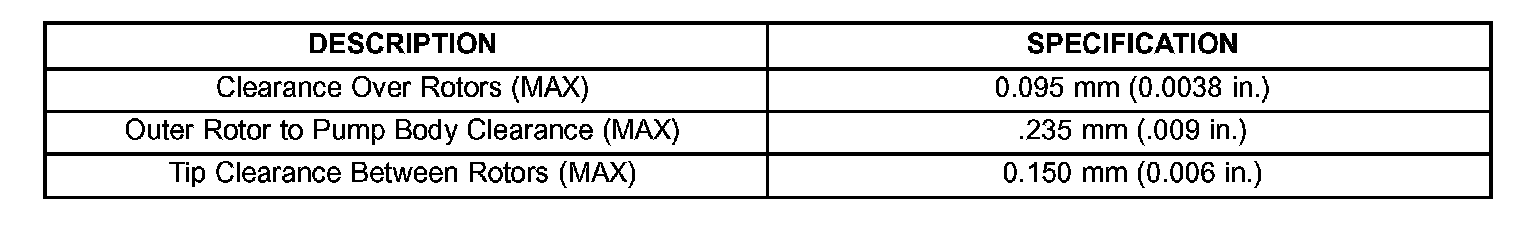

OIL PUMP
