No Response From ITM (Intrusion Transceiver Module)

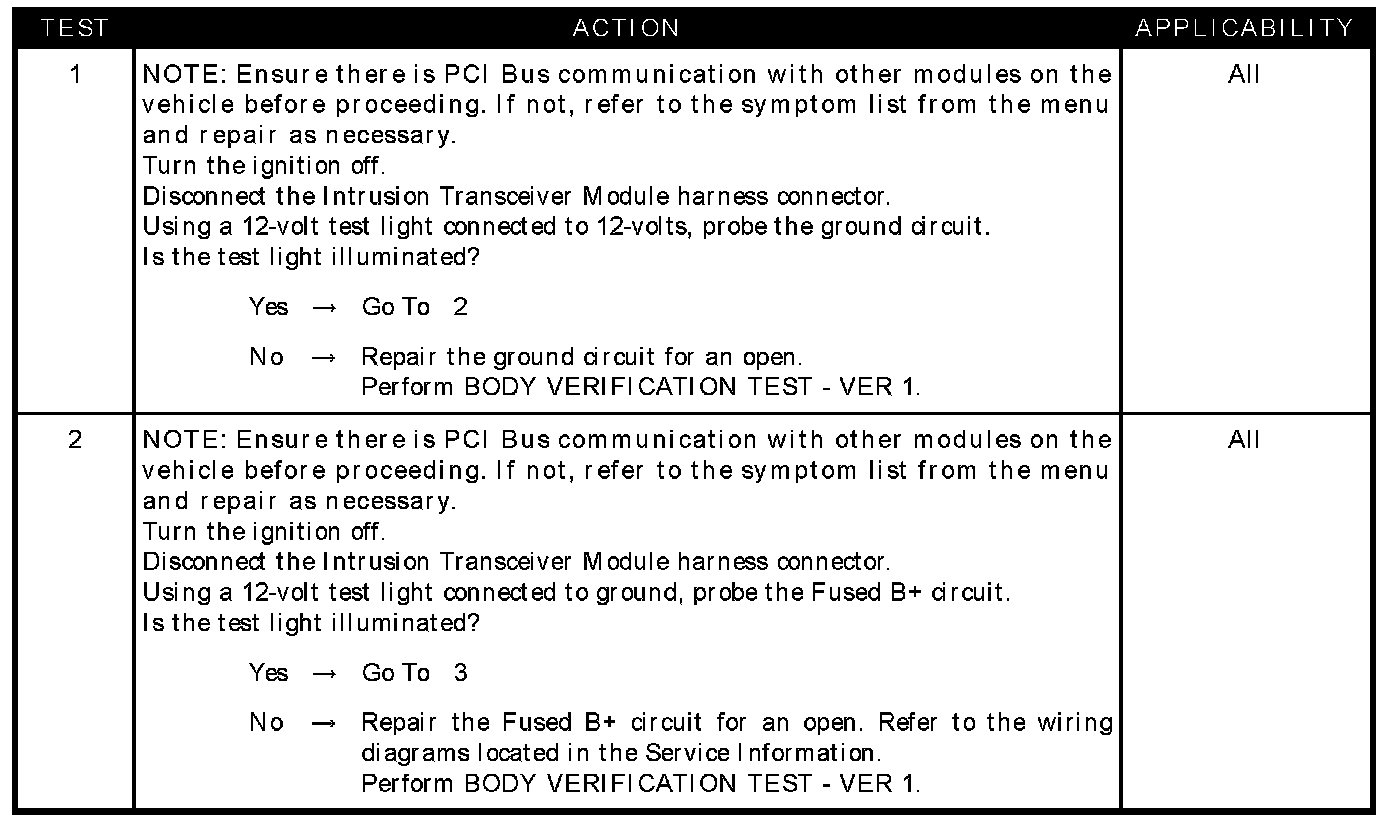

Test 1 - 2:

Test 3:

SYMPTOM
NO RESPONSE FROM INTRUSION TRANSCEIVER MODULE

POSSIBLE CAUSES
- Ground circuit open
- Fused B+ circuit open
- Open PCI BUS circuit
- Intrusion transceiver module
