Cruise Control
>>
Cruise Control Servo
>>
Locations
>>
Connector Locations
Connector Locations

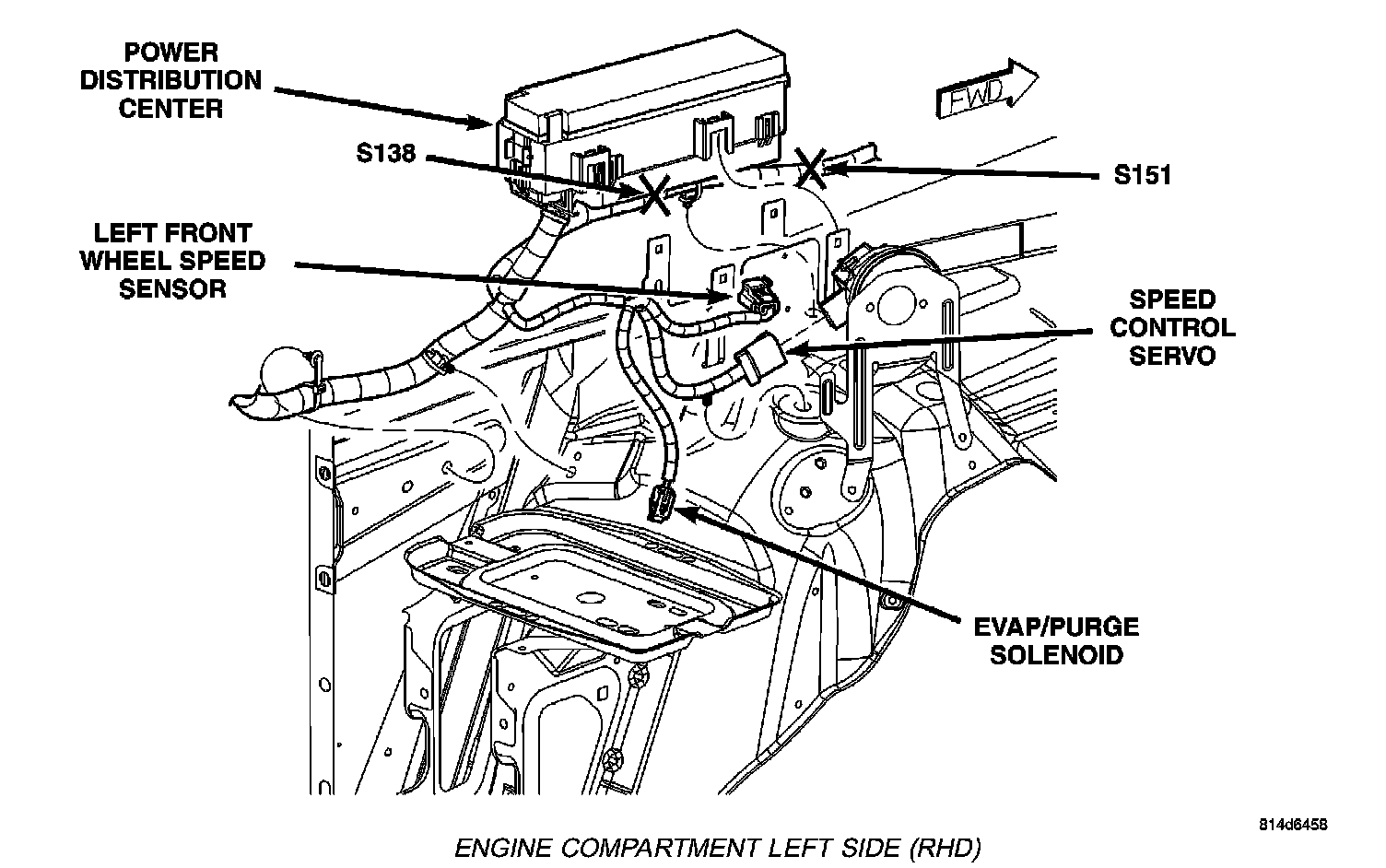

Engine Compartment Left Side (RHD):

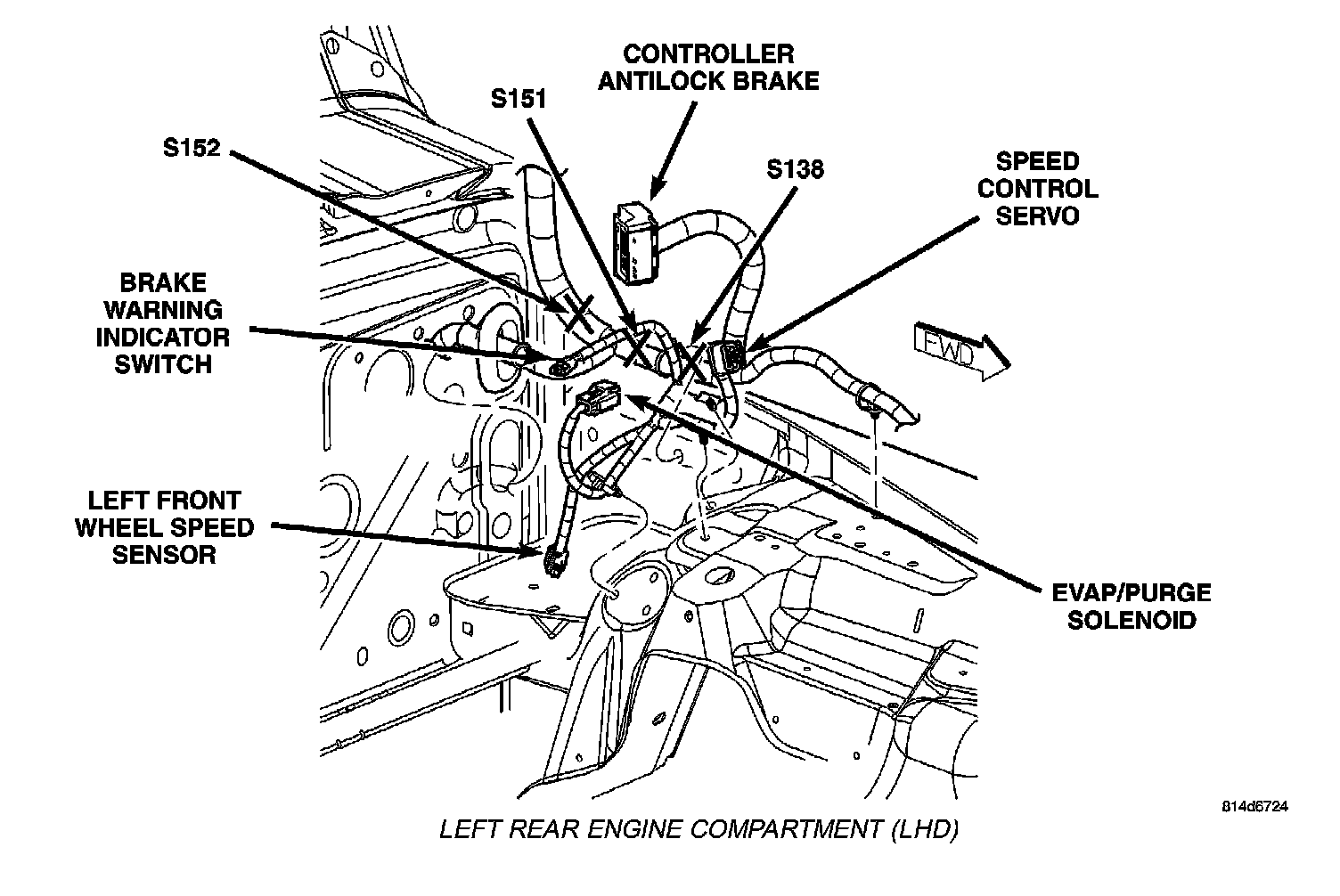

Left Rear Engine Compartment (LHD):
