Combination Switch

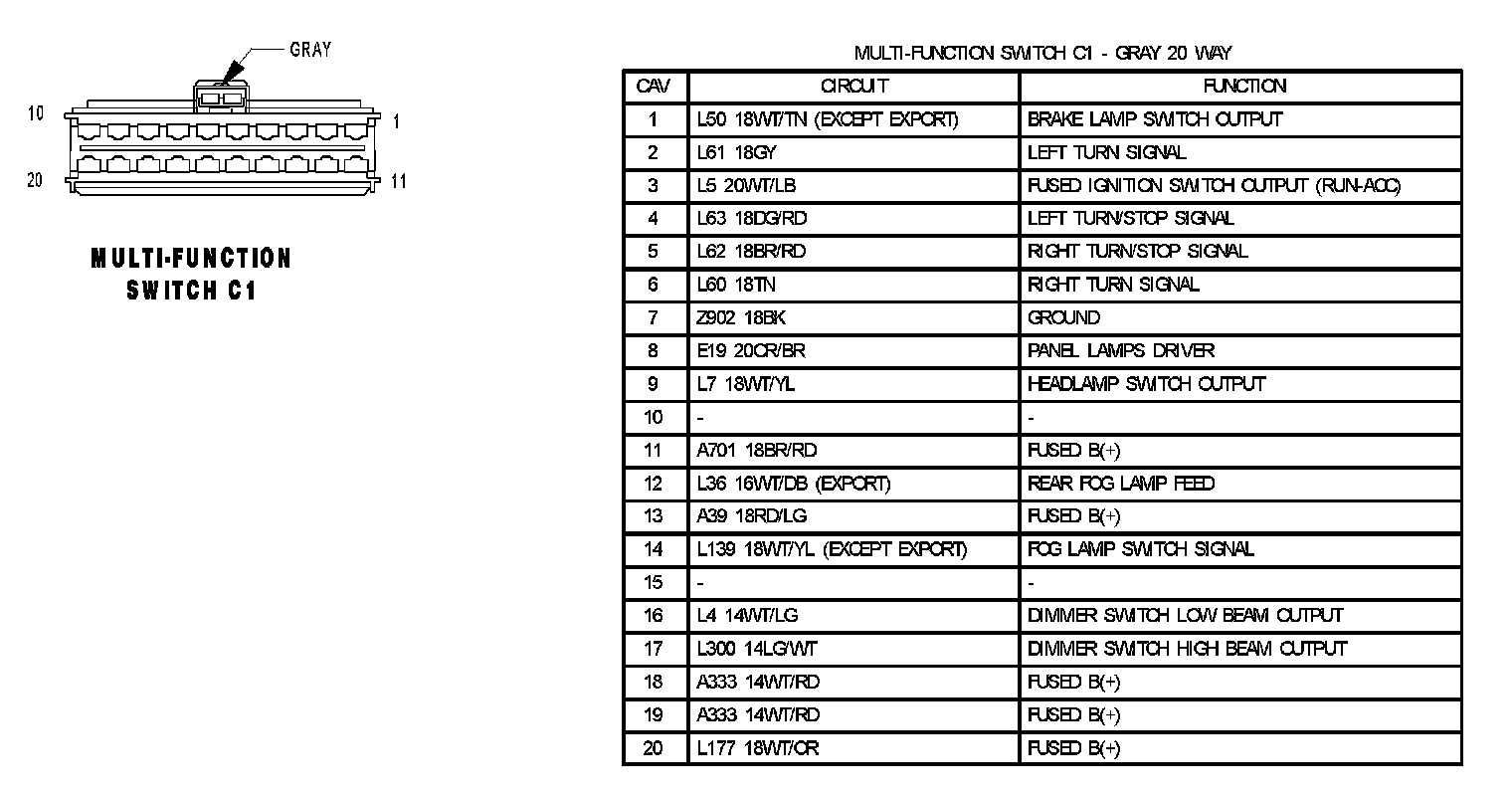

Multi-Function Switch C1:

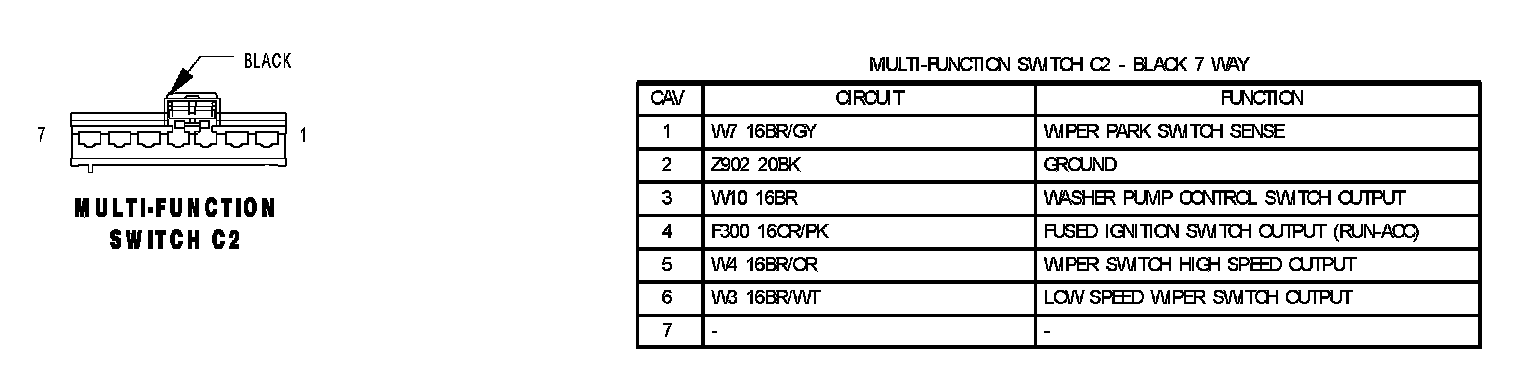

Multi-Function Switch C2:

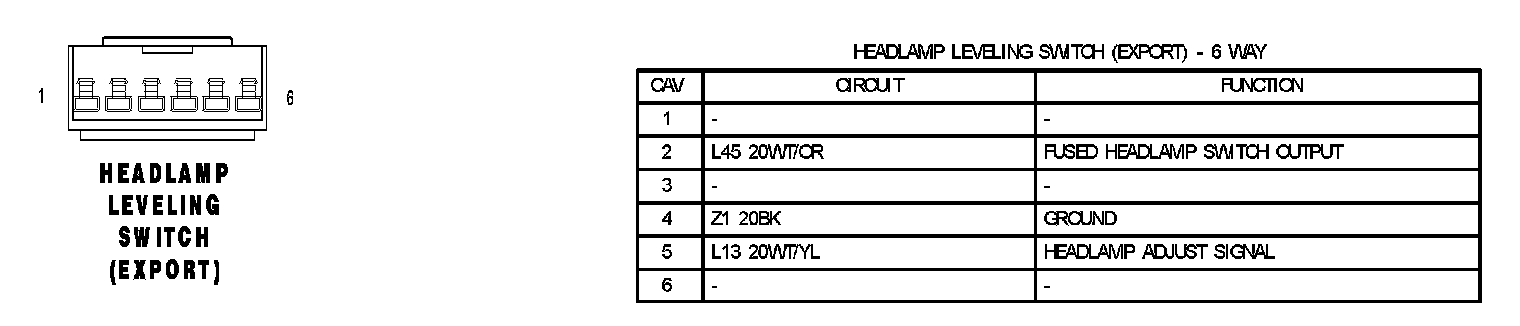

Headlamp Leveling Switch (Export):
