Connector Views

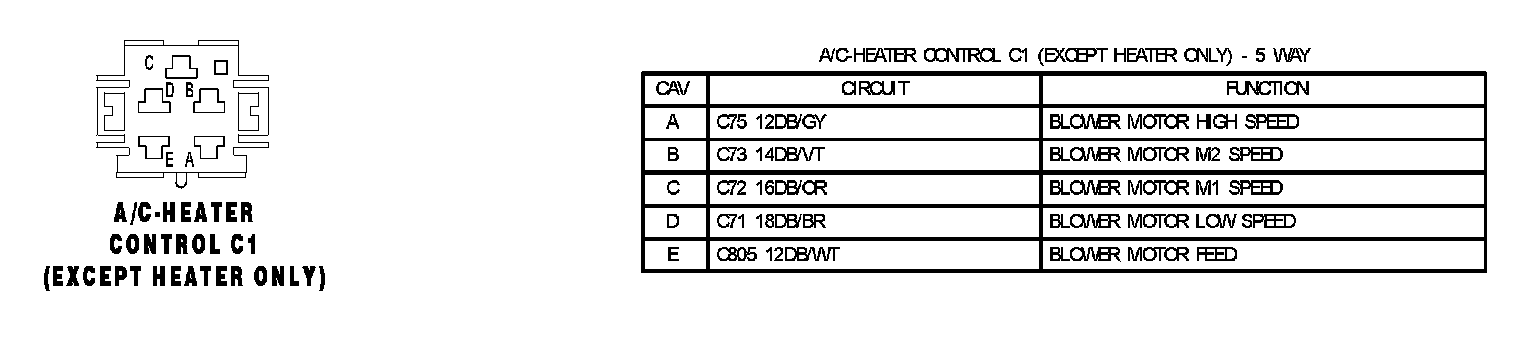

A/C-Heater Control C1 (Except Heater Only):

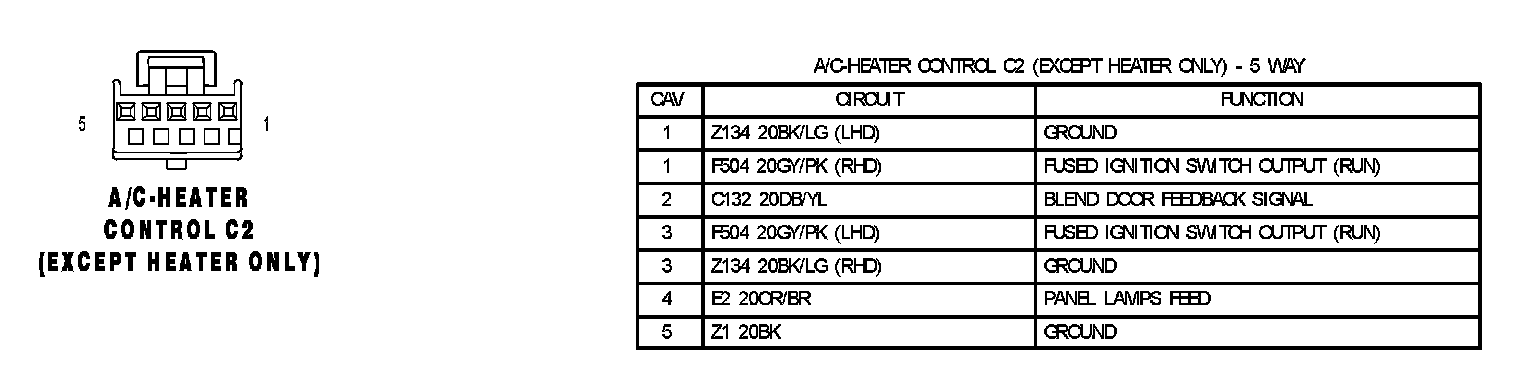

A/C-Heater Control C2 (Except Heater Only):

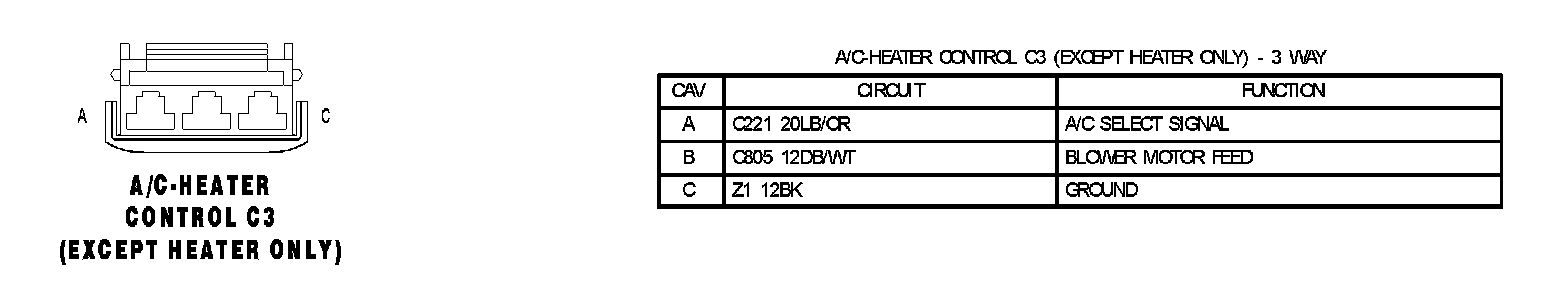

A/C-Heater Control C3 (Except Heater Only):

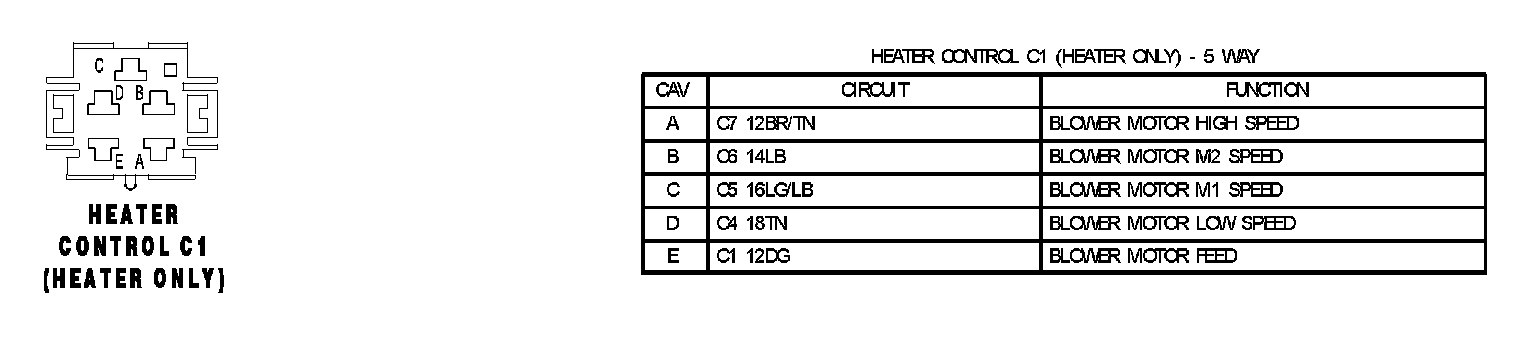

Heater Control C1 (Heater Only):

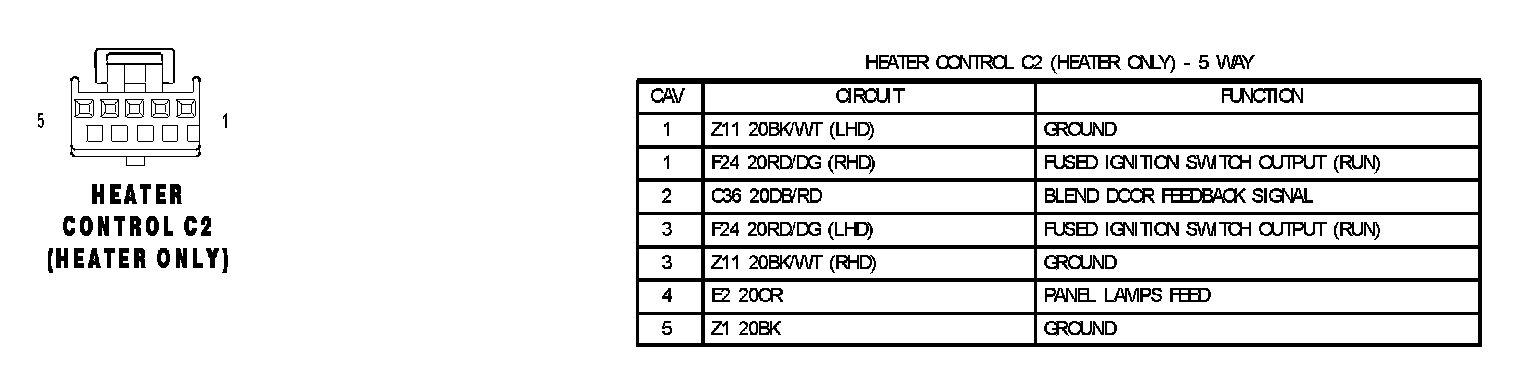

Heater Control C2 (Heater Only):

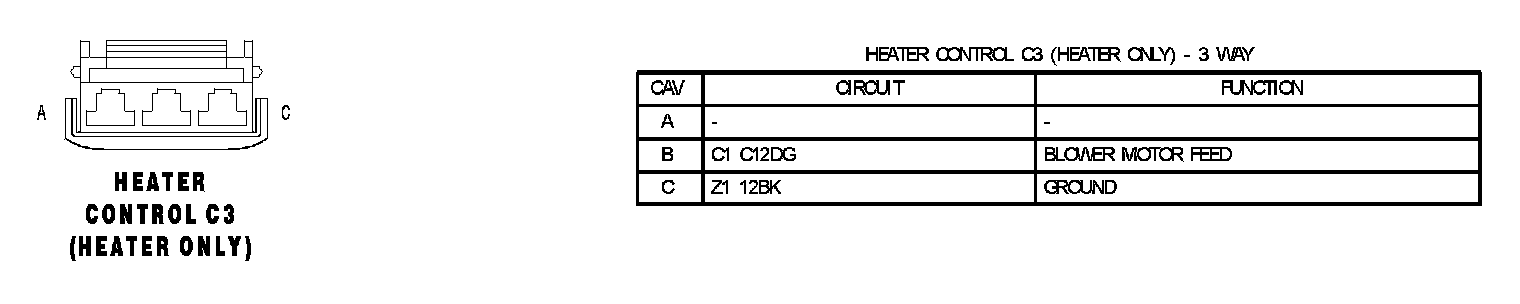

Heater Control C3 (Heater Only):
