Jeep Truck
>>
2005
>>
Wrangler L4-2.4L VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>
Connector Locations
Connector Locations

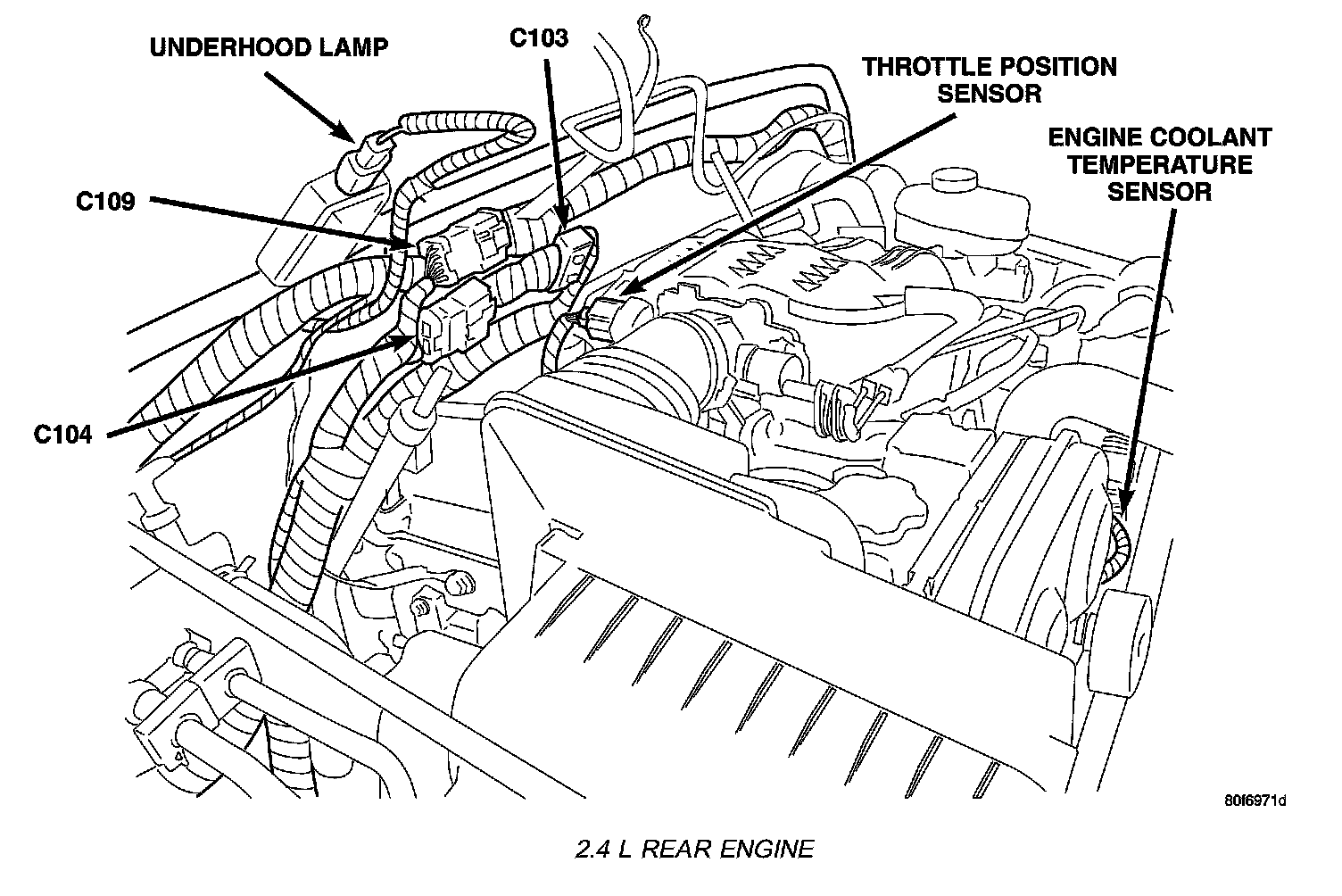

2.4L Rear Engine:
