Cruise Control Servo: Service and Repair

SERVO - SPEED CONTROL

REMOVAL

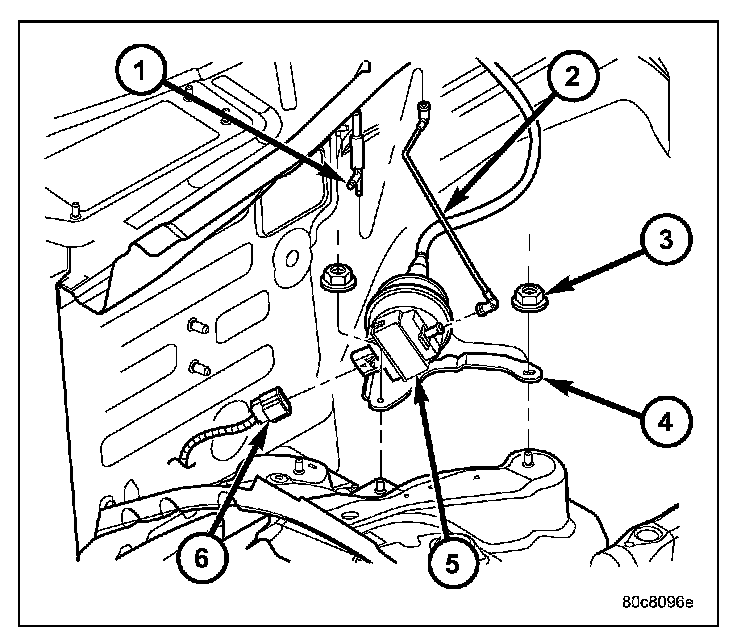

1. Disconnect negative battery cable at battery.
2. Disconnect vacuum line (2) at servo.
3. Disconnect electrical connector (6) at servo.
4. Remove coolant bottle nuts/bolts. Position bottle forward a few inches.
5. Disconnect servo cable at throttle body.
6. Remove servo bracket mounting nuts (3).

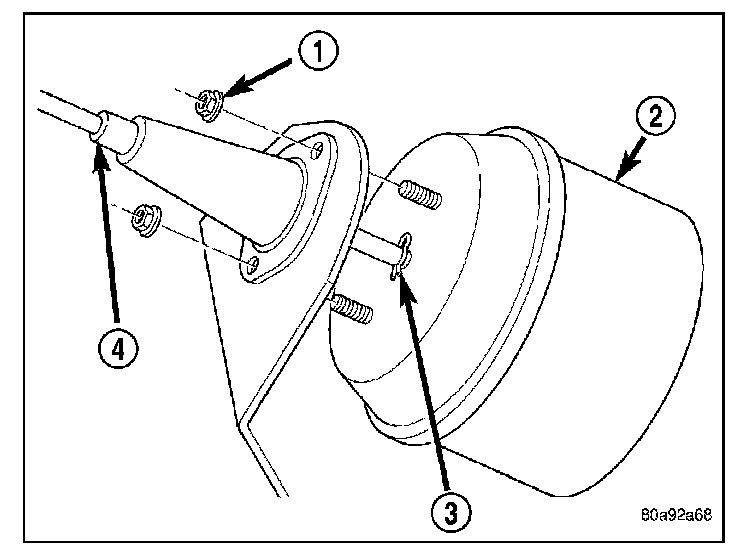

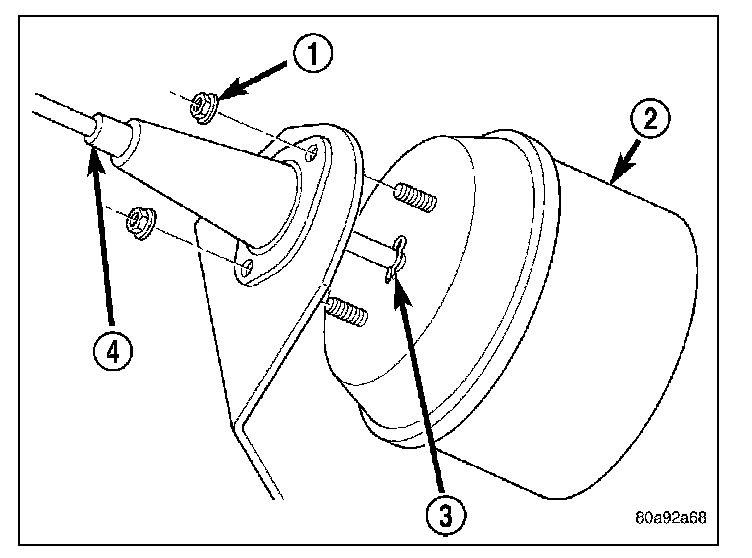

7. Remove two mounting nuts (1) holding servo cable sleeve to bracket.
8. Pull speed control cable sleeve and servo away from servo mounting bracket to expose cable retaining clip (3) and remove clip. Note: The servo mounting bracket displayed in graphic is a typical bracket and may/may not be applicable to this model vehicle.
9. Remove servo from mounting bracket. While removing, note orientation of servo to bracket.

INSTALLATION




1. Position servo to mounting bracket.
2. Align hole in cable connector with hole in servo pin. Install cable-to-servo retaining clip (3).
3. Insert servo mounting studs through holes in servo mounting bracket.
4. Install servo-to-mounting bracket nuts (1) and tighten. Refer to torque specifications.




5. Install servo mounting bracket-to-body nuts (3) and tighten. Refer to torque specifications.
6. Connect vacuum line (2) at servo.
7. Connect electrical connector (6) at servo.
8. Connect servo cable to throttle body.
9. Install coolant bottle.
10. Connect negative battery cable to battery.
11. Before starting engine, operate accelerator pedal to check for any binding.
