Engine Control Module

Module - Powertrain Control C1:



Module - Powertrain Control C2:

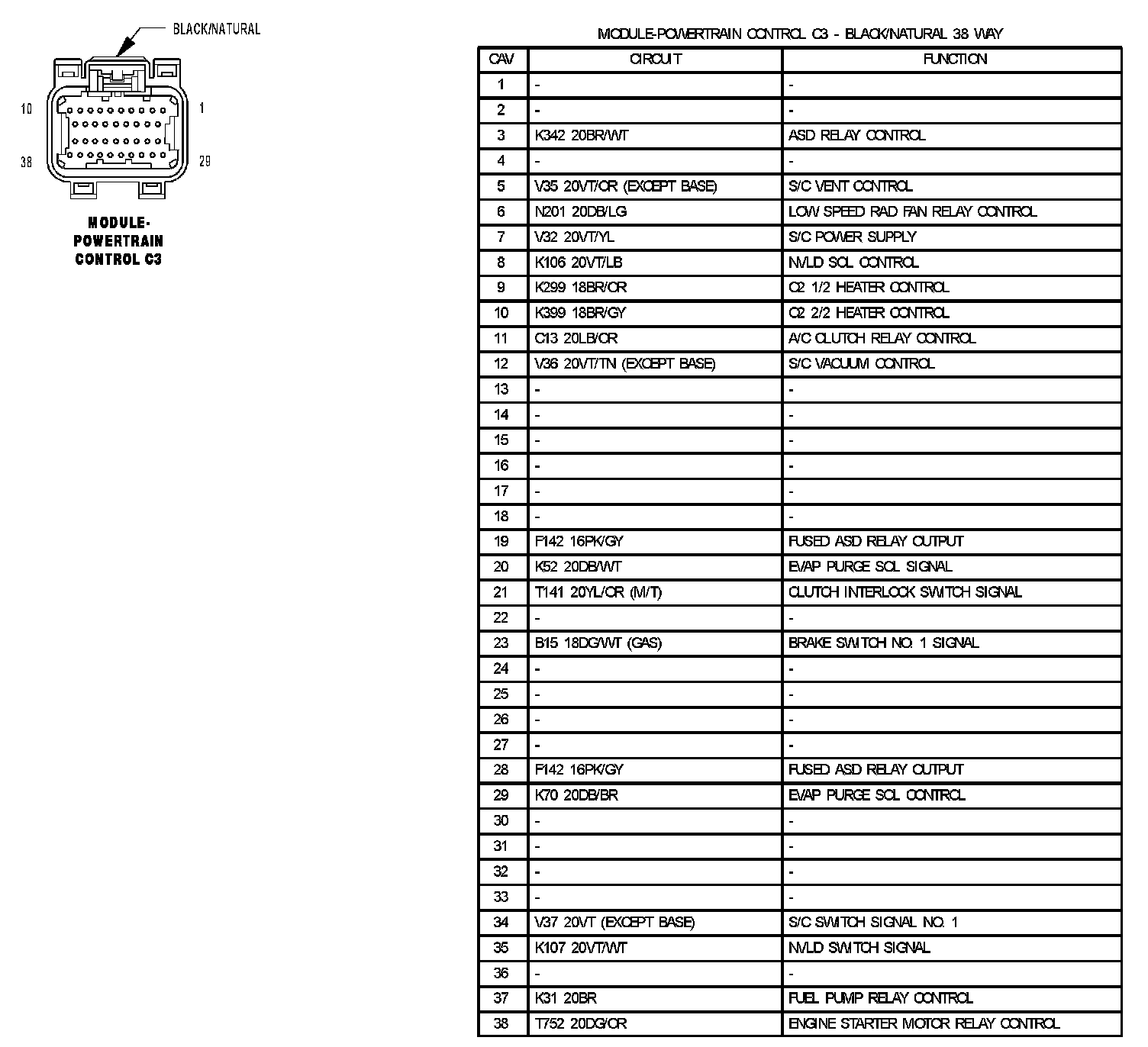

Module - Powertrain Control C3:



Module - Powertrain Control C4 (3.7L A/T):
