Body Code Plate

BODY CODE PLATE

DESCRIPTION

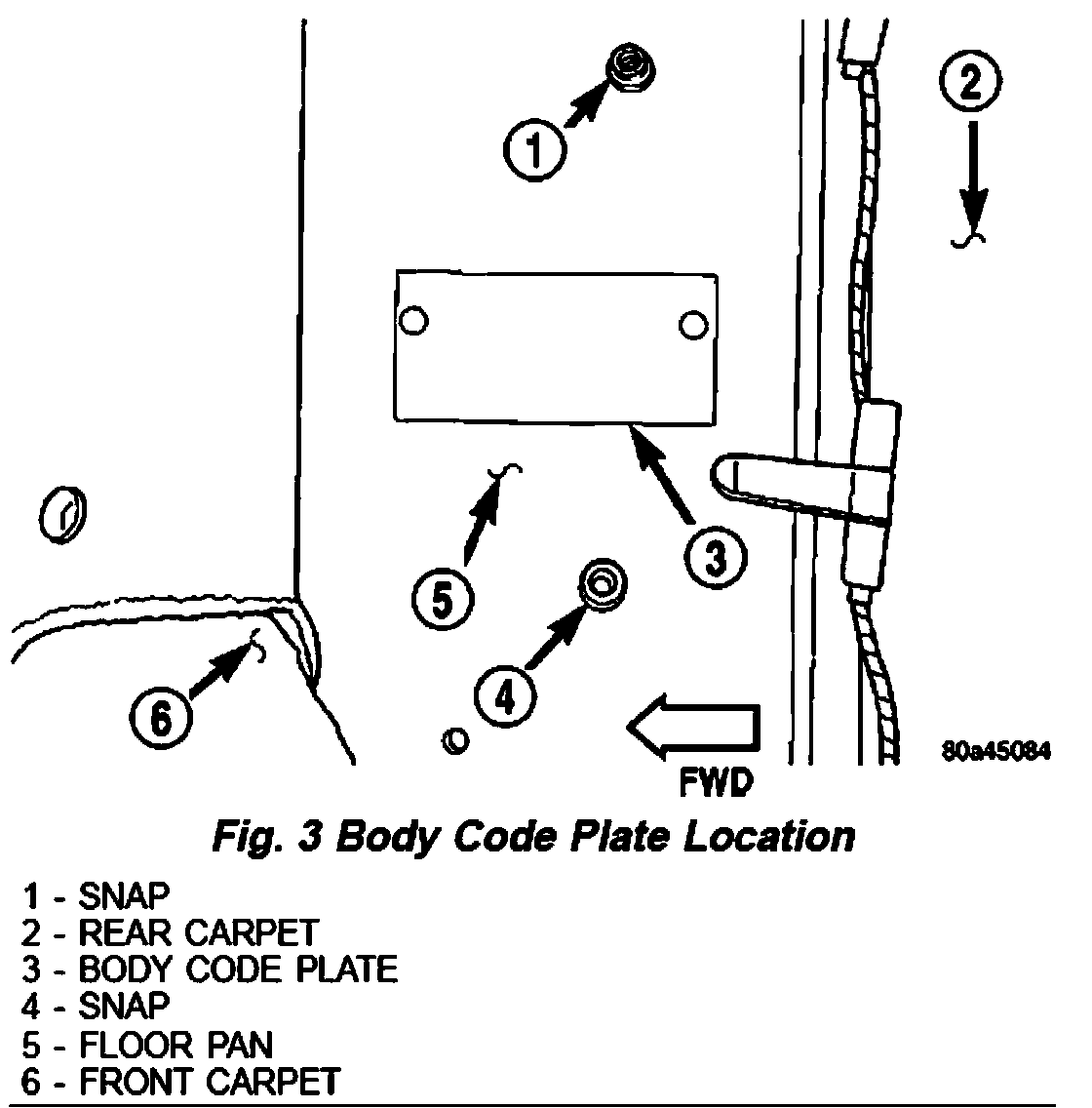

Fig. 3:

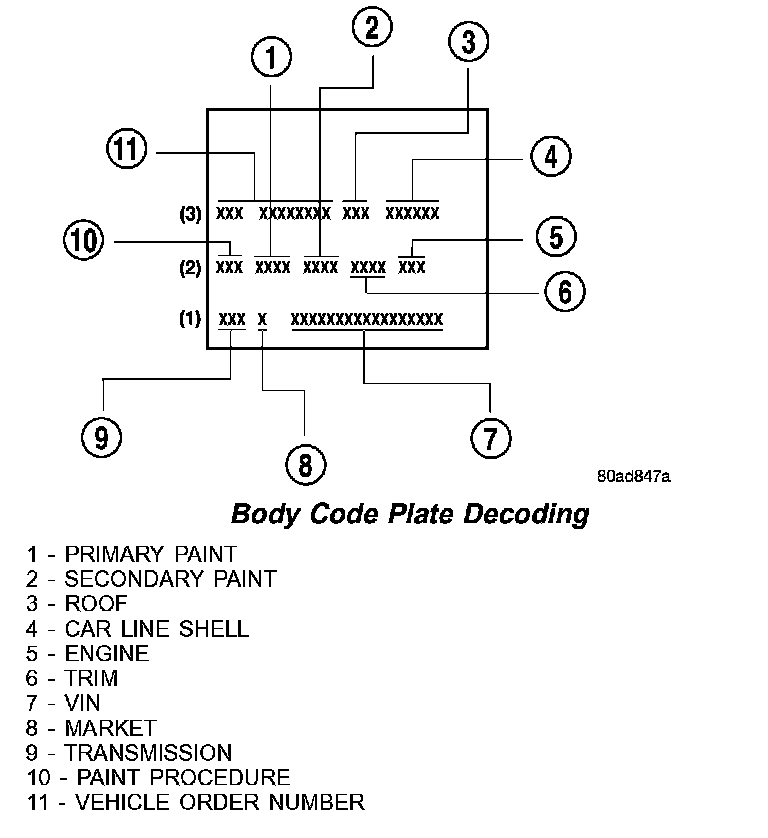

Body Code Plate Decoding:

A metal body code plate is attached to the floor pan under the drivers seat. Disengage the snaps attaching the carpet to the floor pan to read the information. There are seven lines of information on the body code plate. Lines 4, 5, 6, and 7 are not used to define service information. Information reads from left to right, starting with line 3 in the center of the plate to line 1 at the bottom of the plate.

The last code imprinted on a vehicle code be followed by the imprinted word END. vehicle code plates are required, the last spaces on the first plate will be imprinted letters CTD (for continued).

When a second vehicle code plate is necessary, the first four spaces on each row will not be used because of the plate overlap.

BODY CODE PLATE - LINE 3
DIGITS 1 THROUGH 12

Vehicle Order Number

DIGITS 13, 14, AND 15
Roof
- VJB = Soft Top Medium Gray
- VJC = Soft Top Medium Khaki
- VJG = Soft Top Dark Green
- VJK = Soft Top Dark Khaki
- VKB = Hard Top Medium Gray
- VKC = Hard Top Medium Khaki

DIGITS 16, 17, AND 18
Car Line Shell
- TJJ = Wrangler (LHD)
- TJU = Wrangler (RHD)

DIGIT 19
Price Class
- L = Wrangler (All)

DIGITS 20 AND 21
Body Type
- 77 = Wheel Base (93.4 in.)
- 78 = Wheel Base (103.4 in.)

BODY CODE PLATE - LINE 2

DIGITS 1,2, AND 3
Paint Procedure

DIGIT 4
Open Space

DIGITS 5 THROUGH 8
Primary Paint for color codes.

DIGIT 9
Open Space

DIGITS 10 THROUGH 13
Secondary Paint

DIGIT 14
Open Space

DIGITS 15 THROUGH 18
Interior Trim Code

DIGIT 19
Open Space

DIGITS 20, 21, AND 22
Engine Code
- ED1 = 2.4L 4 cyl. MPI Gasoline
- ERH = 4.0L 6 cyl. MPI Gasoline

BODY CODE PLATE - LINE 1

DIGITS 1, 2, AND 3

Transmission Codes
- DEH = NSG370 6 - speed Manual
- DG6 = 42RLE 4 - speed Automatic

DIGIT 4
Open Space

DIGIT 5
Market Code
- B = International

DIGIT 6
Open Space

DIGITS 7 THROUGH 23
Vehicle Identification Number (VIN)
