System Specifications

AUTOMATIC TRANSMISSION - 42RLE

SPECIFICATIONS

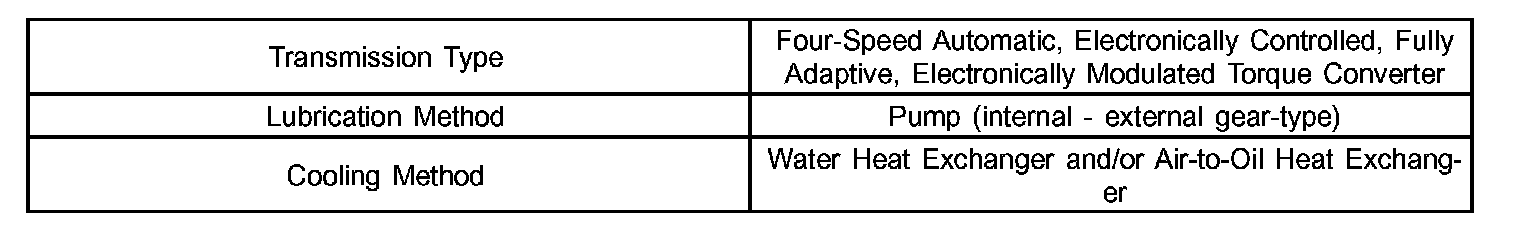

GENERAL SPECIFICATIONS 42RLE AUTOMATIC TRANSMISSION:

GENERAL SPECIFICATIONS

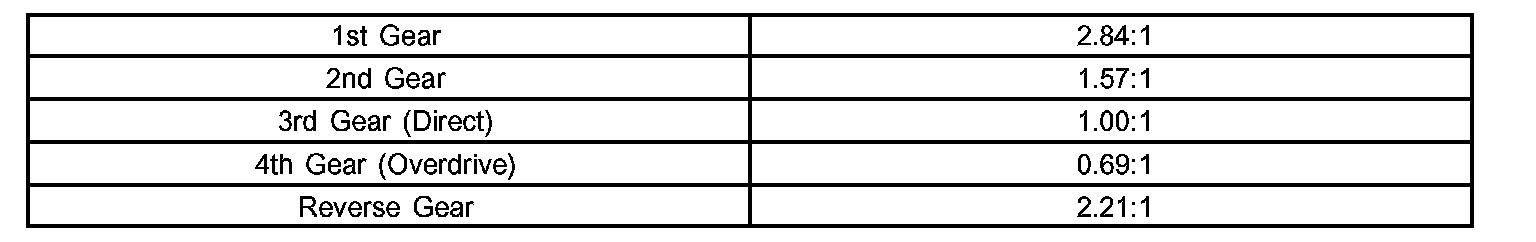

GEAR RATIOS 42RLE AUTOMATIC TRANSMISSION:

GEAR RATIOS

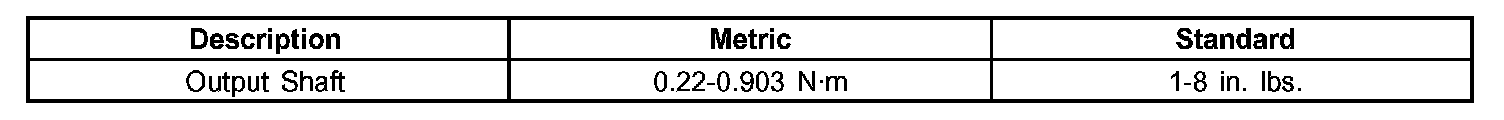

BEARING PRELOAD (DRAG TORQUE) 42RLE AUTOMATIC TRANSMISSION:

BEARING PRELOAD (DRAG TORQUE)

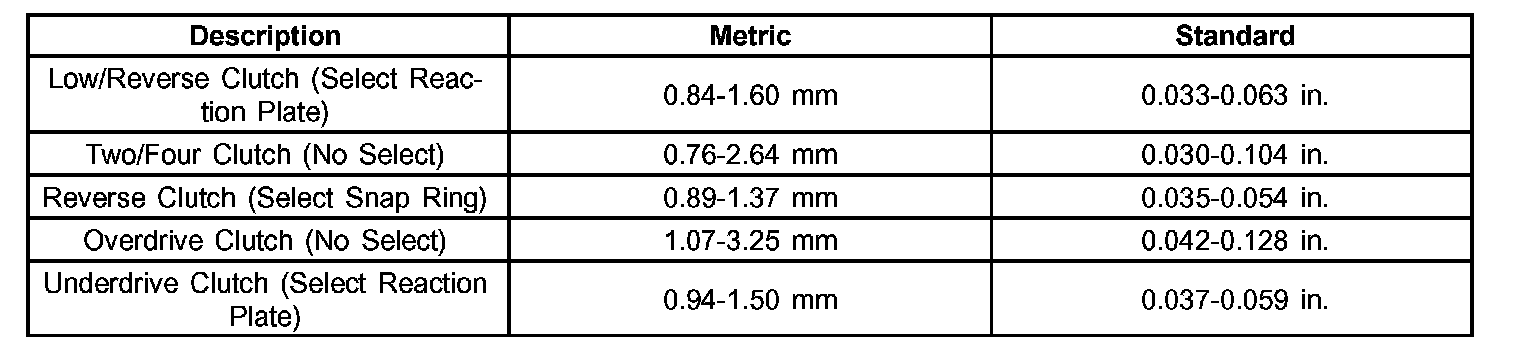

CLUTCH PACK 42RLE AUTOMATIC TRANSMISSION:

CLUTCH PACK

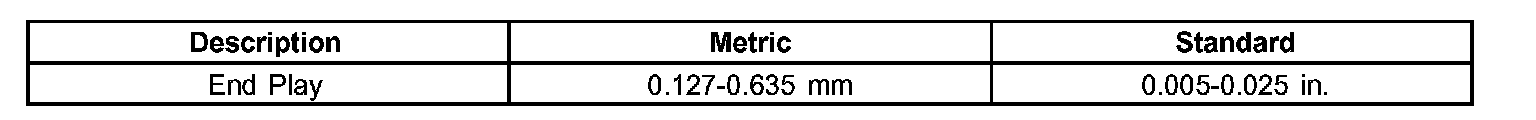

INPUT SHAFT 42RLE AUTOMATIC TRANSMISSION:

INPUT SHAFT

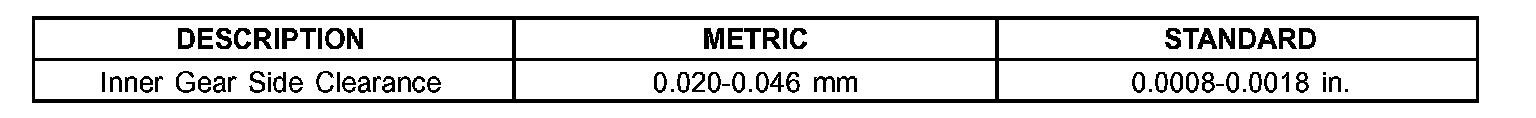

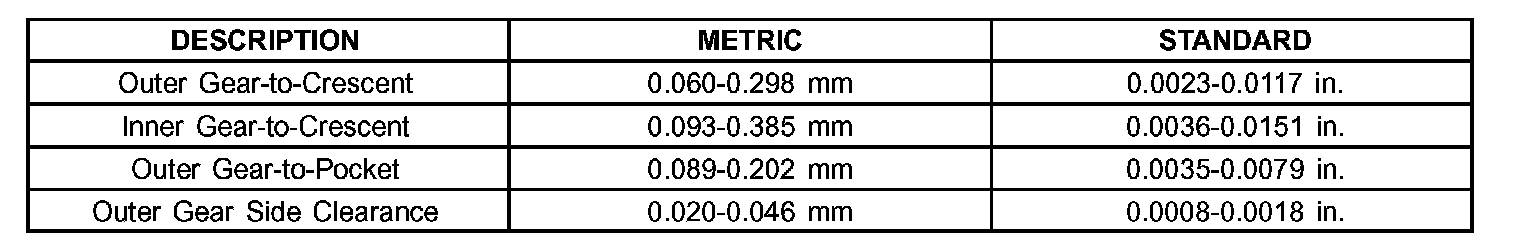

OIL PUMP CLEARANCES 42RLE AUTOMATIC TRANSMISSION (PART 1):

OIL PUMP CLEARANCES 42RLE AUTOMATIC TRANSMISSION (PART 2):

OIL PUMP CLEARANCES

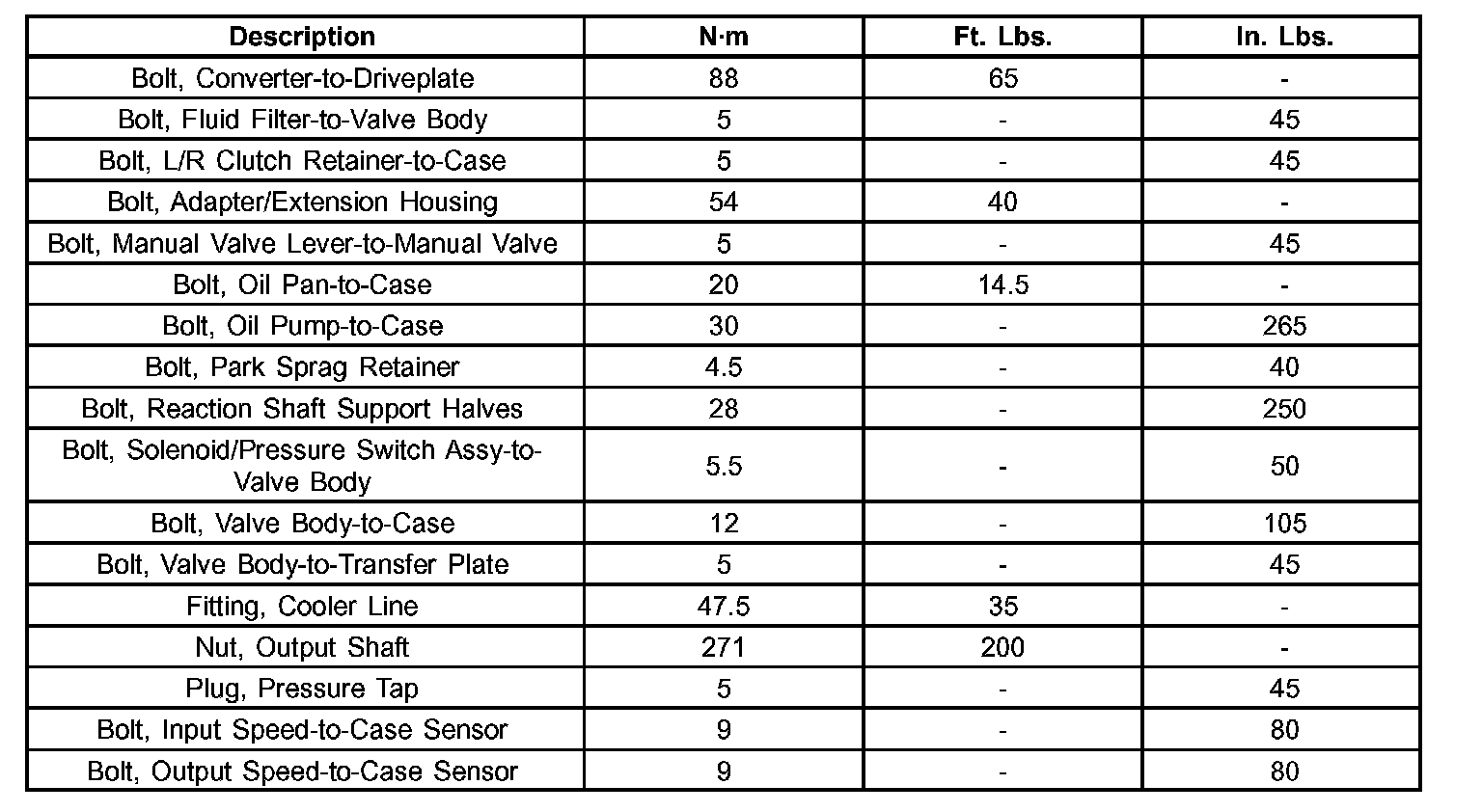

AUTOMATIC TRANSMISSION - 42RLE TORQUE SPECIFICATIONS:

TORQUE SPECIFICATIONS
