Jeep Truck
>>
2006
>>
Wrangler L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Locations
>>
Connector Locations
Connector Locations

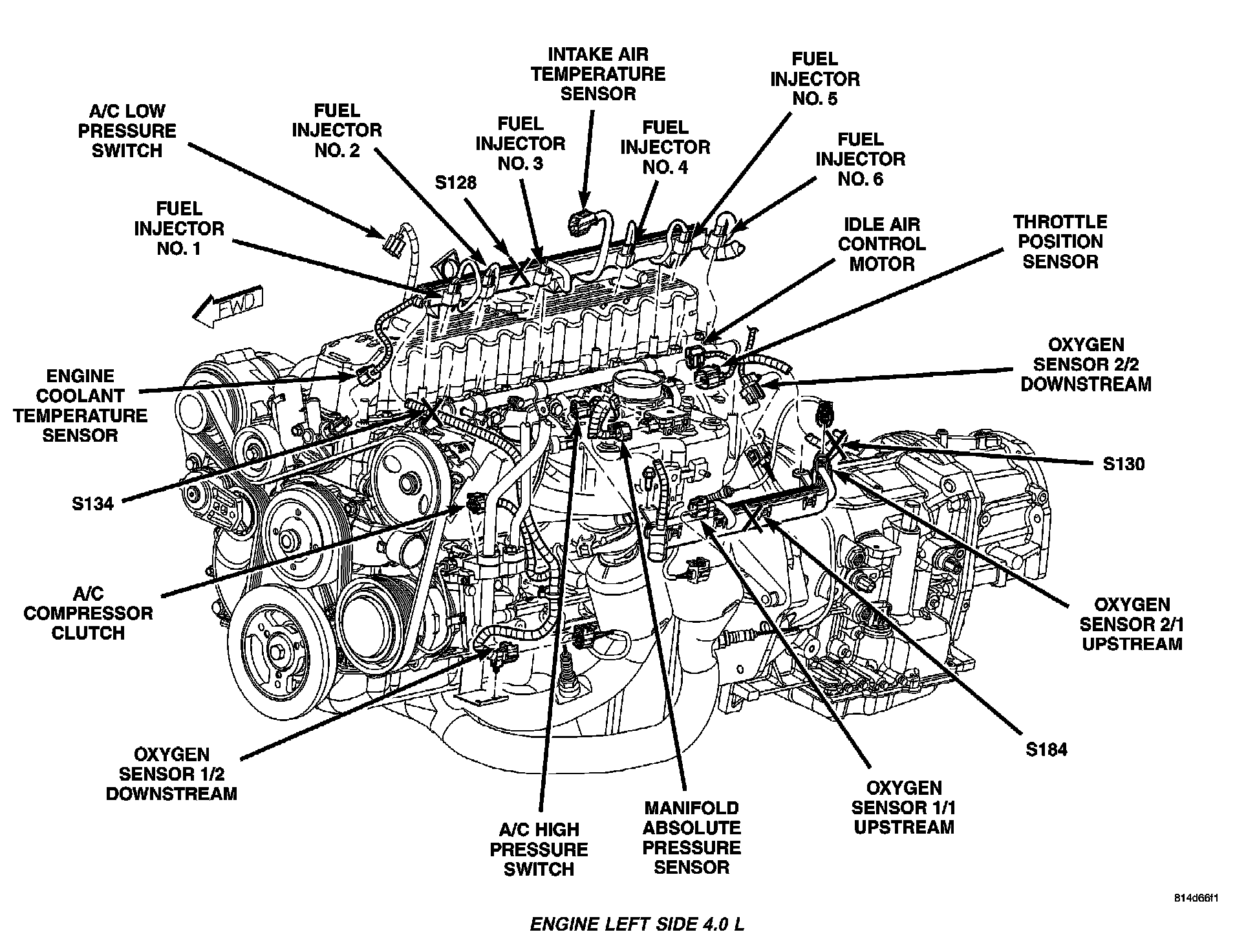

Engine Left Side 4.0L:
