Alarm Module, (Vehicle Antitheft)

Component ID: 161
Component : MODULE-INTRUSION TRANSCEIVER

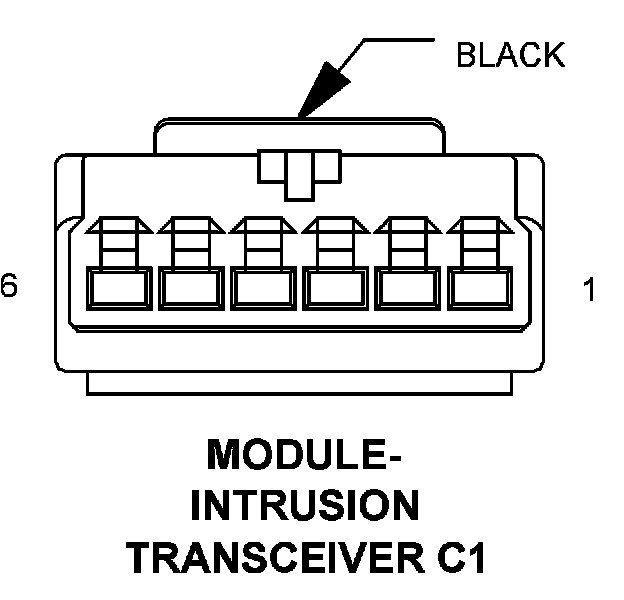

Connector:
Name : MODULE-INTRUSION TRANSCEIVER C1
Color : BLACK
# of pins : 6




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A415 20RD/TN
2 - -
3 CAN B BUS (+) D55 20WT/OR
4 CAN B BUS (-) D54 20WT/PK
5 SIREN SIGNAL CONTROL D96 20WT/BR
6 GROUND Z941 20BK/WT

Component Location - 40




Component Location - 42






Connector:
Name : MODULE-INTRUSION TRANSCEIVER C2
Color : BLACK
# of pins : 3




Pin Description Circuit
1 - -
2 COURTESY LAMPS DRIVER M24 20YL/WT
3 GROUND Z941 20BK/WT

Component Location - 40




Component Location - 42
