Fuel System - Specifications

SPECIFICATION

SENSOR

MANIFOLD ABSOLUTE PRESSURE SENSOR (MAPS)

- Type: Piezo-resistive pressure type

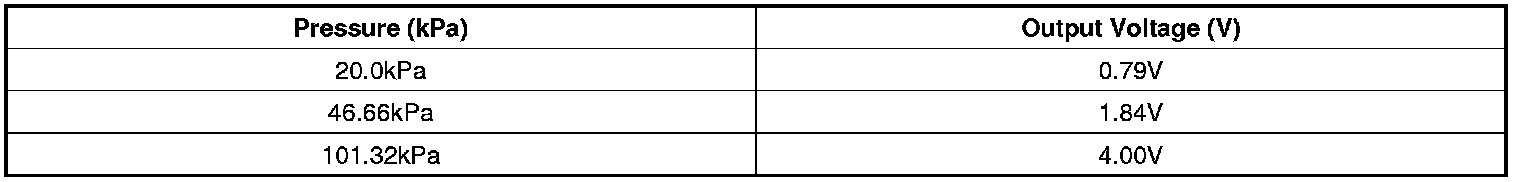

- Specification
