Electronic Brake Control Module: Testing and Inspection

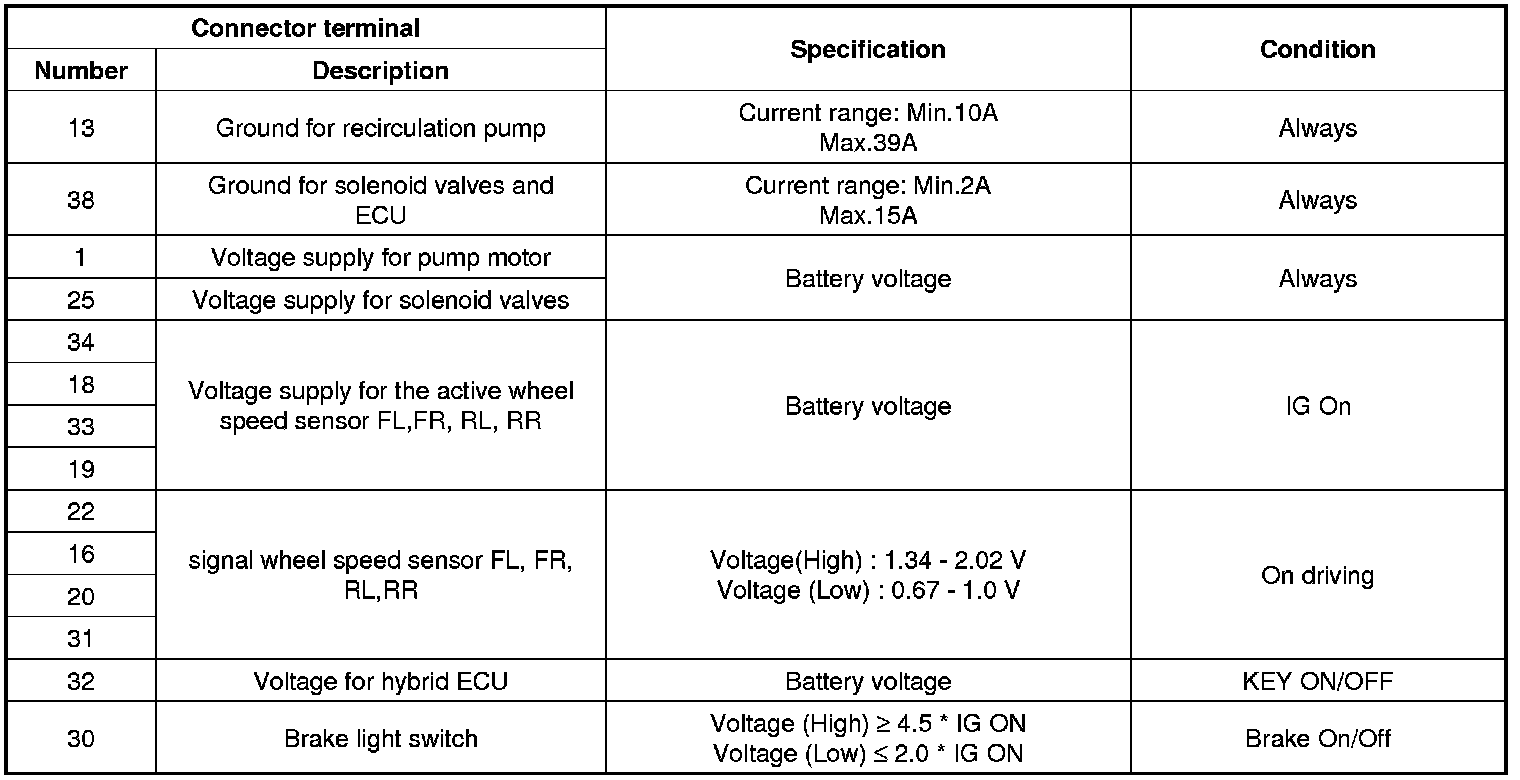

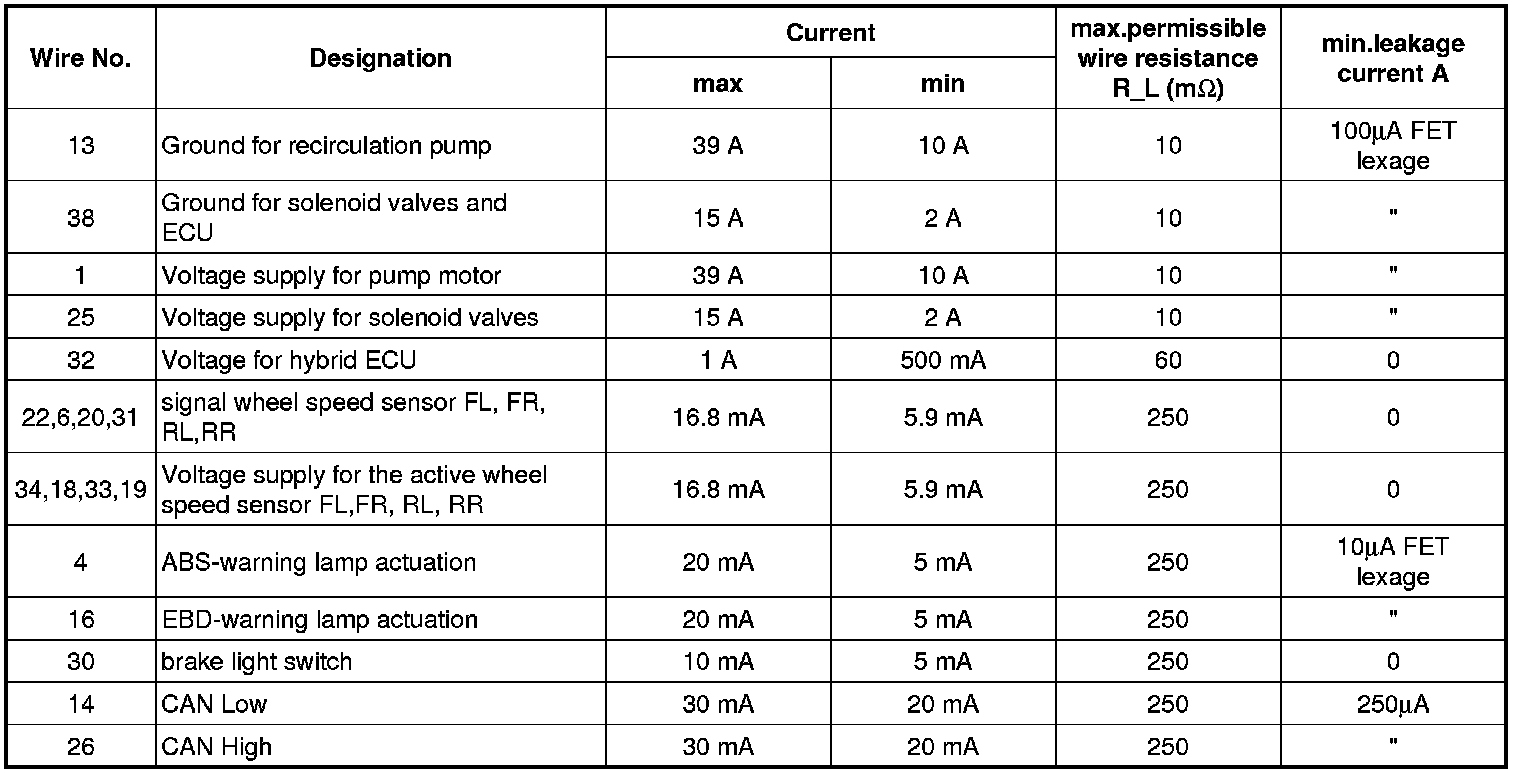

ECU Connector Input/Output(ABS)

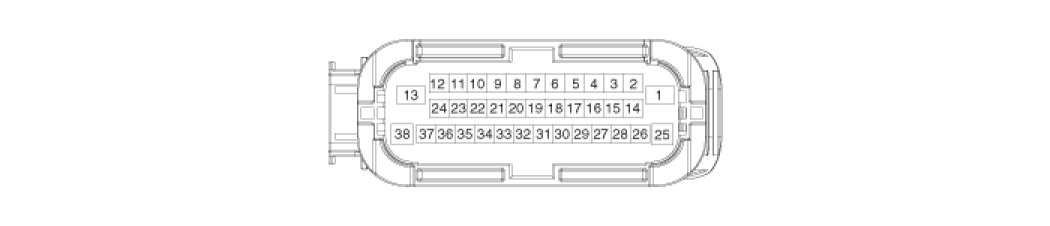

ABS Hecu Connector

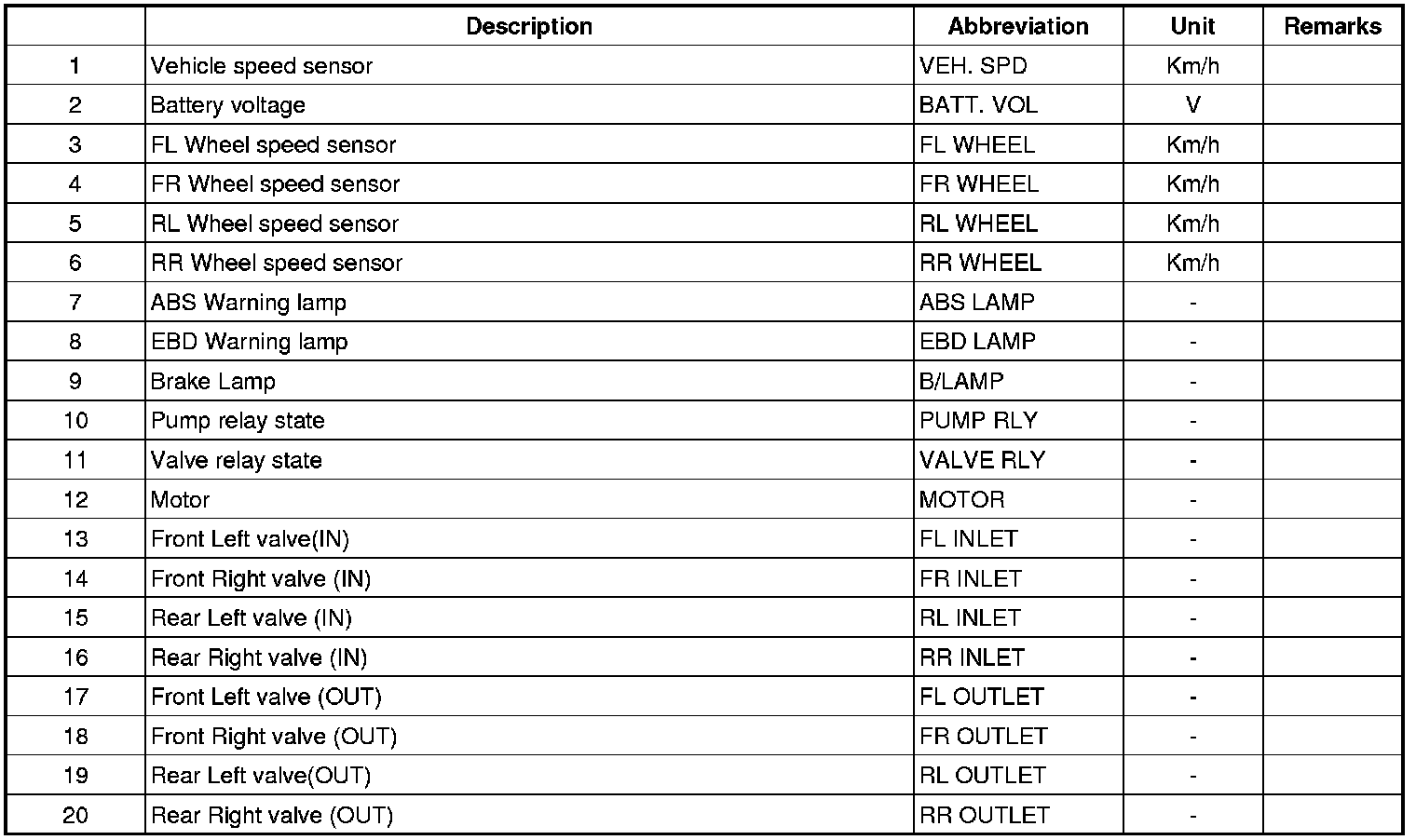

Sensor Output On GDS(ABS)
