Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia Truck
>>
2010
>>
Sedona V6-3.8L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Air Flow Meter/Sensor
>>
Fuel System
Fuel System
SENSOR

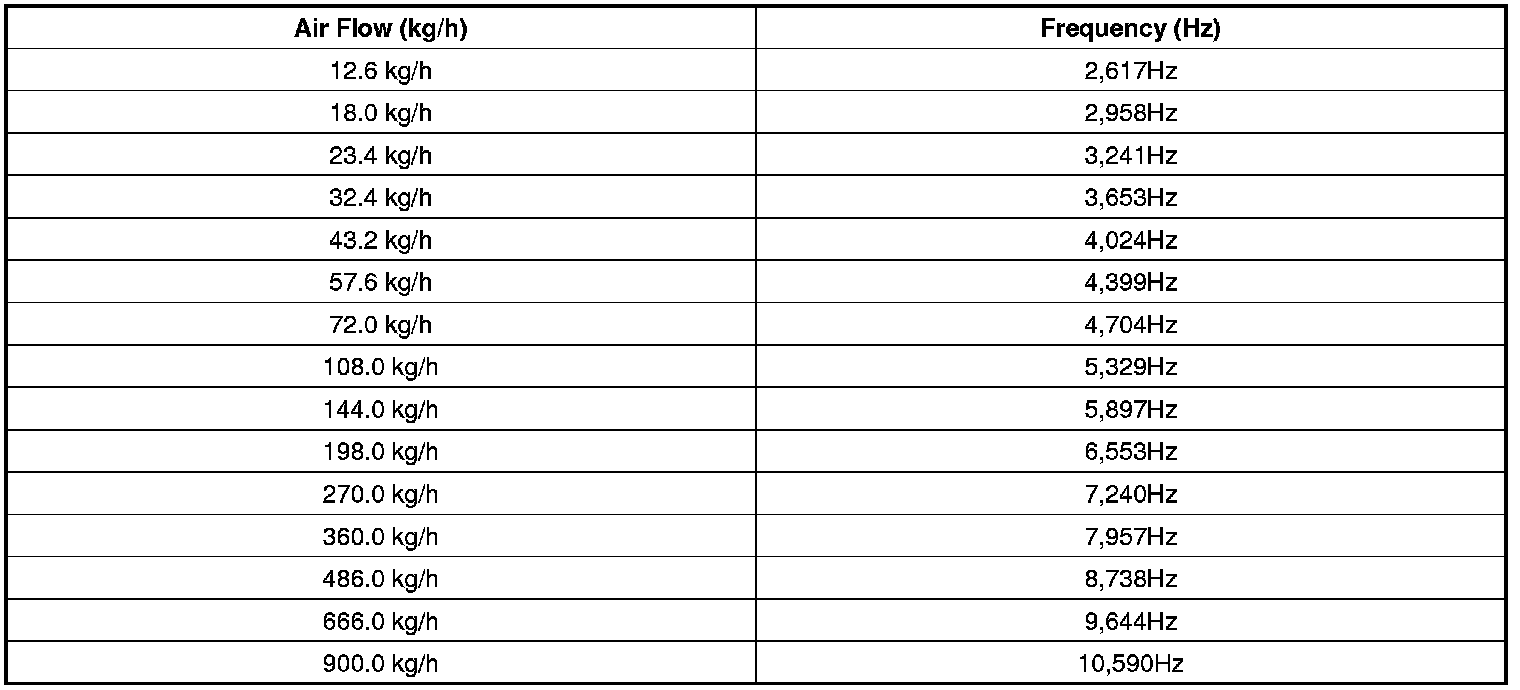

MASS AIR FLOW SENSOR (MAFS)
- Type: Hot-film type
- Specification
