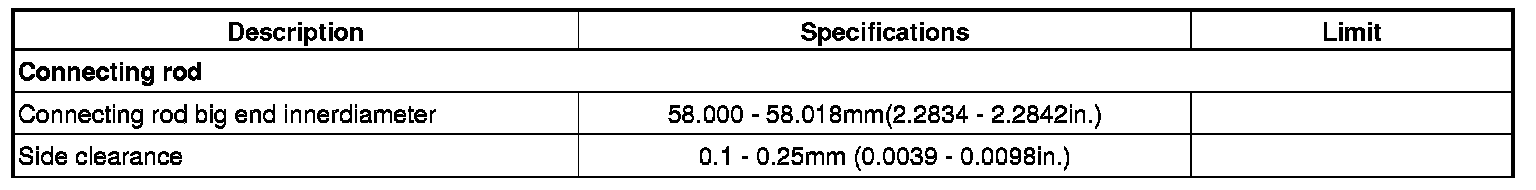

Connecting Rod

Connecting Rod






Standard end play 0.1 - 0.25 mm(0.004 - 0.010 in.)

Allowable bend of connecting rod : 0.05mm / 100mm (0.0020 in./3.94 in.) or less

Allowable twist of connecting rod : 0.1mm / 100mm (0.0039 in./3.94 in.) or less
