Crankshaft

Crankshaft

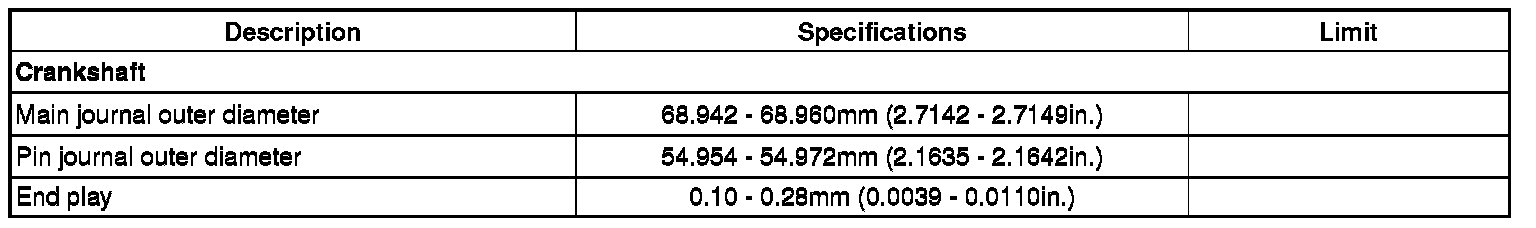

Crankshaft Specifications

Reinstall the bearings and caps, then torque the bolts.

Tightening torque
49.00Nm(5.0 kgf.m, 36.16lb-ft) + 90°
19.60 Nm(2.0 kgf.m, 14.46lb-ft)+ 120°
29.40 - 31.36Nm(3.0 - 3.2 kgf.m, 21.70 - 23.14lb-ft)

Thrust bearing thickness 2.41 - 2.45 mm(0.0949 - 0.0964in.)
