Water Pump

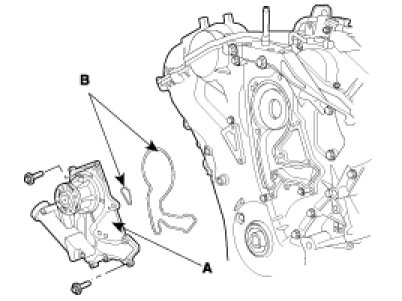

Water pump with 12 bolts

Pump Bolts 21.56 - 23.52 Nm (2.2 - 2.4 kgf.m, 15.91 - 17.36 lb-ft)
9.80 - 11.76 Nm (1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft)






Water pump with 4 bolts

Pump Bolts 7.84 - 9.80 Nm (0.8 - 1.0 kgf.m, 5.78 - 7.23 lb-ft)
