Transaxle Range Switch

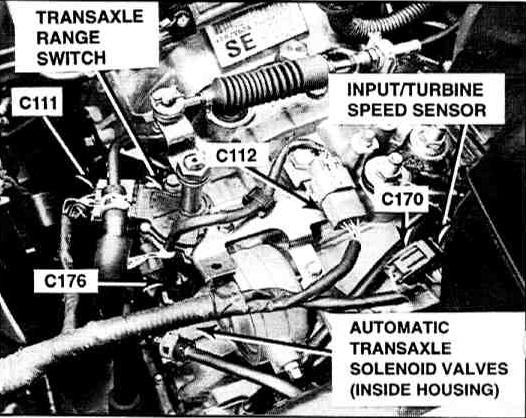

Left Side Of Engine Compartment

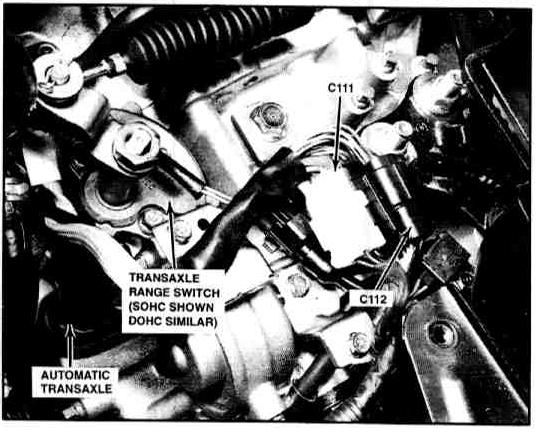

Left Side of Engine Compartment, Above Transaxle

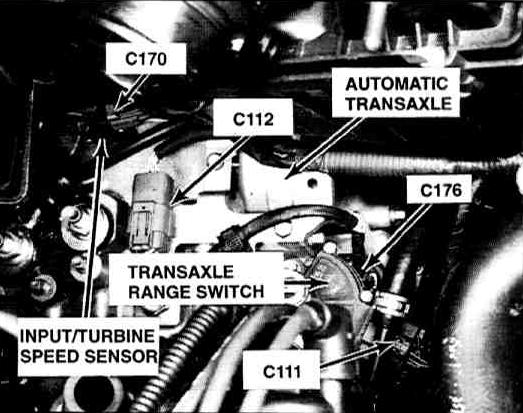

Left Side of Engine Compartment, Above Transaxle
