Interior Lighting Module
Interior Lighting Module

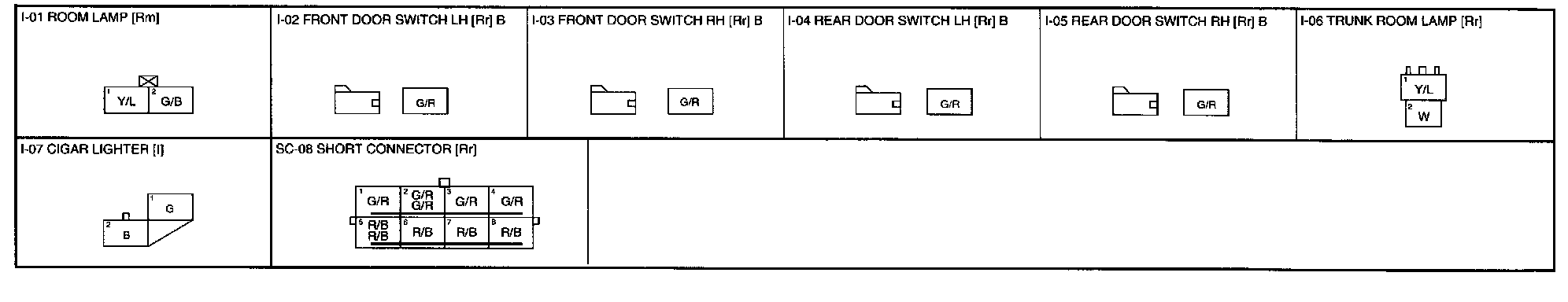

I-1 - Room Lamp, Trunk Room Lamp, Cigar Light Connectors:
