Connector Locations
Connector Locations

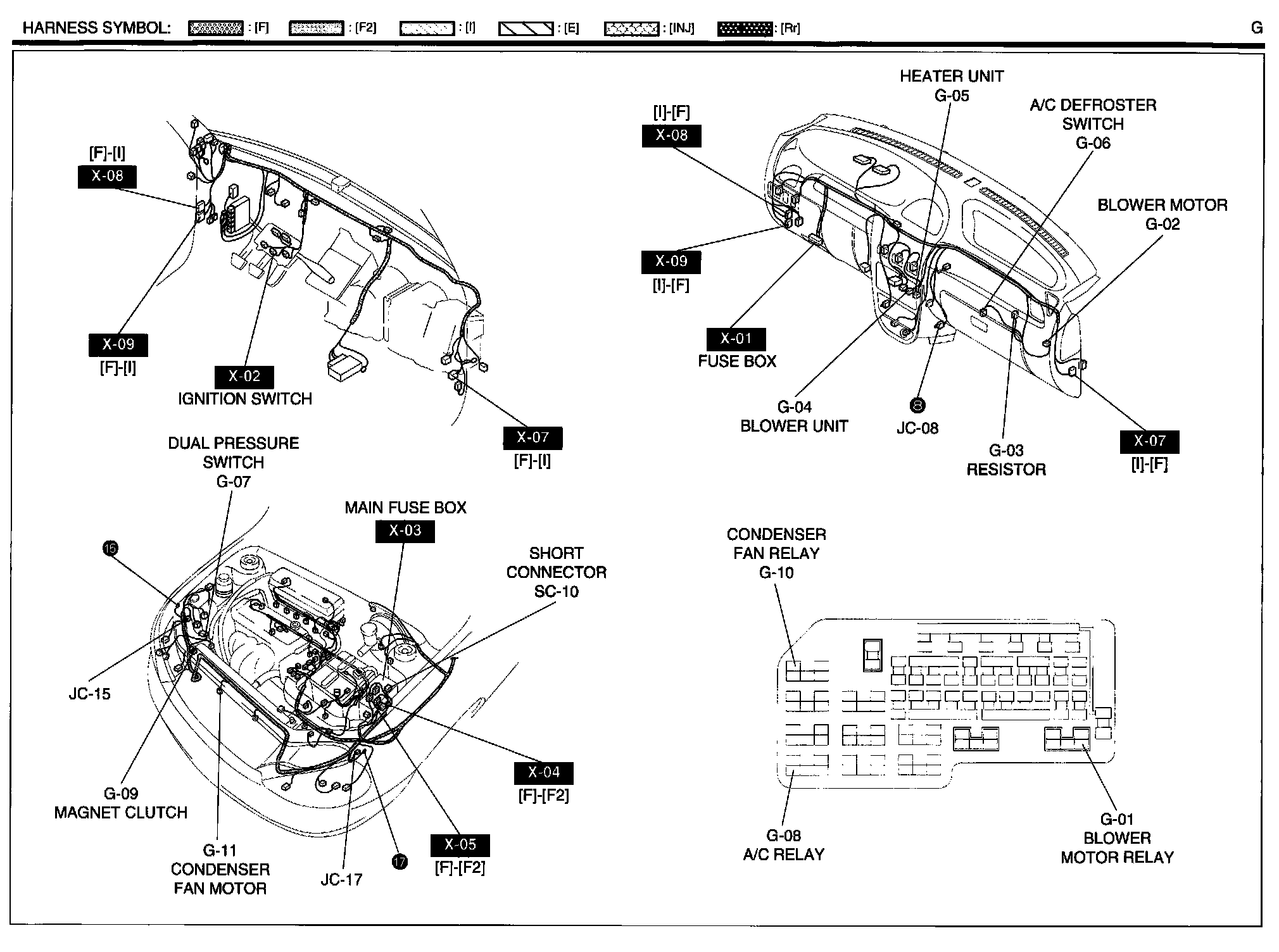

G - Heater And Air Conditioning System Harness/Connector Symbols:
