Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
2001
>>
Spectra GSX L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

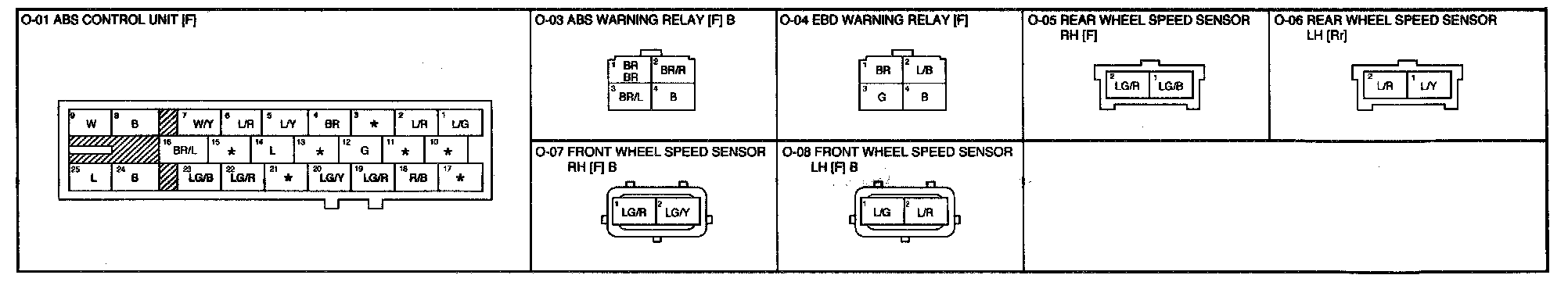

O - Antilock Brake System (ABS) Connectors:
