Home >> Kia >> 2003 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram B-3a

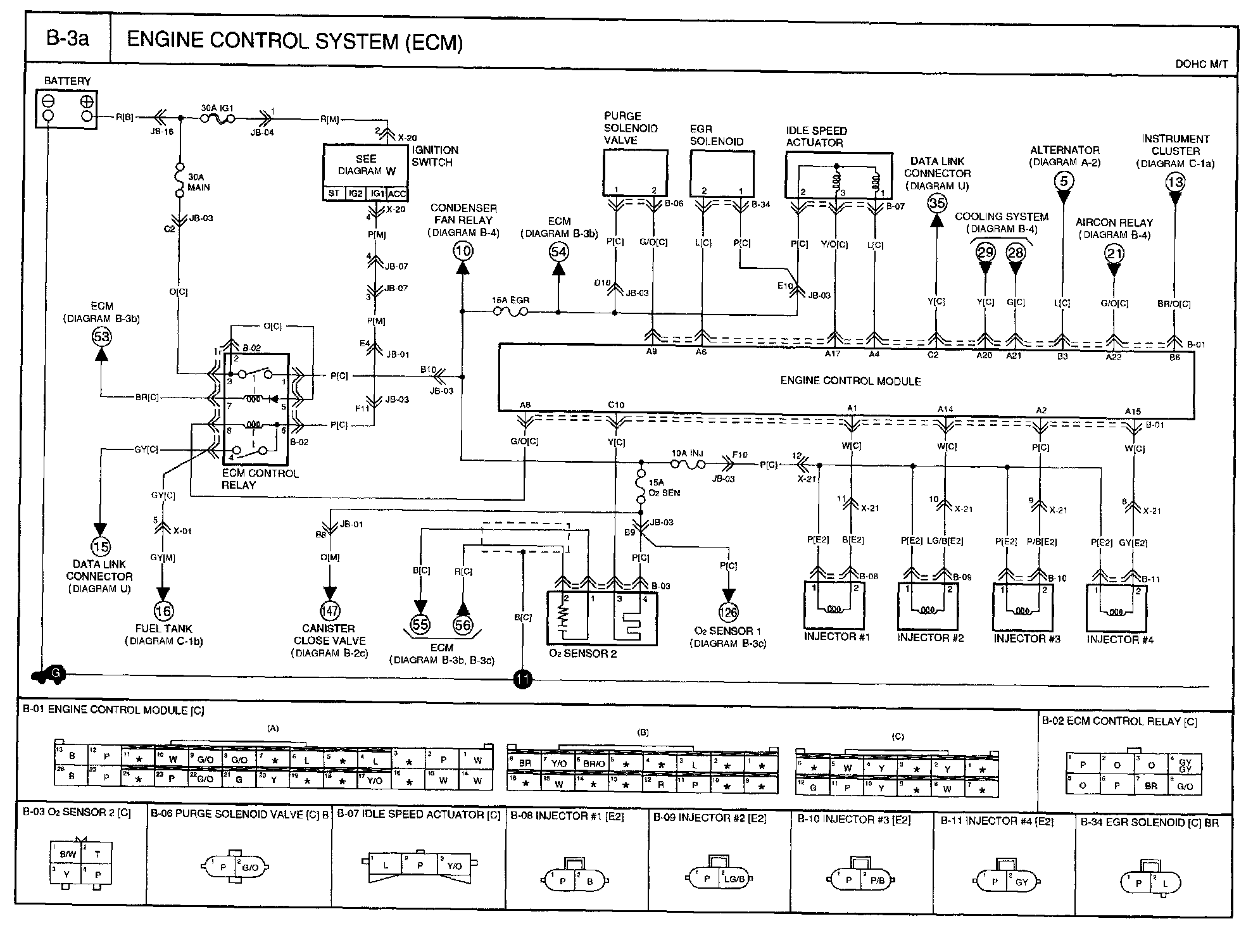

Diagram B-3a

Diagram B-3a:
