Brake Pressure Switch: Locations

ESP/ESC SYSTEM

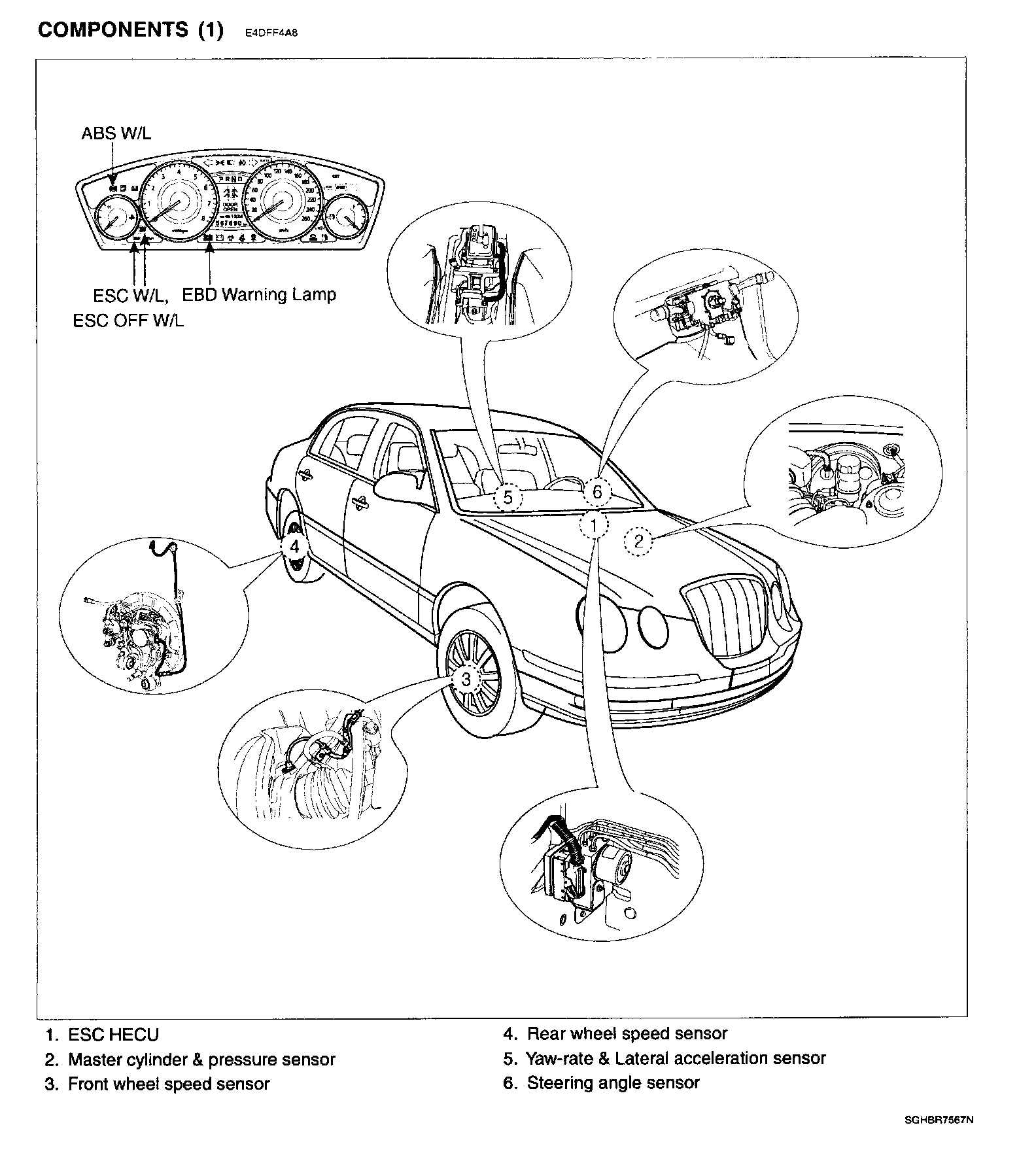

ESP/ESC SYSTEM COMPONENTS (Part 1):

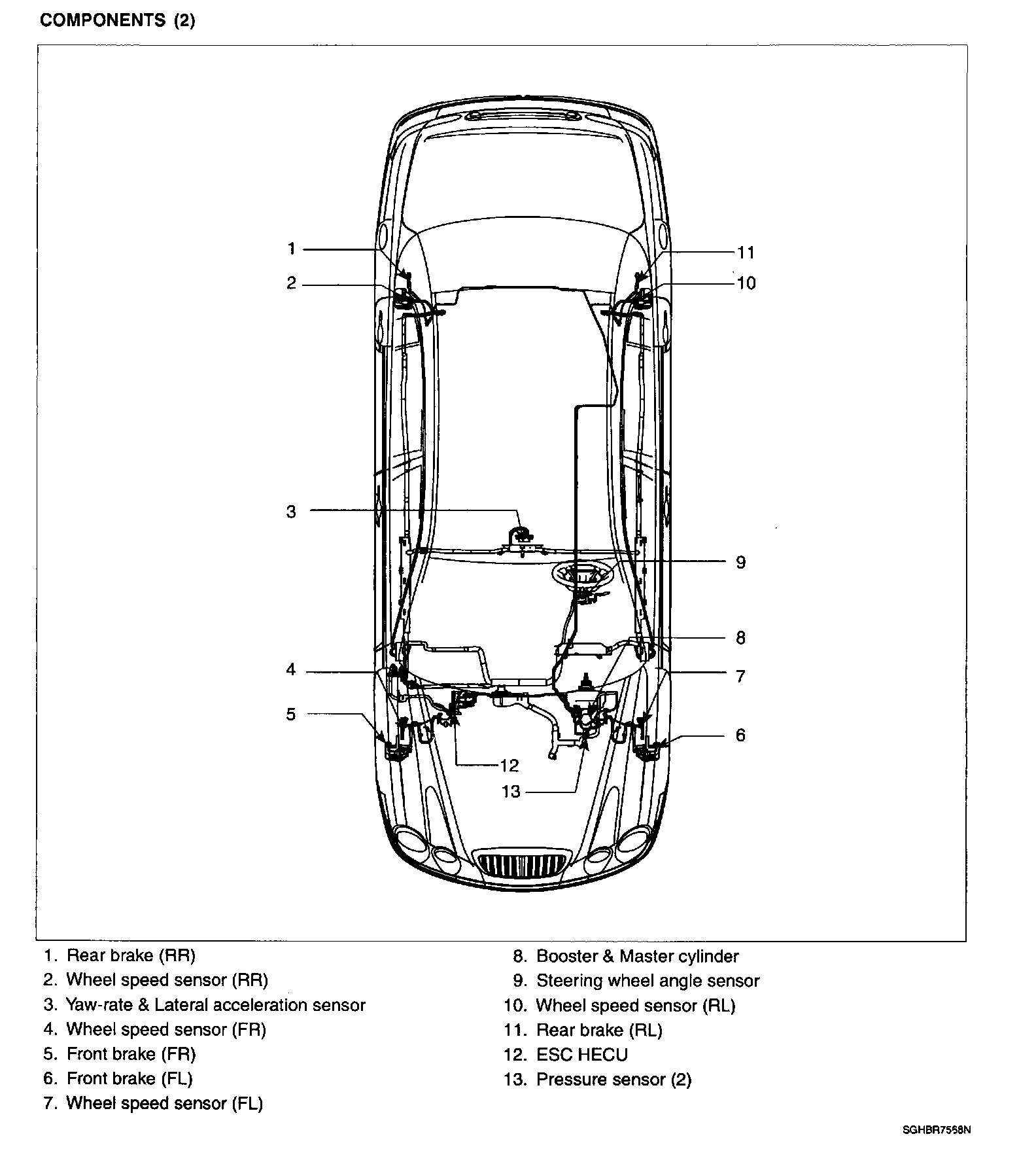

ESP/ESC SYSTEM COMPONENTS (Part 2):
