Home >> Kia >> 2007 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> System Diagram

System Diagram

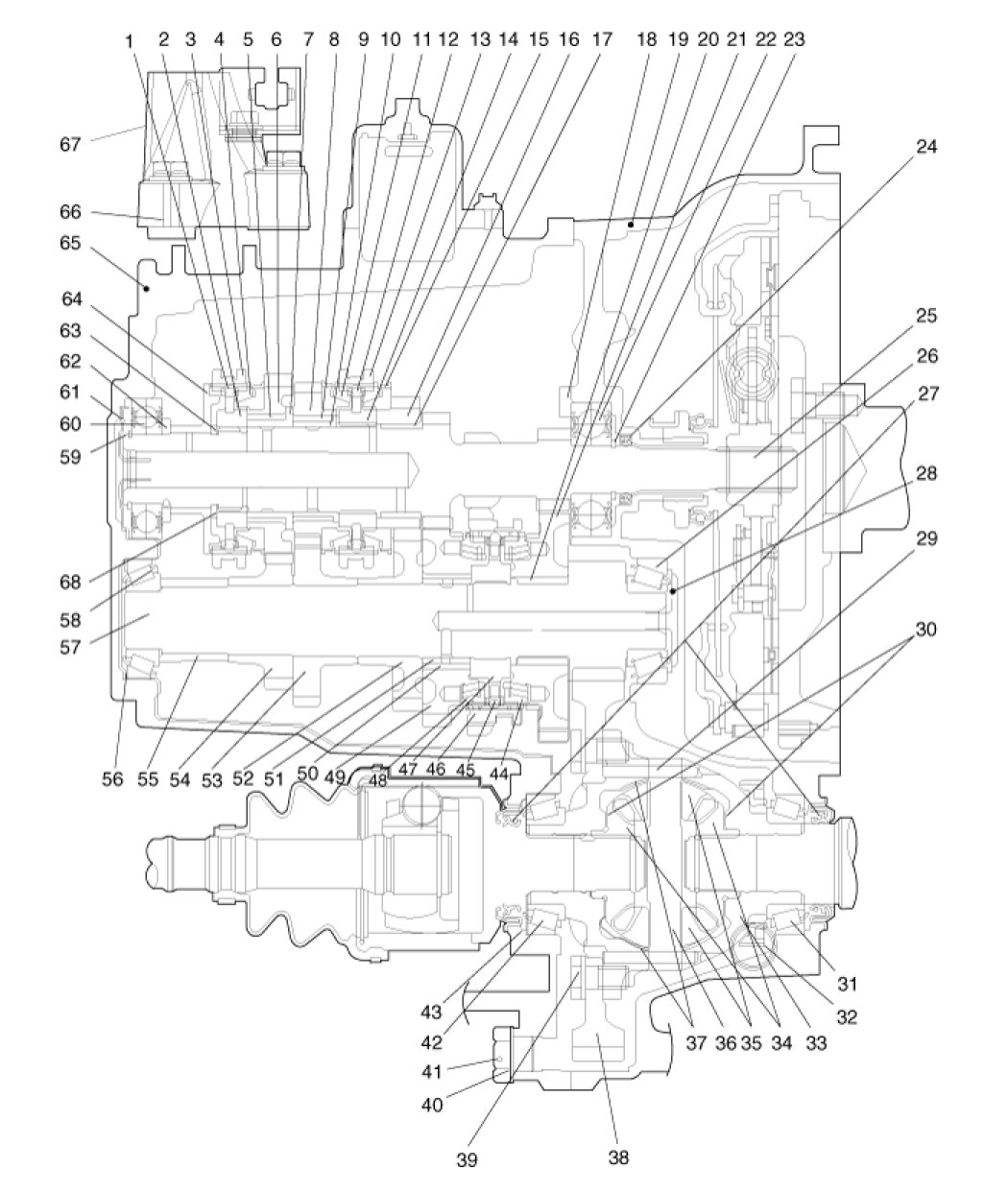

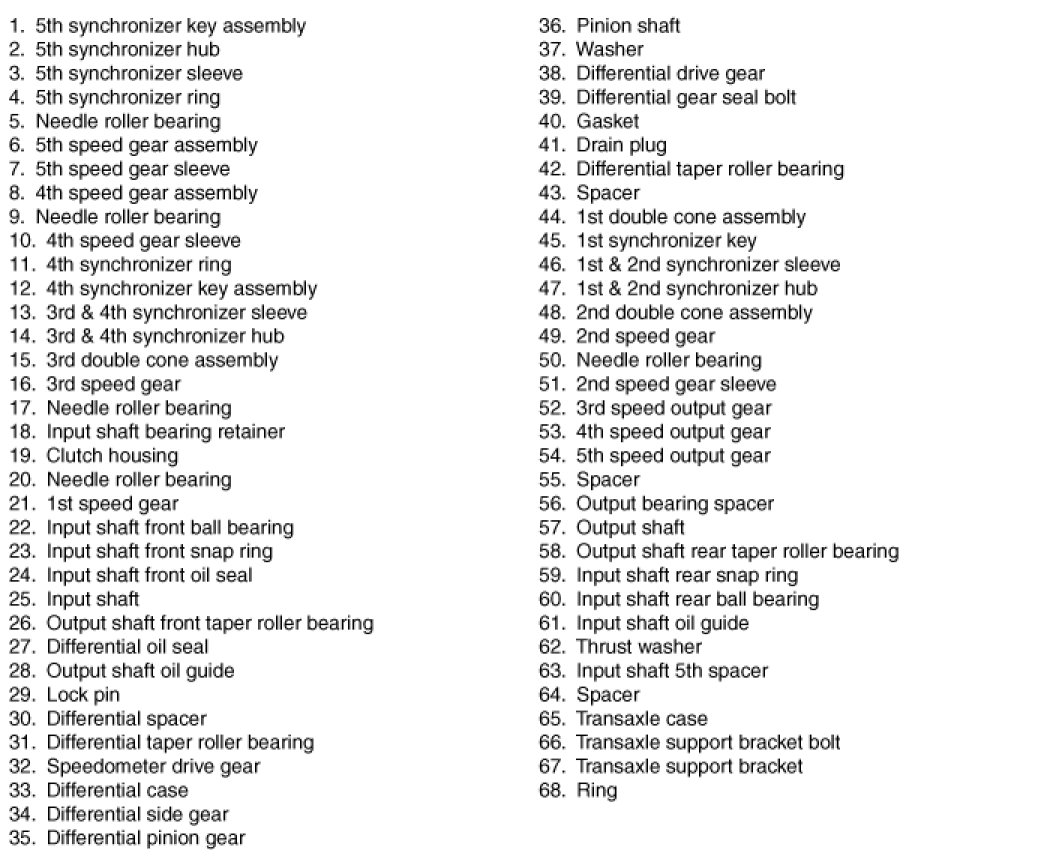

COMPONENTS (1)

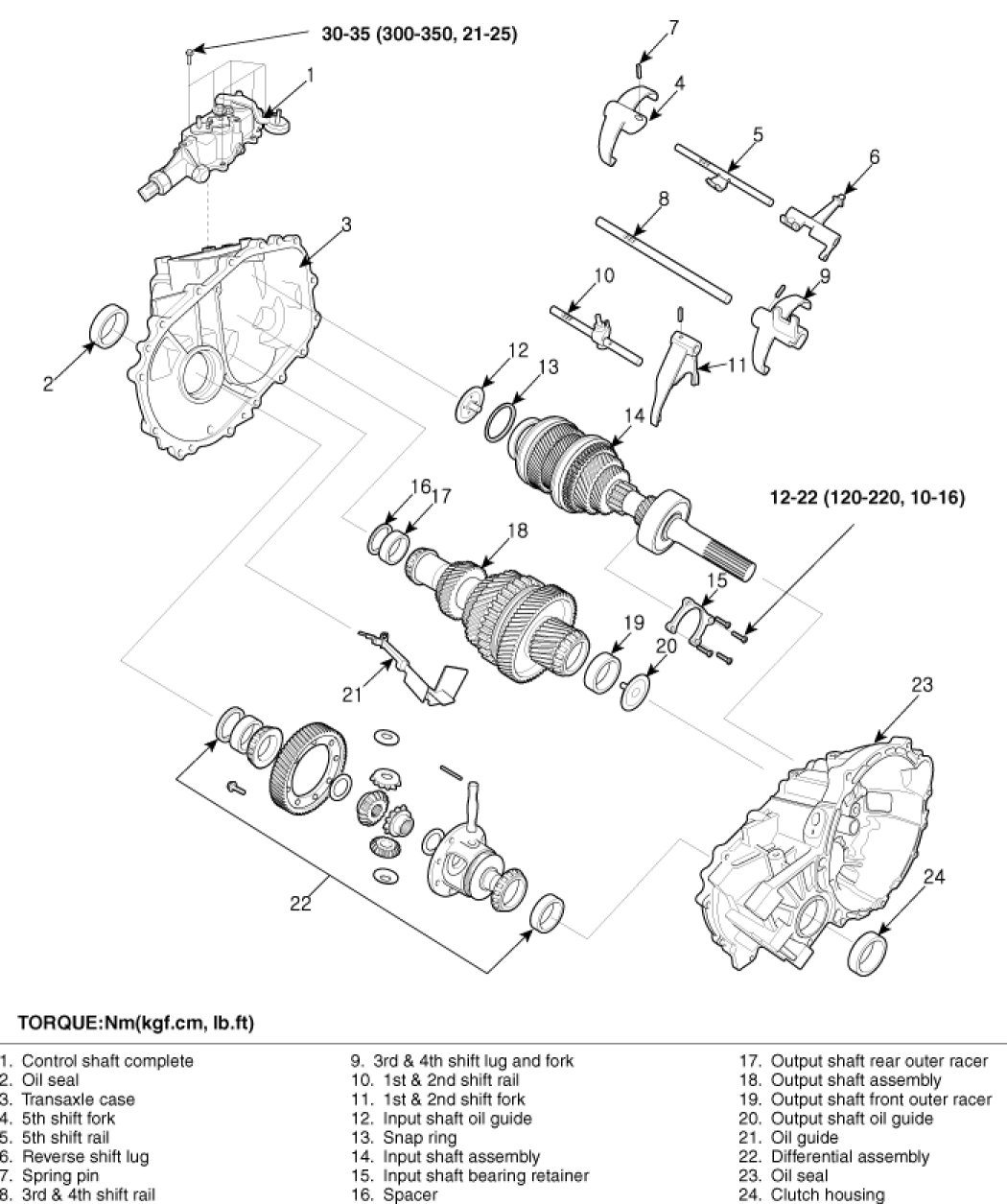

COMPONENTS (2)
