Fuel Tank Pressure Sensor: Specifications




SPECIFICATIONS

INPUT SENSORS

FUEL TANK PRESSURE SENSOR (FTPS)
- Type : Piezo-Resistivity type

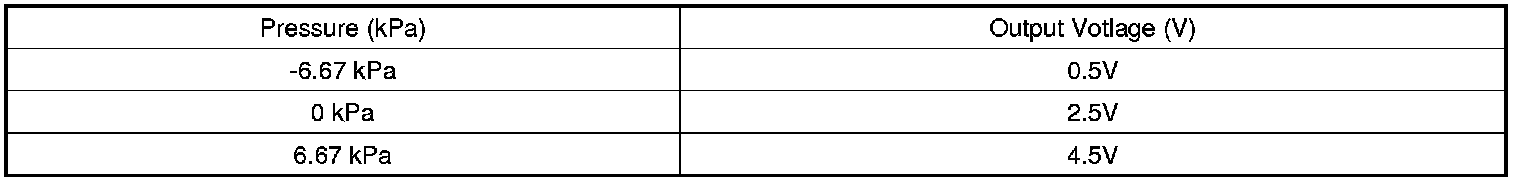

- Specification
