System Specifications

SPECIFICATIONS

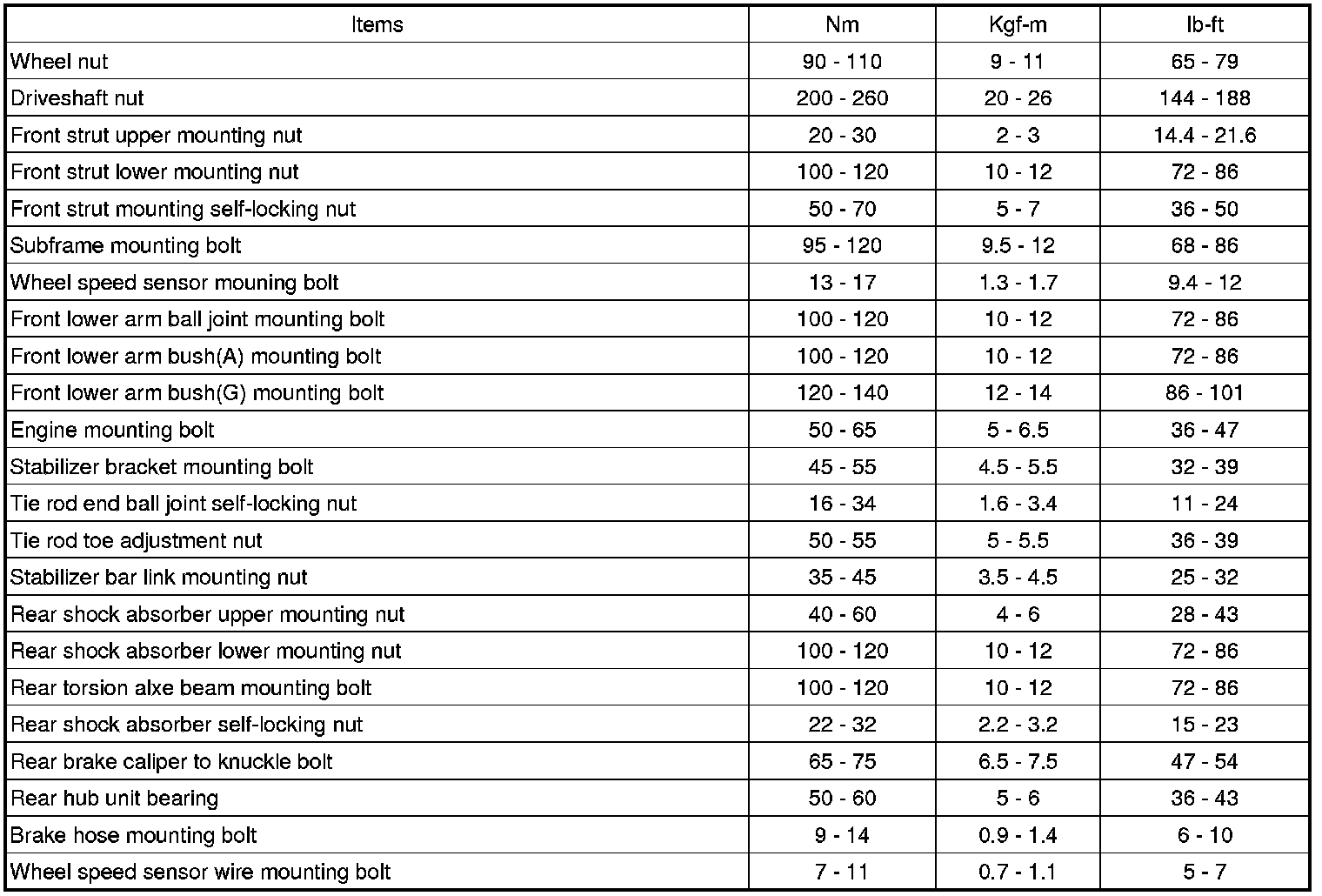

TIGHTENING TORQUE

CAUTION:
Replace the self-locking nuts with new ones after removal.

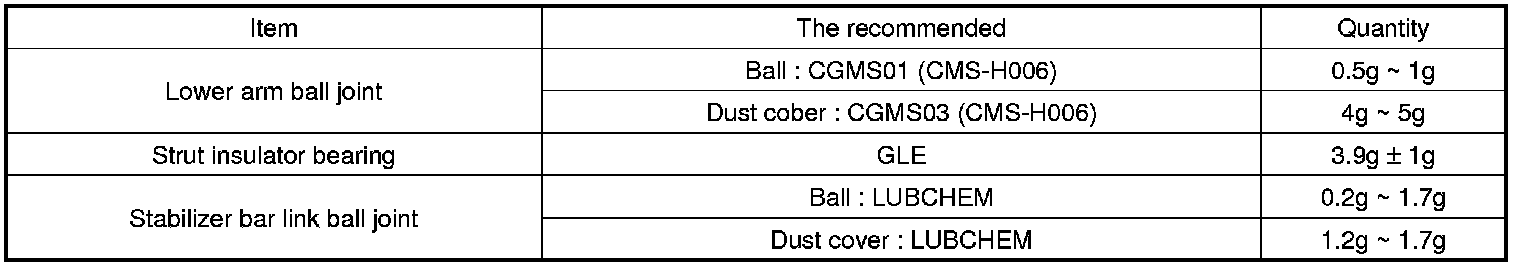

LUBRICANTS
