Home >> Kia >> 2007 >> Rondo L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Level Sensor >> Locations >> Gasoline Engine Control System

Gasoline Engine Control System

Emissions Control System Components Location:

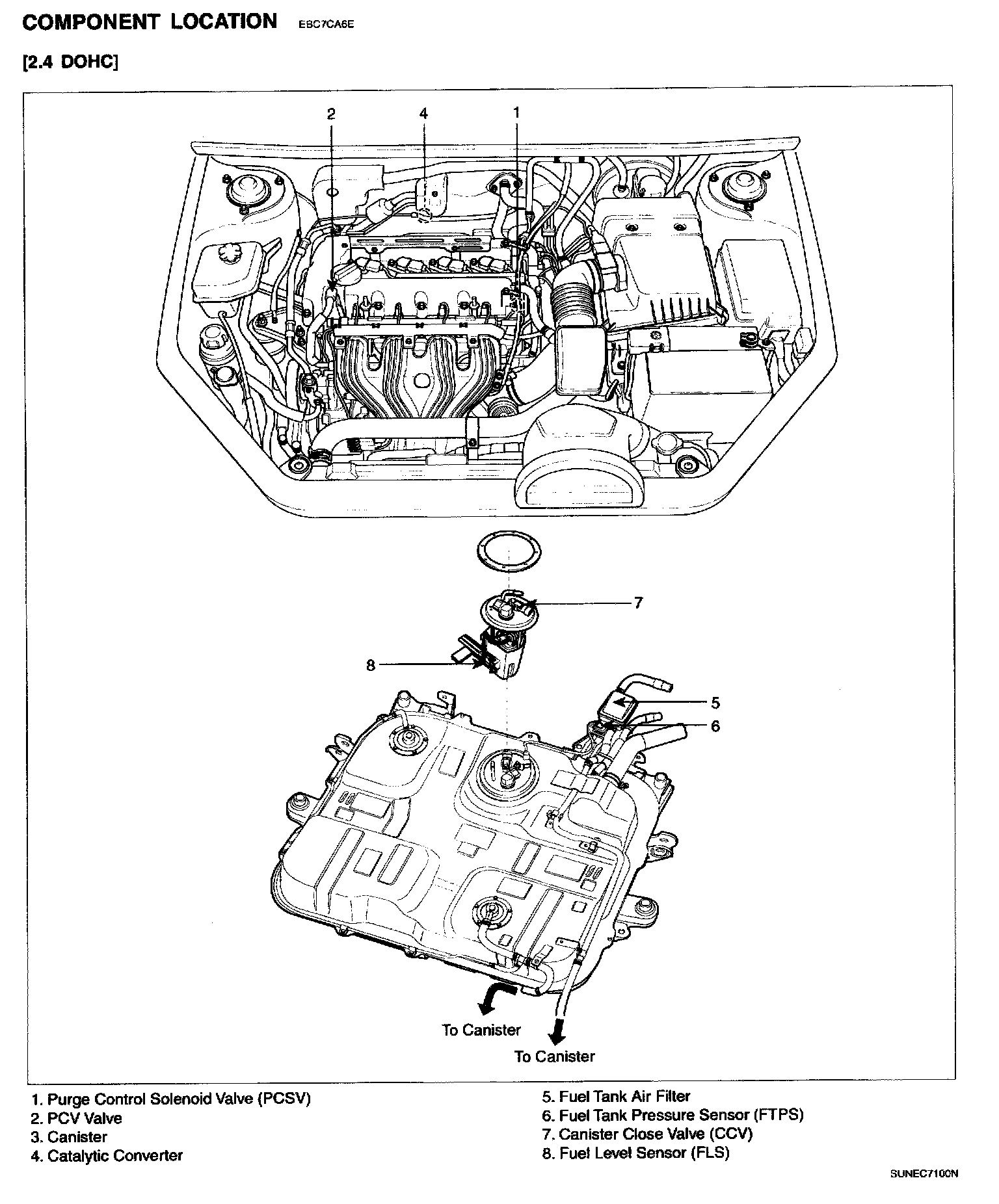

Gasoline Engine Control System Component Location:



Emissions Control System Components Location:
