Throttle Position Sensor
Throttle Position Sensor
SPECIFICATIONS
INPUT SENSORS
THROTTLE POSITION SENSOR (TPS)
> Type: Variable resistor type

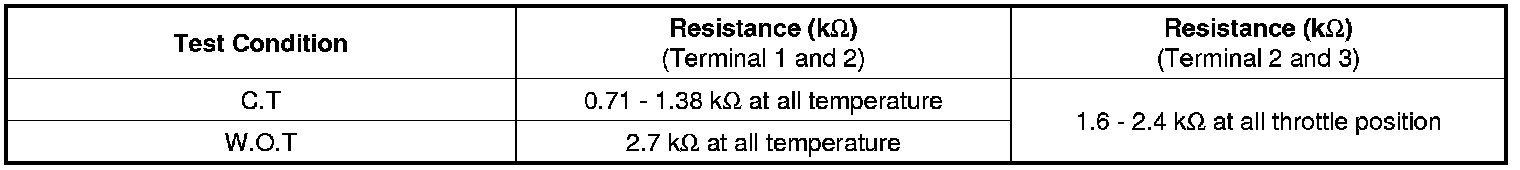

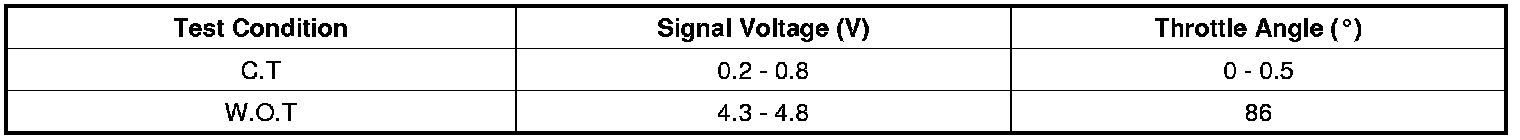

> Specification
