Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

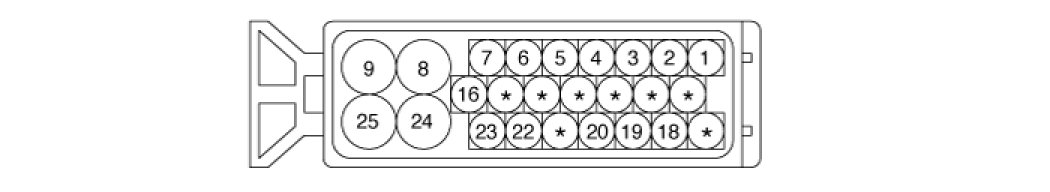

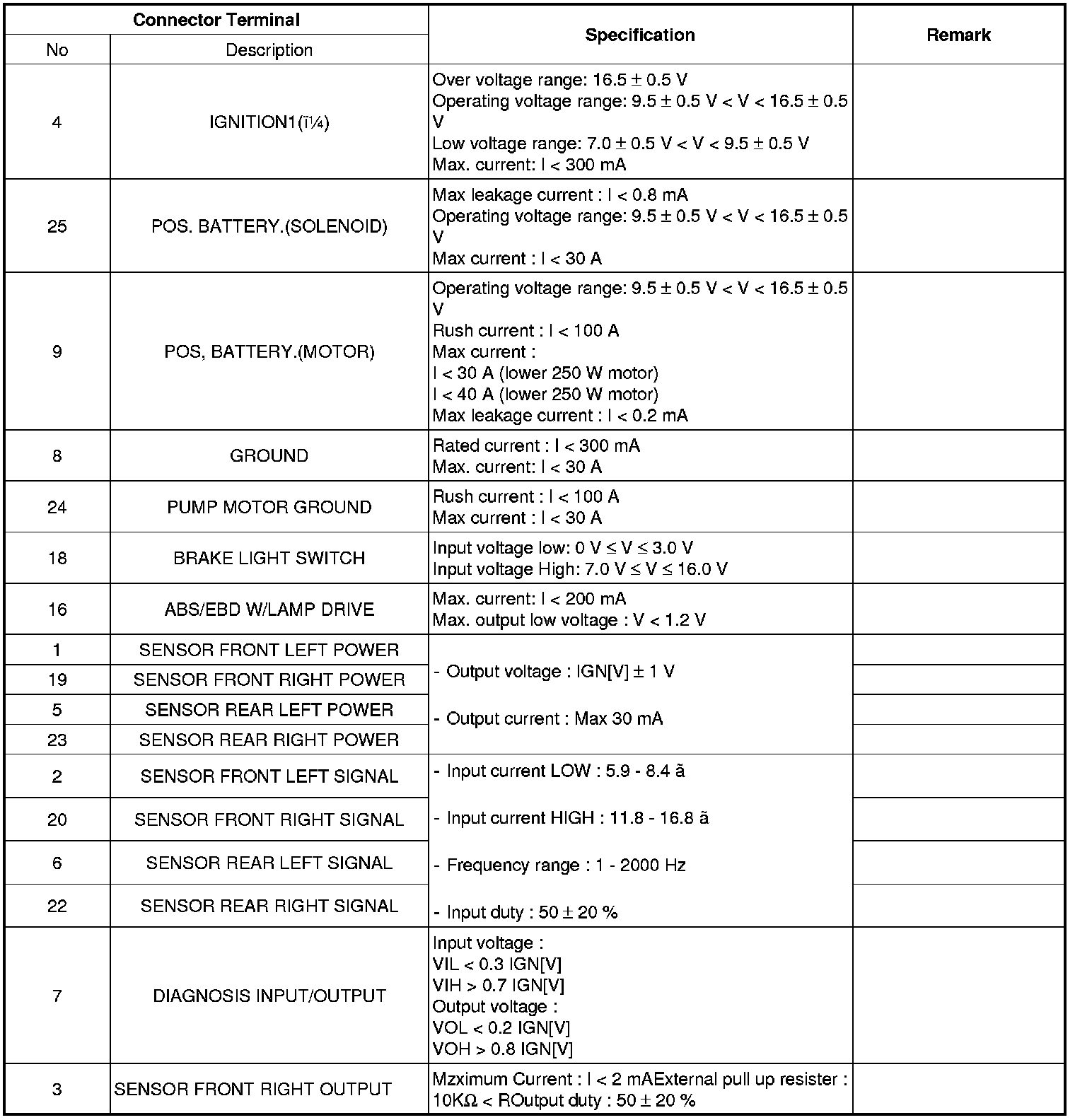

ABS CONNECTOR INPUT/OUTPUT
