Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Solenoid, A/T

Shift Solenoid, A/T

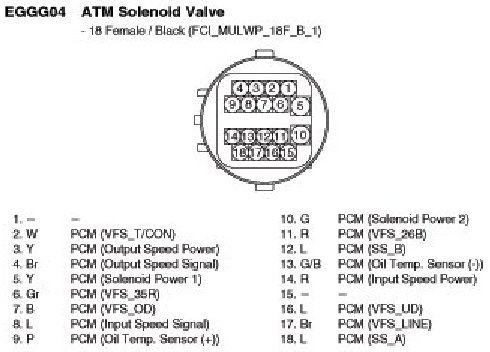

EGGG04 ATM Solenoid Valve:
