Axle Nut

Axle Nut

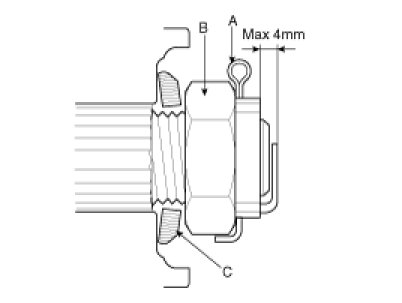

Install the washer (C), castle nut (B) and new split pin (A) to the front hub assembly.

Tightening torque Nm (kgf.m, lb-ft) 196.1 - 274.6 (20 - 28, 144.7 - 202.5)






CAUTION: The washer (C) should be assembled with convex surface outward when installing the castle nut (B) and split pin (A).
