System Specifications

SPECIFICATIONS

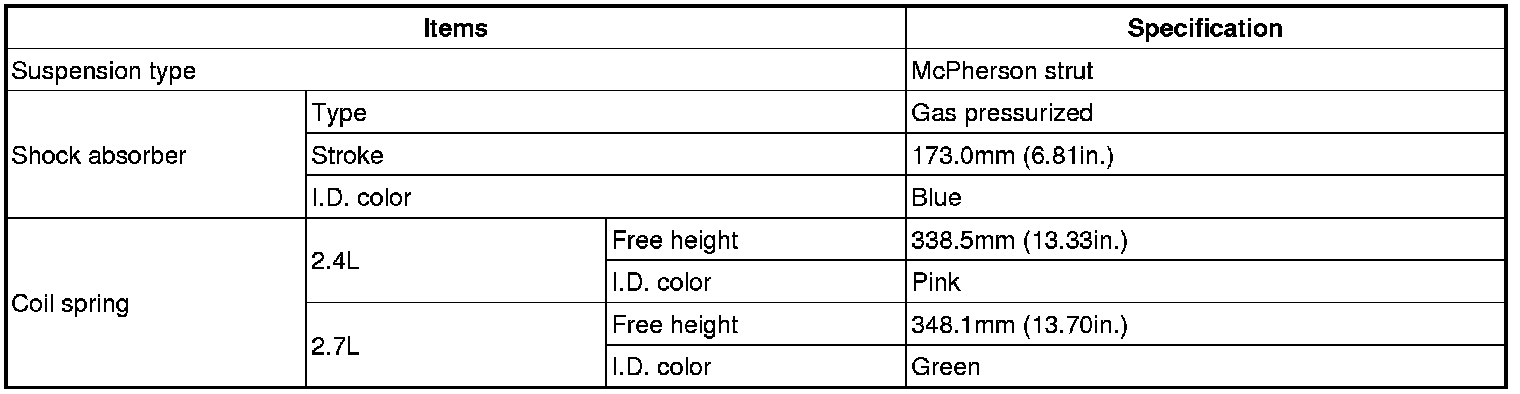

FRONT SUSPENSION

REAR SUSPENSION

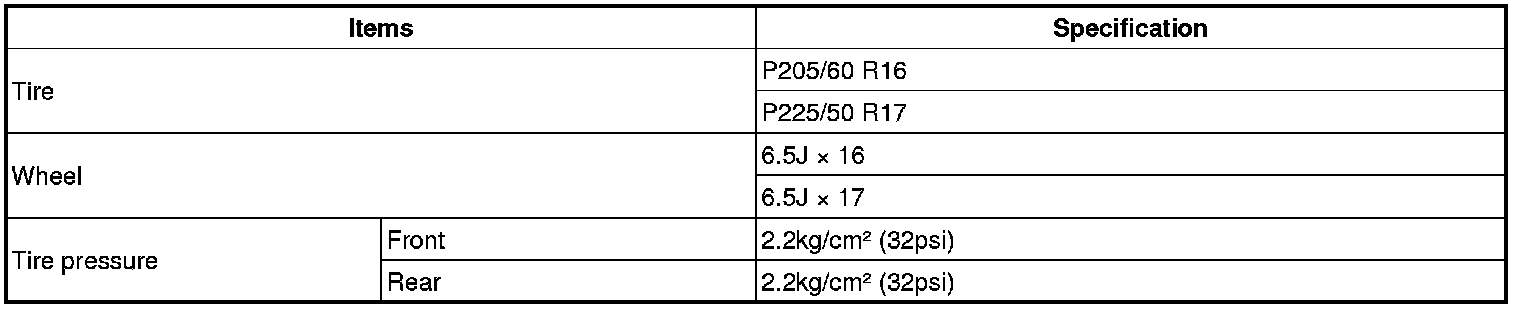

WHEEL AND TIRE

WHEEL ALIGNMENT

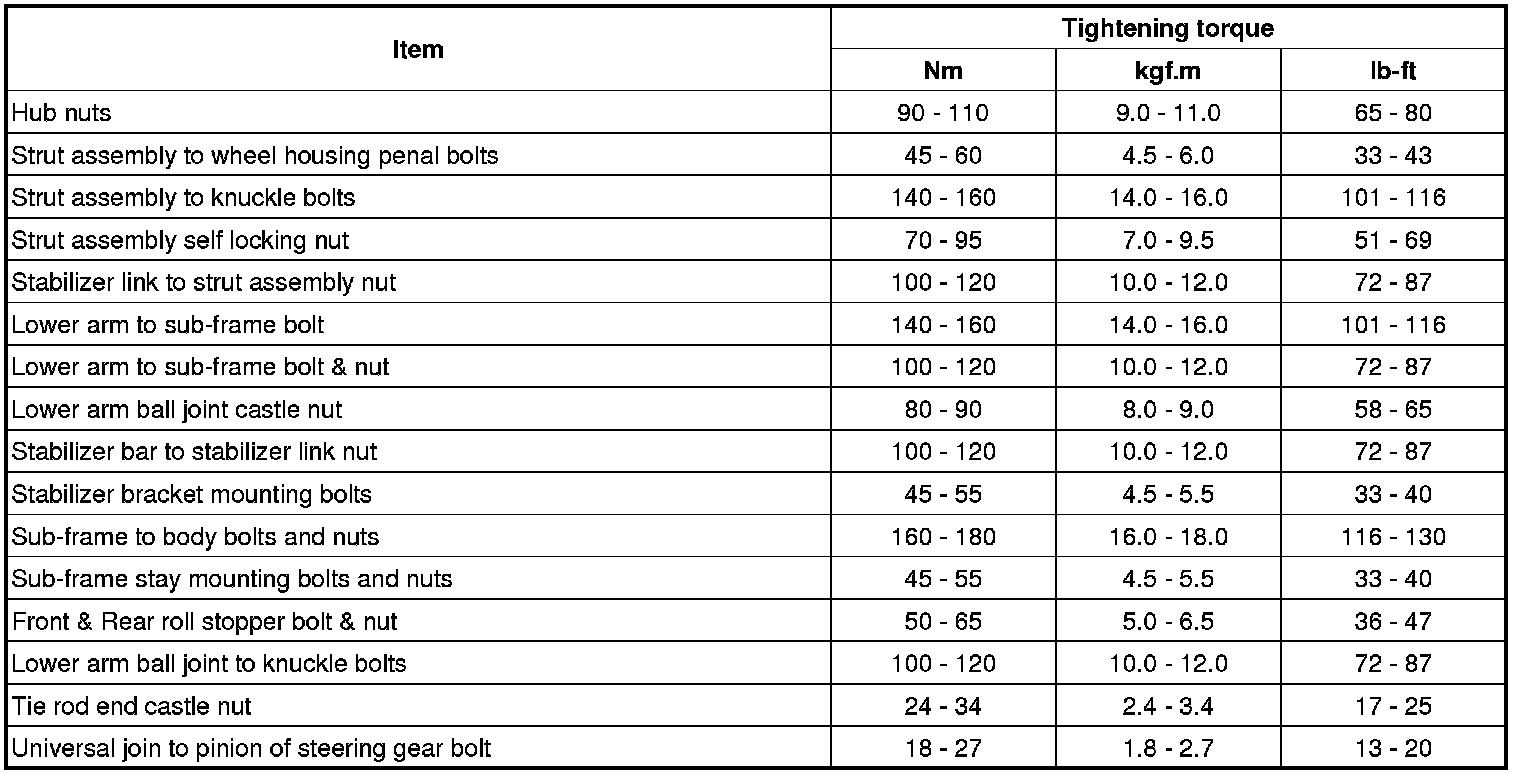

TIGHTENING TORQUE
FRONT SUSPENSION

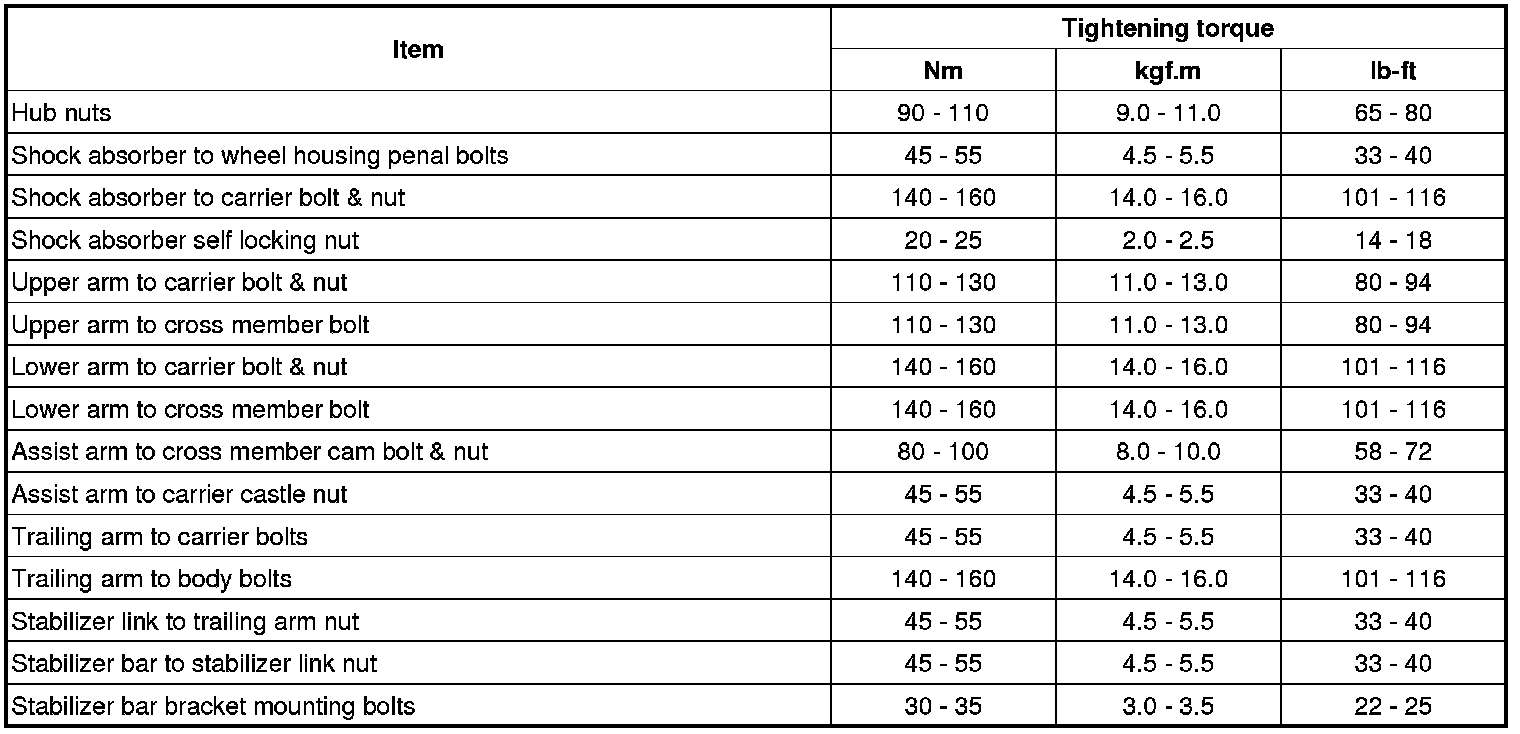

REAR SUSPENSION
