Front Fender Liner: Service and Repair

Front Wheel Arch Liner

Remove

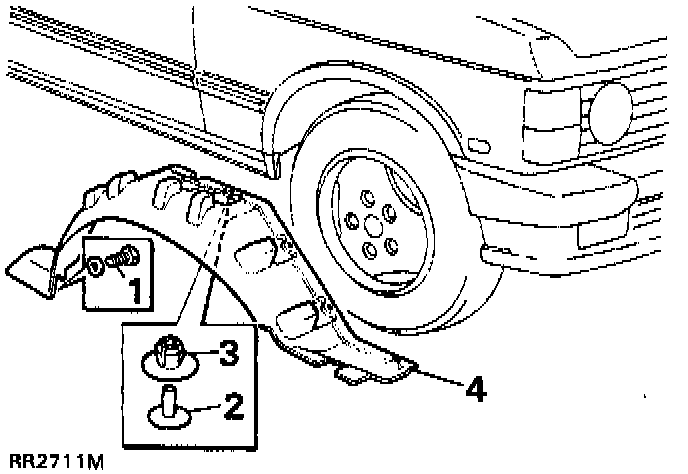

Inner Fender:

1. Remove the bolt and washer securing the rear lower edge of the liner.
2. Carefully pry out the center studs of the eight plastic clips spaced around the liner.
3. Carefully pry out the plastic clips.
4. Remove the liner.

Refit
1. Reverse the removal procedure renew the clips as necessary.
