Cruise Control Servo Cable: Adjustments

ACTUATOR LINK-SETTING

NOTE: The setting procedure outlined is at minimum throttle condition only.

1. Ensure ignition is switched OFF.

Actuator Link:

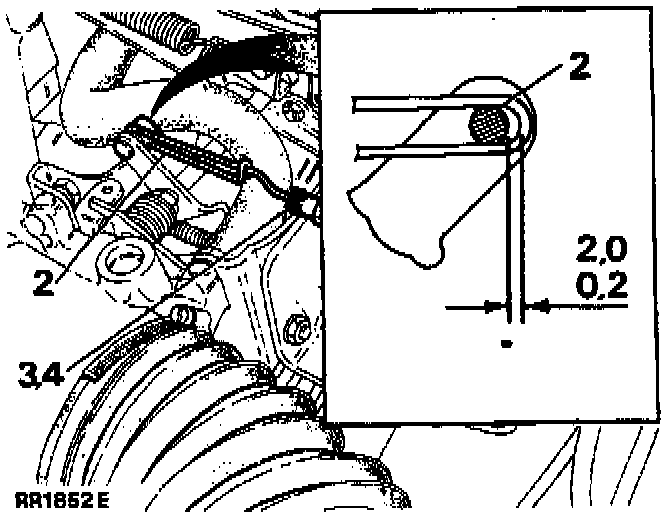

2. Check the clearance between the inside edge of the actuator link and recessed diameter of the throttle lever. Clearance should be 0.2 to 2.0 mm (0.008 to 0.080 in).

Adjust the Link
3. Remove the link from the actuator.
4. Rotate the socket joint on the actuator link clockwise or counter-clockwise to decrease or increase the operating length of the link.
5. Refit the link to the actuator and recheck the clearance between the link and lever.

Linkage:

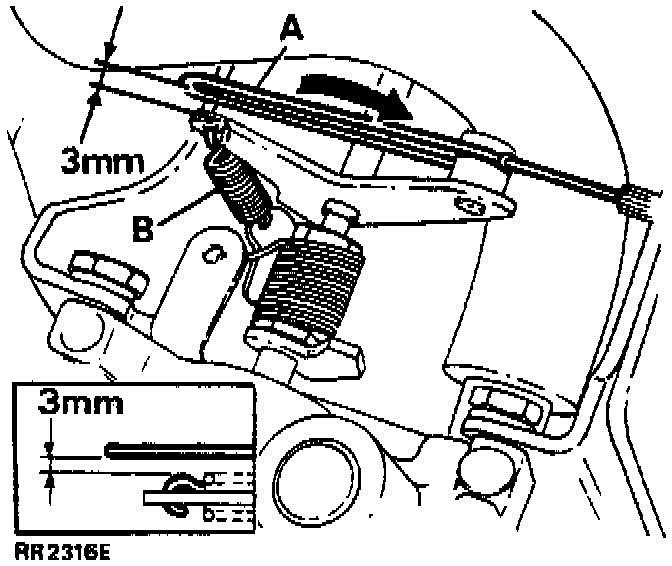

6. With the throttle fully open, check that a gap of at least 3 mm (1/8 in) exists between the side of the actuator link ("A" in illustration) and the side of the small spring which connects the inner throttle level to the outer throttle lever ("B" in illustration). Realign the actuator link by bending to achieve the correct gap if it is less than 3 mm. Recheck the clearance at closed throttle/open throttle and check that the actuator link slides smoothly in the groove of the throttle lever.
