Vacuum Pump: Service and Repair

NOTE: The vacuum pump is not a serviceable item, in the event of failure fit a new unit.

REMOVE
- Disconnect the battery negative terminal.

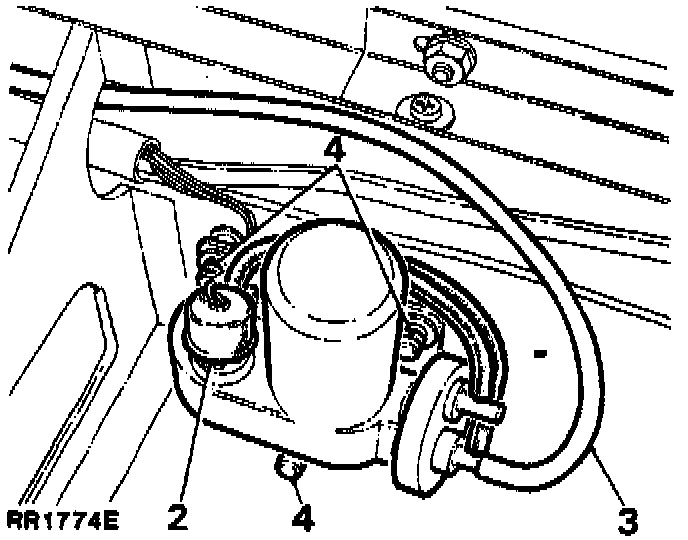

Vacuum Pump:

- Disconnect the multi-plug from the top of the vacuum pump.
- Disconnect the vacuum feed hose from the vacuum pump.
- Withdraw the three vacuum pump rubber mountings from the left hand valance/inner fender assembly.
- Withdraw the pump from the engine compartment.

REFIT
- Reverse the removal procedure ensuring that the hose and electrical connections are secure.
