Blower Motor Resistor: Service and Repair

REMOVE
- Remove the heater unit.

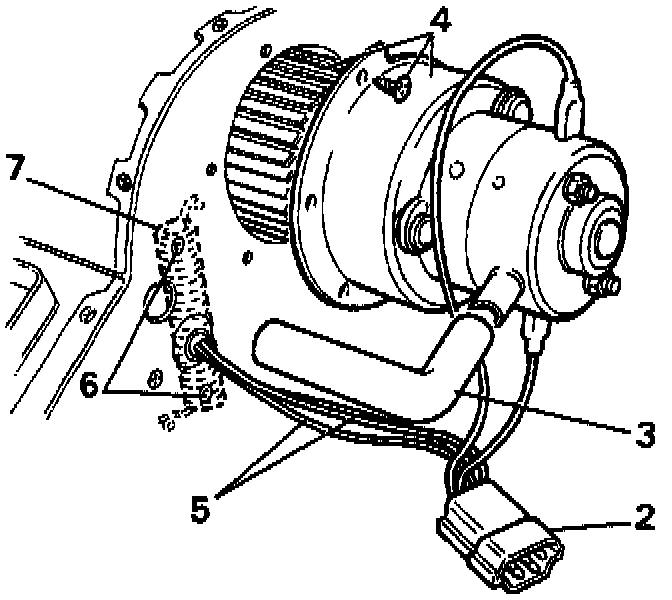

Blower Resistance Unit:

- Disconnect the electrical leads at the multiplug.
- Disconnect the air cooling hose.
- Remove the fan motor and fan assembly.
- Remove the electrical leads from the multiplug.
- Drill out the two pop rivets securing the resistance unit.
- Withdraw the resistance unit complete with leads.

REFIT
- Reverse the removal instructions.
