VIN Locations

Early 1990 vehicles had an additional label containing the Vehicle Identification Number in both bar code and digital form.

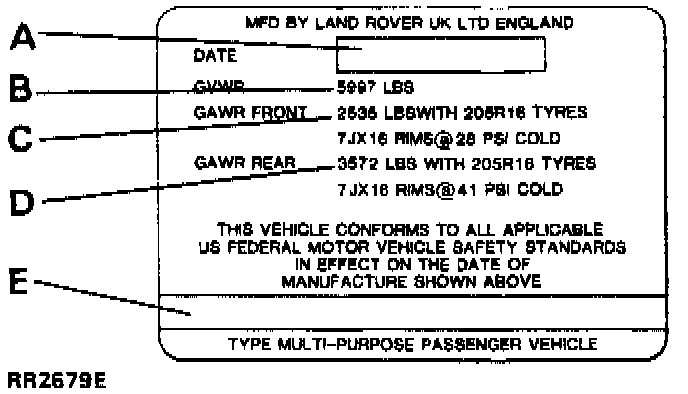

KEY TO VEHICLE IDENTIFICATION LABEL

Vehicle Identification Label:

A. Month and year of manufacture
B. Gross vehicle weight rating
C. Gross axle weight rating for front axle
D. Gross axle weight rating for rear axle
E. Vehicle identification number (minimum of seventeen digits)

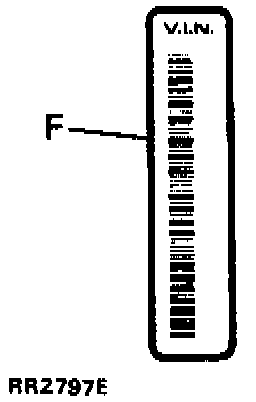

VIN Bar Code:

F. Vehicle identification number bar code

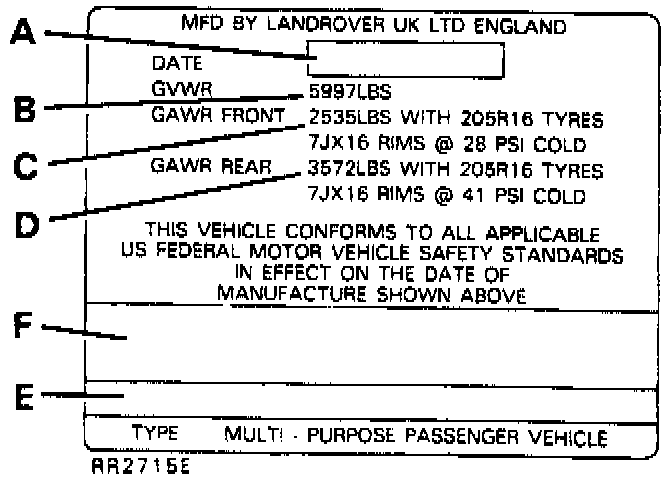

Later 1990 vehicles had the Vehicle Identification Number bar code incorporated in the VIN label.
