Land Rover
>>
1990
>>
Range Rover (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Wheel Hub
>>
Rear
>>
With ABS
With ABS

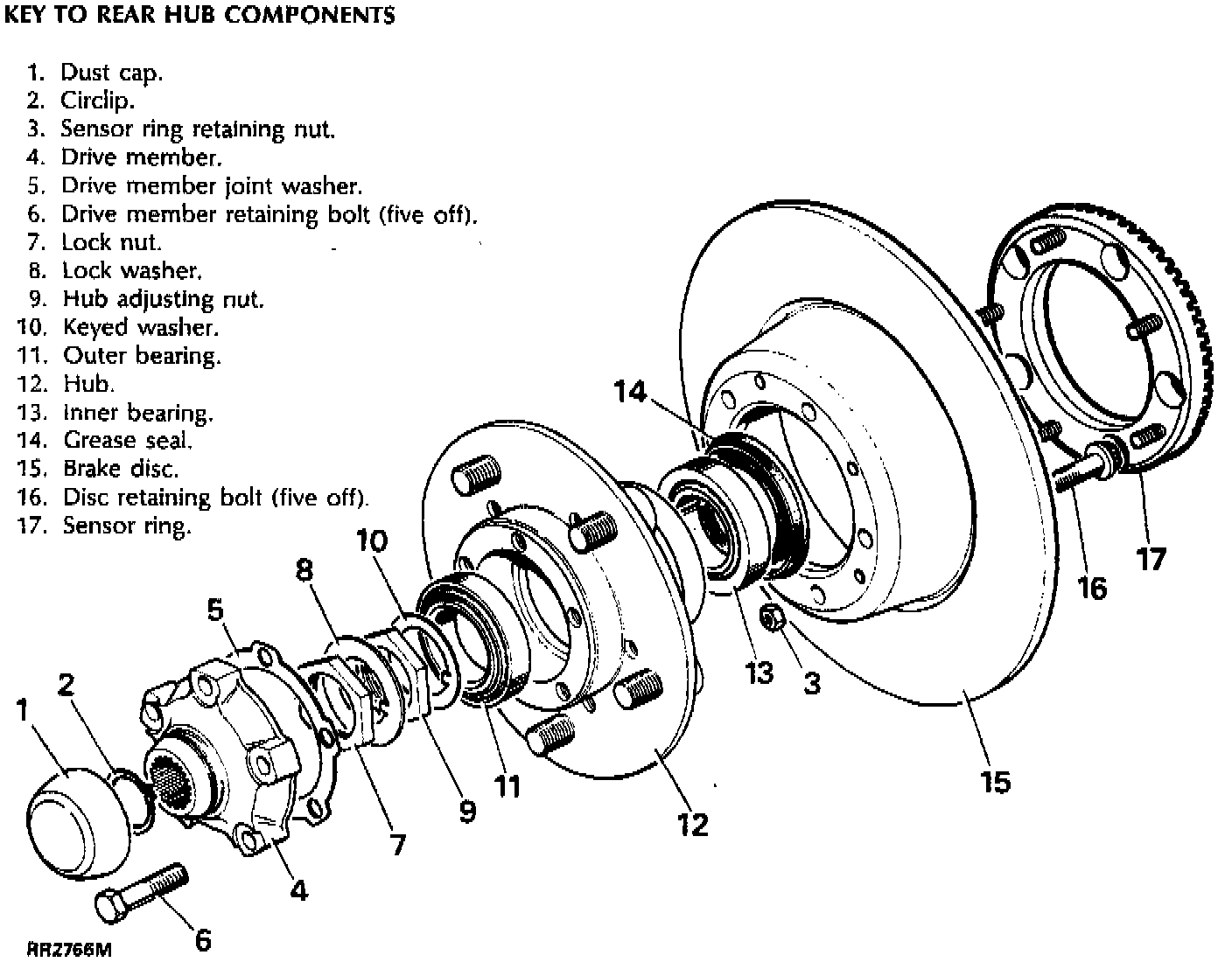

Rear Hub Components With ABS:
