Land Rover
>>
1990
>>
Range Rover (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Wheel Hub
>>
Rear
>>
Without ABS
Without ABS

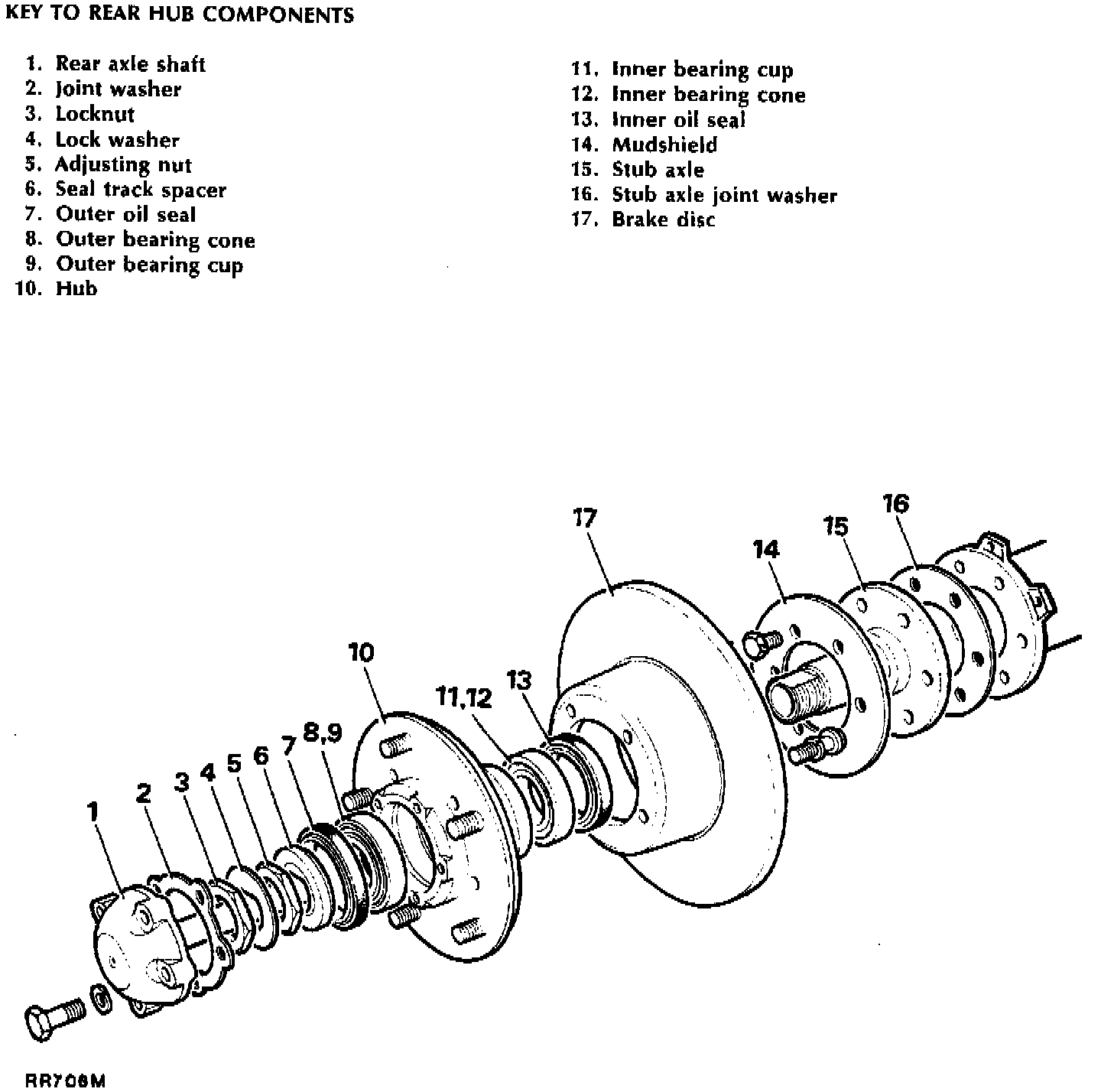

Rear Hub Components Non ABS:
