Land Rover
>>
1990
>>
Range Rover (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Locations
>>
Ground Locations
Ground Locations

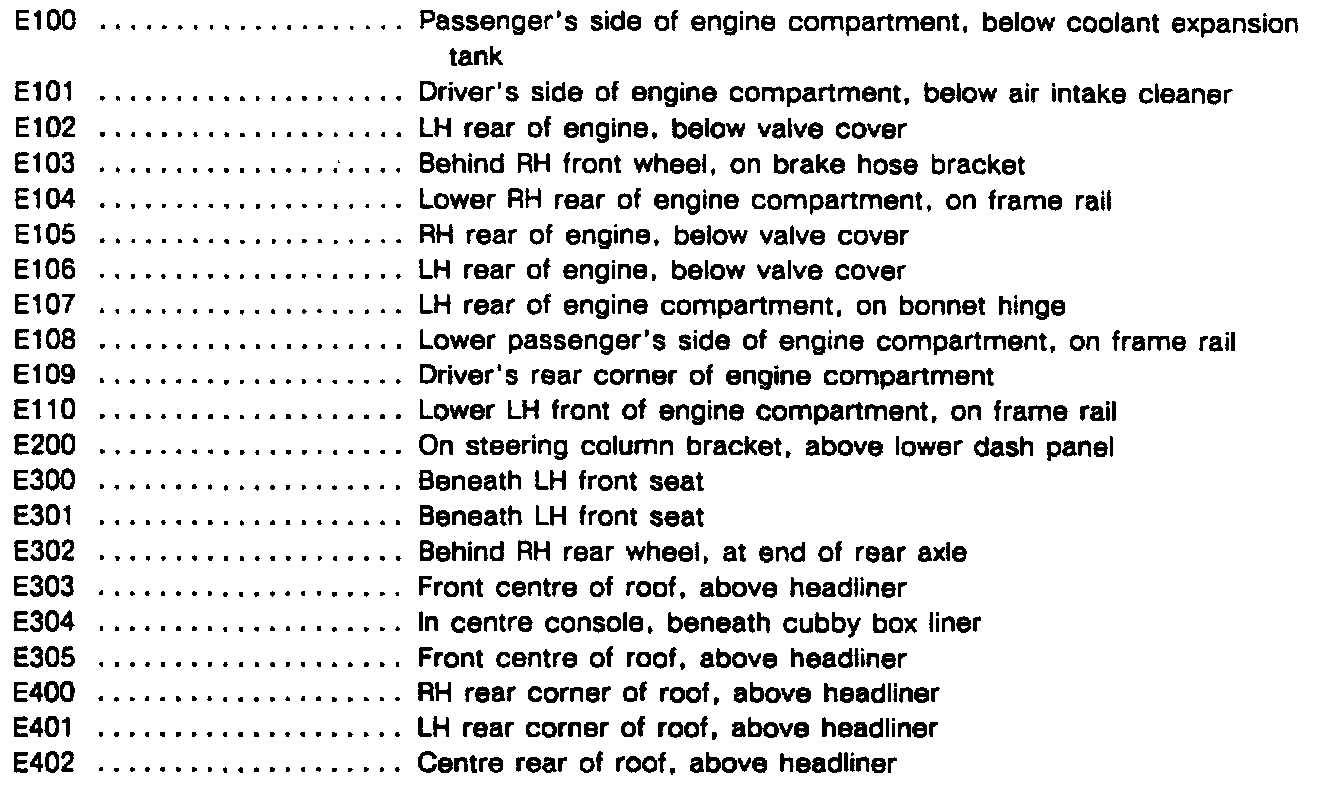

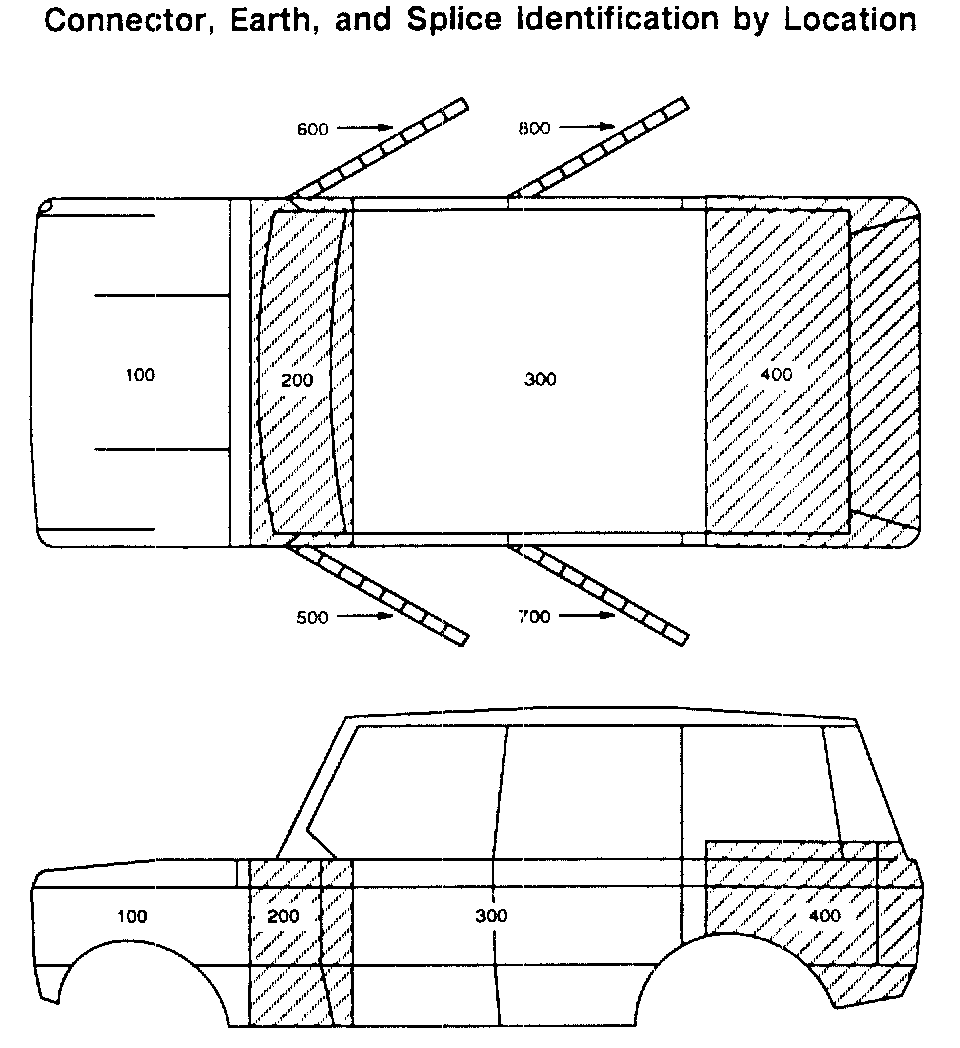

Connector, Ground, And Splice Locations On Vehicle:
E100 - E402:
